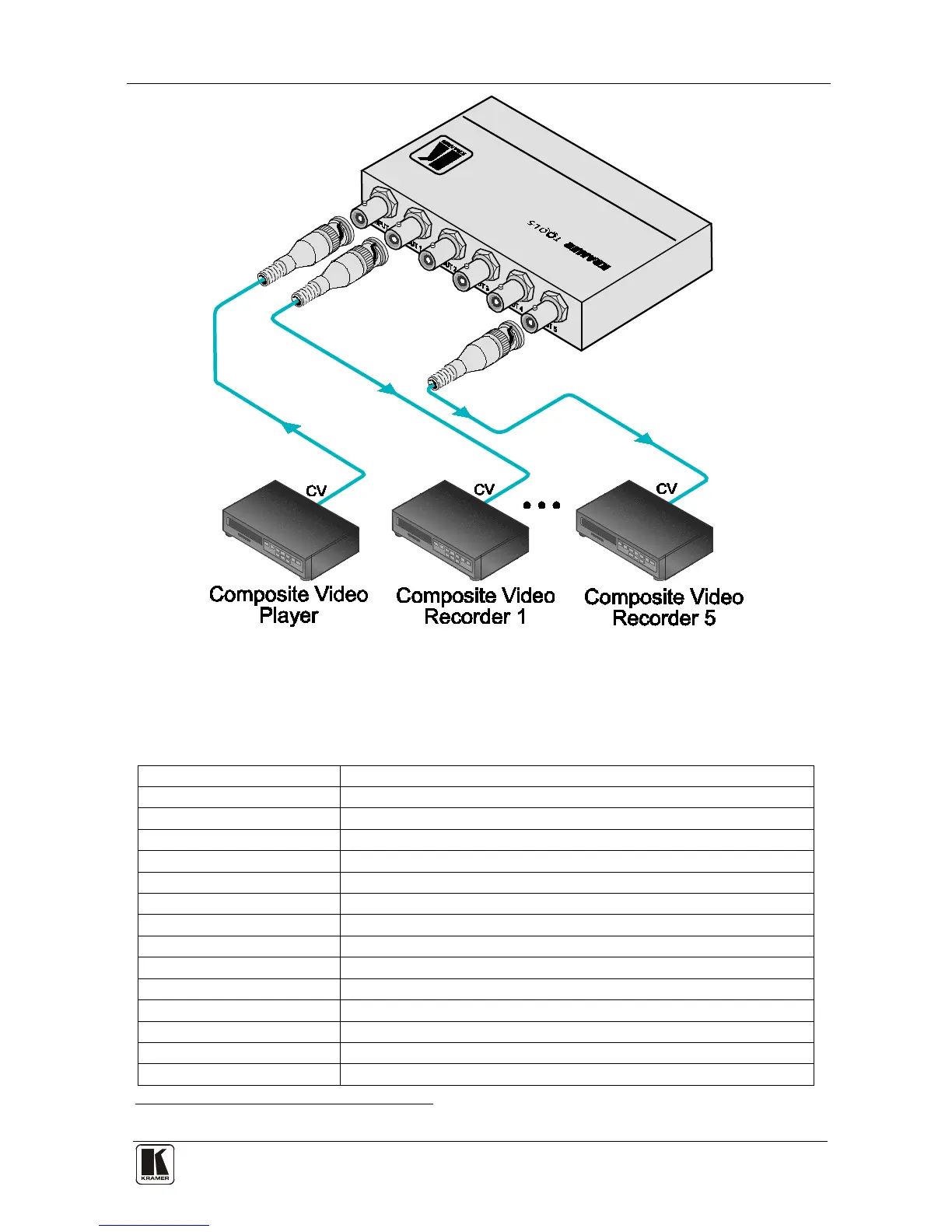

Figure 14: Connecting the 105VB 1:5 High Resolution Video DA
9.2 Technical Specifications
Table 14 includes the technical specifications
1
Table 14: Technical Specifications of the 105VB 1:5 High Resolution Video DA
:
INPUT: 1 video, 1Vpp/75 Ω on a BNC connector.
OUTPUTS: 5 video, 1Vpp/75 Ω on BNC connectors.
MAX. VIDEO OUTPUT: 2Vpp.
VIDEO BANDWIDTH (-3dB): 400MHz.
DIFF. GAIN: 0.1%.
DIFF. PHASE: 0.1 Deg.
K-FACTOR: <0.05%
S/N RATIO: 80dB
CONTROL: Up to +6dB
COUPLING: AC
POWER SOURCE: 12V DC, 100mA
DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H
WEIGHT: 0.3kg (0.6lbs) approx.
ACCESSORIES: Power supply, mounting bracket
OPTIONS: RK-3T 19” rack adapter
1 Specifications are subject to change without notice
