The 105V, 1:5 High Resolution Video DA
16
8 The 105V, 1:5 High Resolution Video DA
The 105V is a high performance distribution amplifier for composite video
signals. It accepts one input, provides correct buffering and isolation and
distributes the signal to five identical outputs.
In particular, the 105V:
• Has a bandwidth of 400MHz to ensure transparent operation even in the
most critical applications
• Has RCA connectors
• Has video level (Gain) control
• Is 12V DC fed

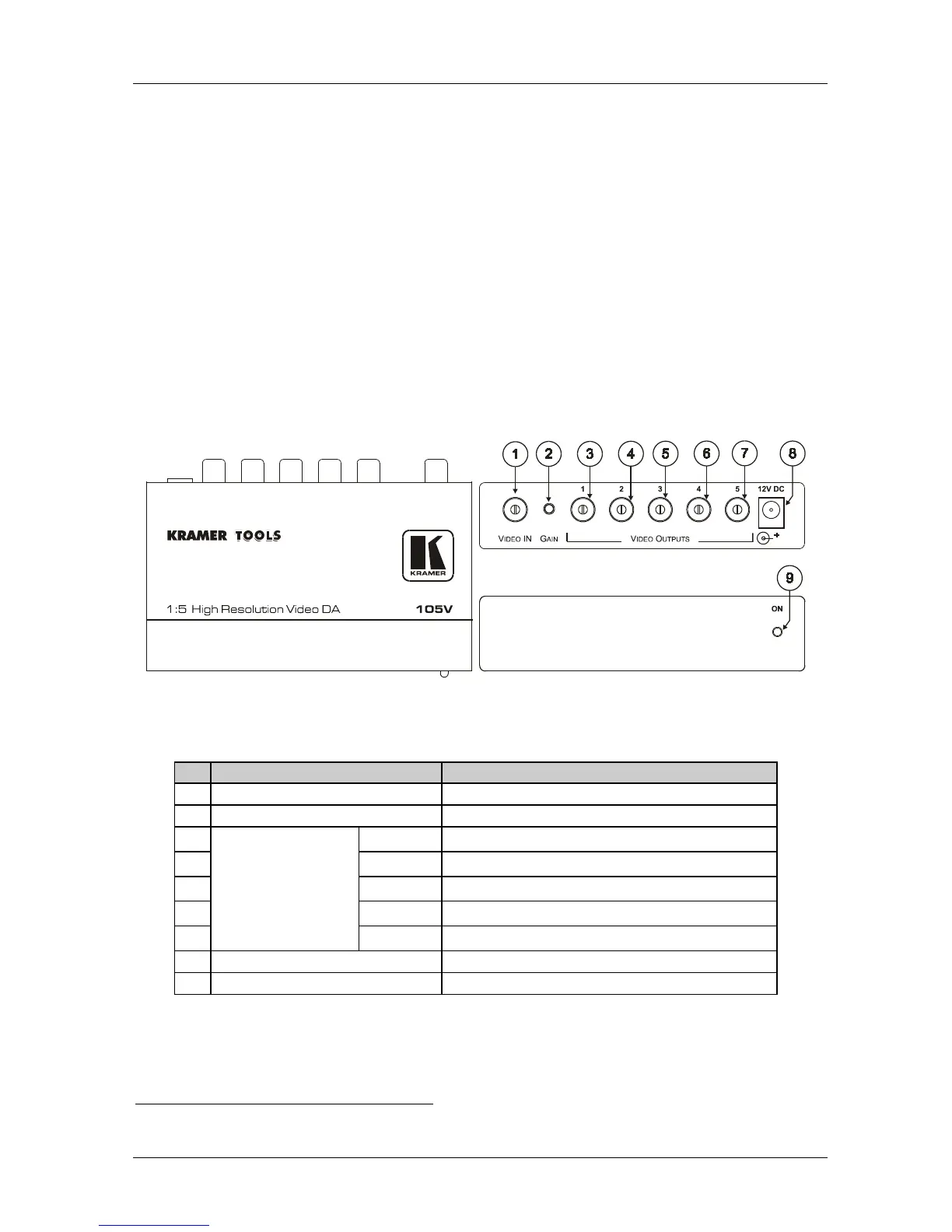

Figure 10 and Table 10 define the 105V
1:5 High Resolution Video DA
Figure 10: 105V 1:5 High Resolution Video DA
Table 10: Features and Functions of the 105V 1:5 High Resolution Video DA
#
Feature
Function
1 VIDEO IN RCA Connector Connect to the composite video source
2 GAIN Trimmer
1
Control the gain of the video outputs
3 VIDEO OUTPUT
RCA Connectors
OUT 1 Connect to composite video acceptor 1
4 OUT 2 Connect to composite video acceptor 2
5 OUT 3 Connect to composite video acceptor 3
6 OUT 4 Connect to composite video acceptor 4
7 OUT 5 Connect to composite video acceptor 5
8 12V DC +12V DC connector for powering the unit
9 ON LED Illuminates when the machine is powered
1 Insert a screwdriver into the small hole and carefully rotate it to adjust the audio level
