KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your 103AV, 1:3 Audio-Stereo / Video Distributor
4 Your 103AV, 1:3 Audio-Stereo / Video Distributor
The 103AV is a compact distribution amplifier for composite video and
unbalanced stereo audio signals. It will take one input, provide correct
buffering and isolation, and distribute the signal to three identical outputs. The
103AV:
• Has a high video bandwidth of 320MHz to ensure transparent operation
even in the most critical applications
• Uses RCA connectors for composite video, and 3.5mm mini connectors
for the unbalanced stereo audio
• Includes audio and video level (gain) controls
• Is 12V DC fed
Figure 1 and Table 1 define the 103AV
1:3 Audio-Stereo / Video DA:

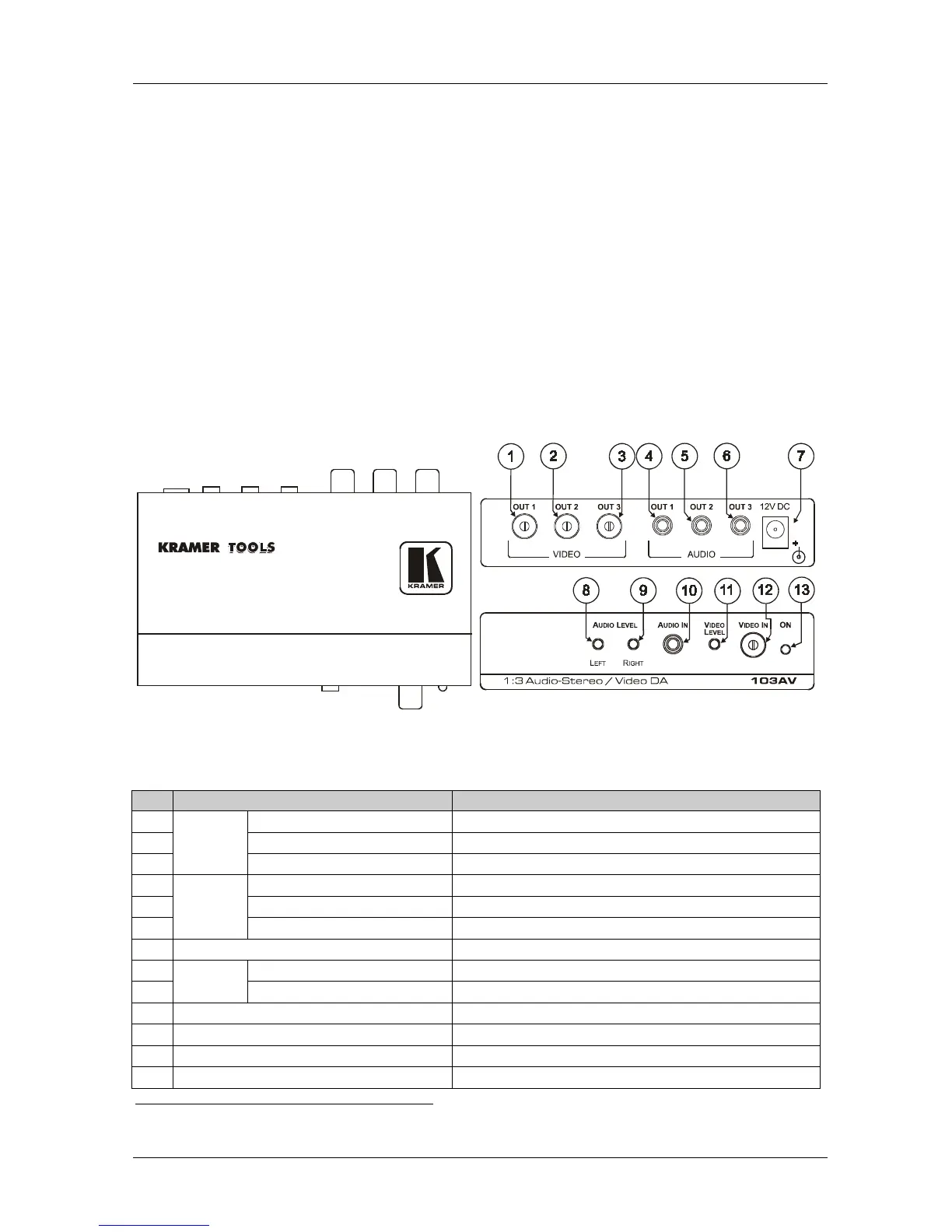

Figure 1: 103AV Audio-Stereo / Video DA
Table 1: Features and Functions of the 103AV Audio-Stereo / Video DA
1 VIDEO OUT 1 RCA Connector Connects to the video acceptor 1
2 OUT 2 RCA Connector Connects to the video acceptor 2
3 OUT 3 RCA Connector Connects to the video acceptor 3
4 AUDIO OUT 1 3.5mm Mini Connector Connects to the unbalanced stereo audio acceptor 1
5 OUT 2 3.5mm Mini Connector Connects to the unbalanced stereo audio acceptor 2
6 OUT 3 3.5mm Mini Connector Connects to the unbalanced stereo audio acceptor 3
7 12V DC +12V DC connector for powering the unit
8 AUDIO
LEVEL
LEFT Trimmer
1
Adjusts the left channel audio gain
9 RIGHT Trimmer
Adjusts the right channel audio gain
10 AUDIO IN Mini Connector Connects to the unbalanced stereo audio source
11 VIDEO LEVEL Trimmer Adjusts the gain of the video outputs
12 VIDEO IN RCA Connector Connects to the video source
13 ON LED Illuminates when the machine is powered
1 Insert a screwdriver into the small hole and carefully rotate it to adjust the audio level
