Your 105A, 1:5 Stereo Audio DA
10
6 Your 105A, 1:5 Stereo Audio DA
The 105A is a high performance distribution amplifier for unbalanced stereo
audio signals using 3.5mm mini connectors. It accepts one stereo input and
distributes the signal to five identical stereo outputs.
The 105A:
• Includes audio left and right level (Gain) controls
• Has an S/N ratio of 80dB (unweighted)
• Is 12V DC fed

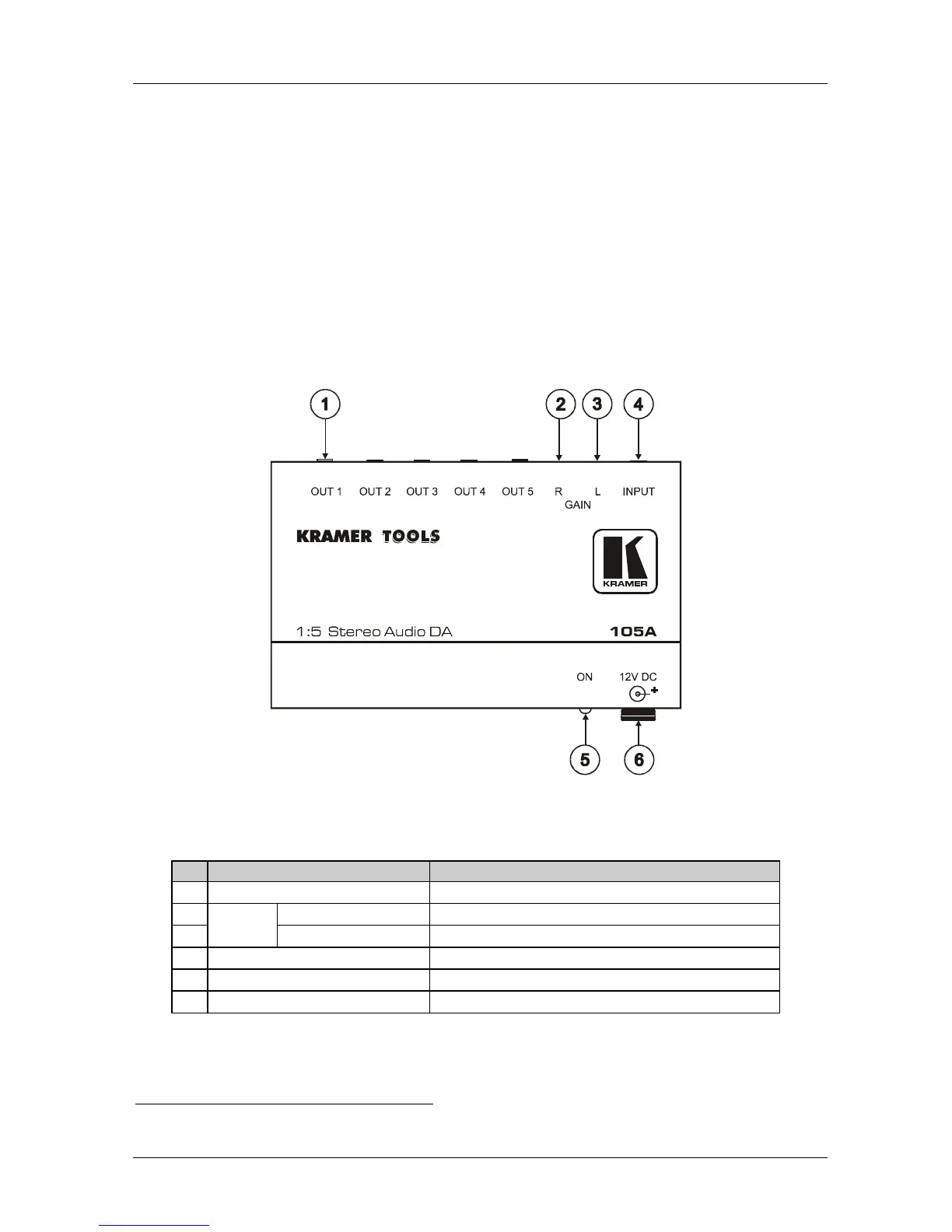

Figure 5 and Table 5 define the 105A
1:5 Stereo Audio DA
Figure 5: 105A 1:5 Stereo Audio DA
Table 5: Features and Functions of the 105A 1:5 Stereo Audio DA
#
Feature
Function
1 OUT Mini Connector Connects to the audio acceptors (from 1 to 5)
2 GAIN R Trimmer
1
Adjusts the right channel audio gain
3 L Trimmer
1
Adjusts the left channel audio gain
4 INPUT Mini Connector Connects to the stereo/balanced mono audio source
5 ON LED Illuminates when the machine is powered
6 12V DC +12V DC connector for powering the unit
1 Insert a screwdriver into the small hole and carefully rotate it to adjust the audio level
