8.1 Connecting the 105V 1:5 High Resolution Video DA
To connect your 105V 1:5 High Resolution Video DA, as illustrated in Figure
11, do the following:
1. Connect a composite video source (for example, a composite video player) to
the VIDEO IN RCA connector.
2. Connect the VIDEO OUTPUT RCA connectors to up to 5 composite video
acceptors (for example, composite video recorders)
1
3. Connect the power adapter to the power socket, and connect the adapter to the
mains electricity.
.
4. If required, adjust the GAIN level trimmer
2
.

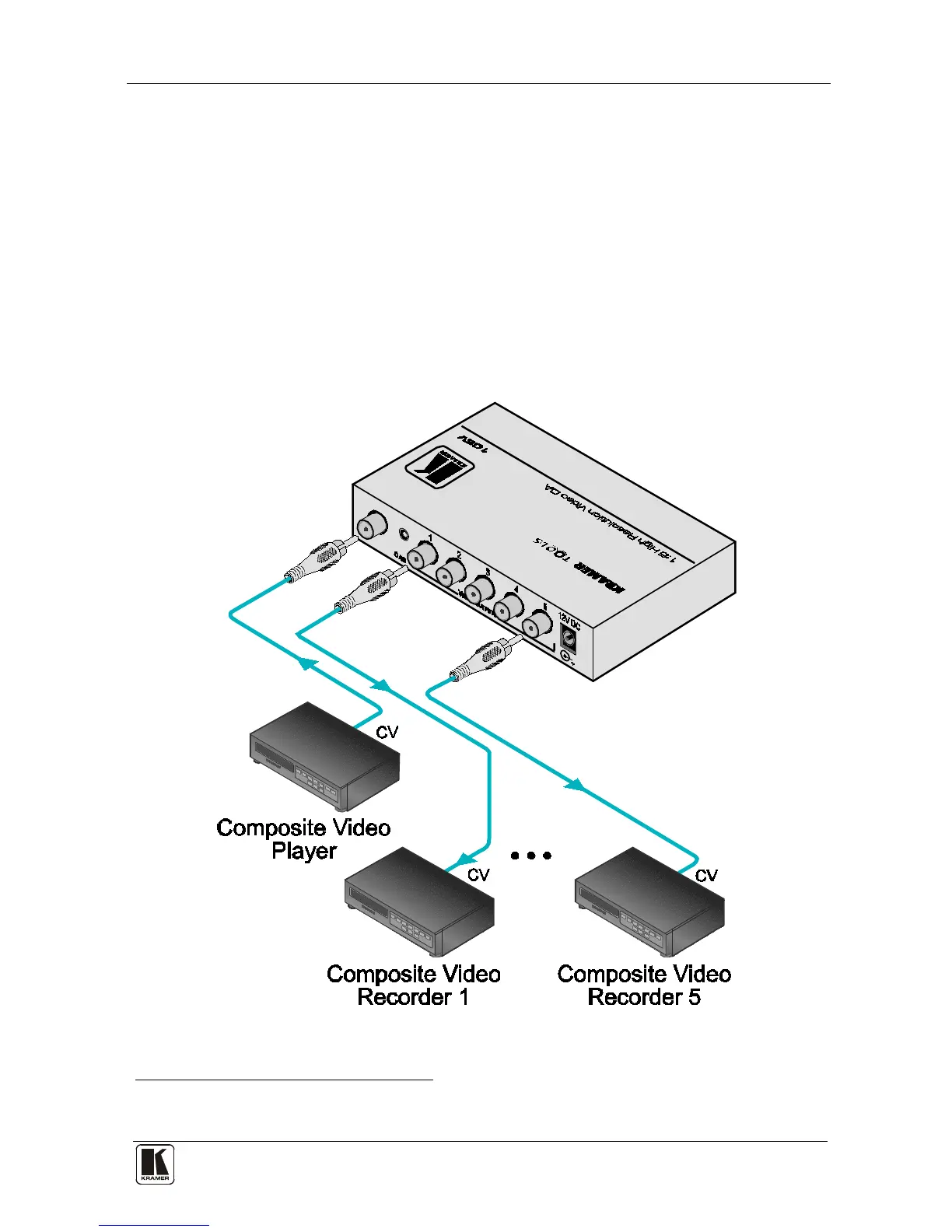

Figure 11: Connecting the 105V 1:5 High Resolution Video DA
1 You do not have to connect all the outputs
2 Insert a screwdriver into the small hole and carefully rotate it to adjust the level
