4.1 Connecting the 103AV 1:3 Audio-Stereo / Video DA
To connect the 103AV 1:3 Audio-Stereo / Video DA, as the example in Figure
2 illustrates, do the following:
1. Connect a video and audio source (for example, a video player) to the VIDEO
IN RCA and AUDIO IN mini connectors, respectively.
2. Connect the VIDEO OUT RCA connectors and the AUDIO OUT mini
connectors to up to 3 video and audio acceptors
1
3. Connect the power adapter to the power socket, and connect the adapter to the
mains electricity.
, respectively (for example,
video recorders).
4. If required, adjust the level trimmers
2
.

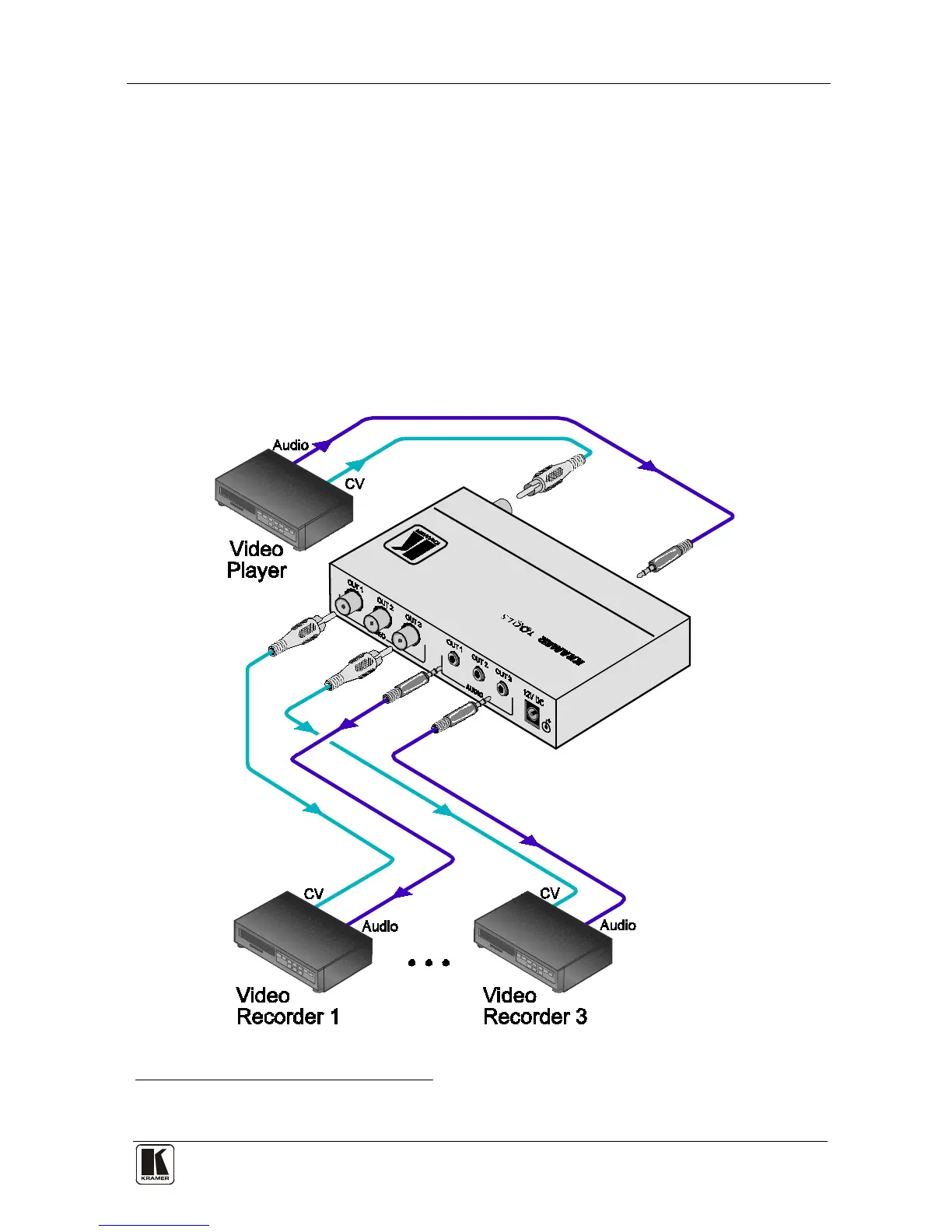

Figure 2: Connecting the 103AV 1:3 Audio-Stereo / Video DA
1 You do not have to connect all the outputs
2 Insert a screwdriver into the small hole and carefully rotate it to adjust the level
