7 Your 105S, 1:5 High Resolution s-Video DA
The 105S is a high performance s-Video (Y/C) distribution amplifier. It
accepts one input, provides correct buffering and isolation, and distributes the
signal to five identical outputs using 4-pin s-Video connectors.
The 105S:
• Includes chroma (C) and luma (Y) gain controls
• Has a bandwidth (Y) of 230MHz to ensure transparent operation even in
the most critical applications
• Is 12V DC fed
Figure 7 and Table 7 define the 105S
1:5 High Resolution s-Video DA:

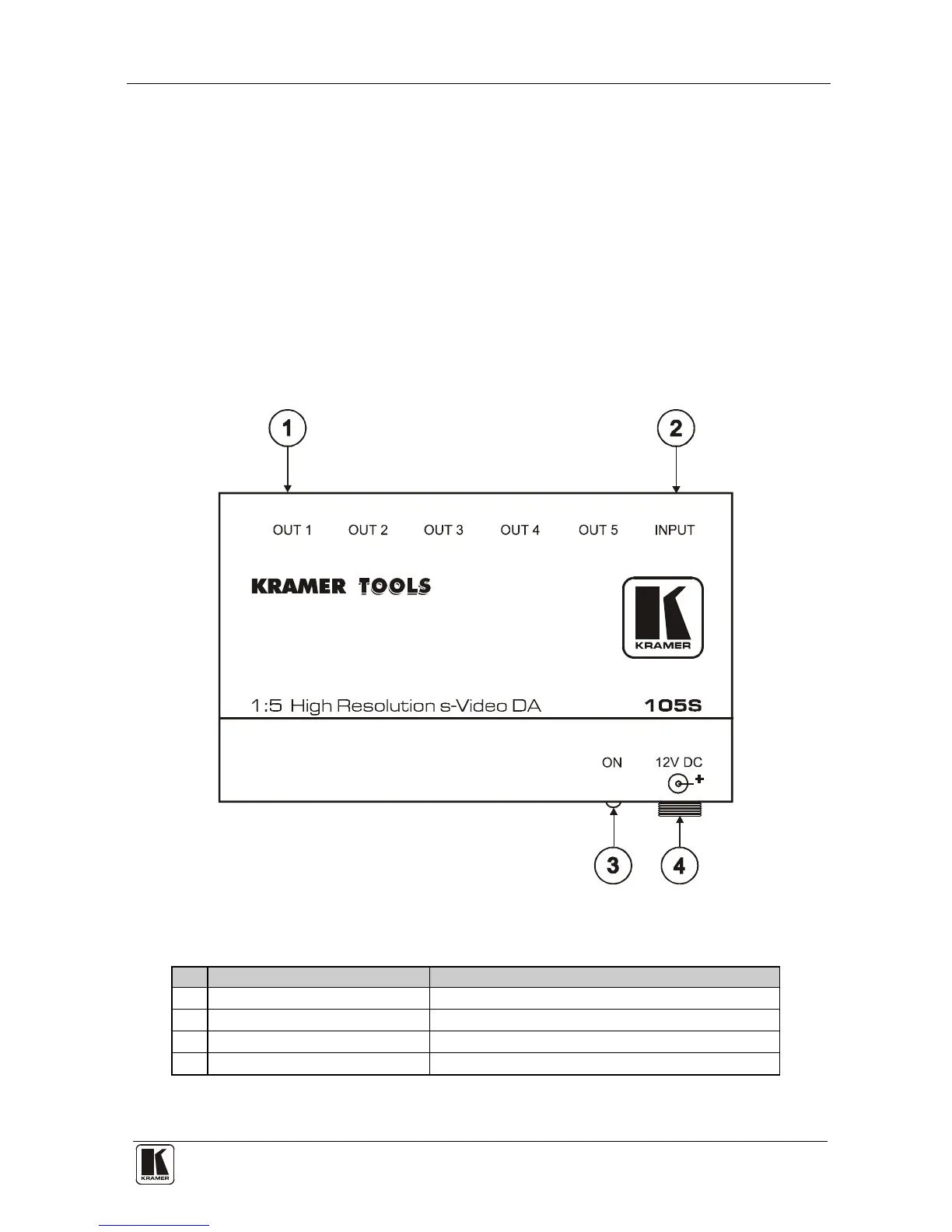

Figure 7: 105S 1:5 High Resolution s-Video DA
Table 7: Features and Functions of the 105S 1:5 High Resolution s-Video DA
1 OUT 4-pin Connectors Connects to the s-Video acceptors (from 1 to 5)
2 INPUT 4-pin Connector Connects to the s-Video source
3 ON LED Illuminates when the machine is powered
4 12V DC +12V DC connector for powering the unit
