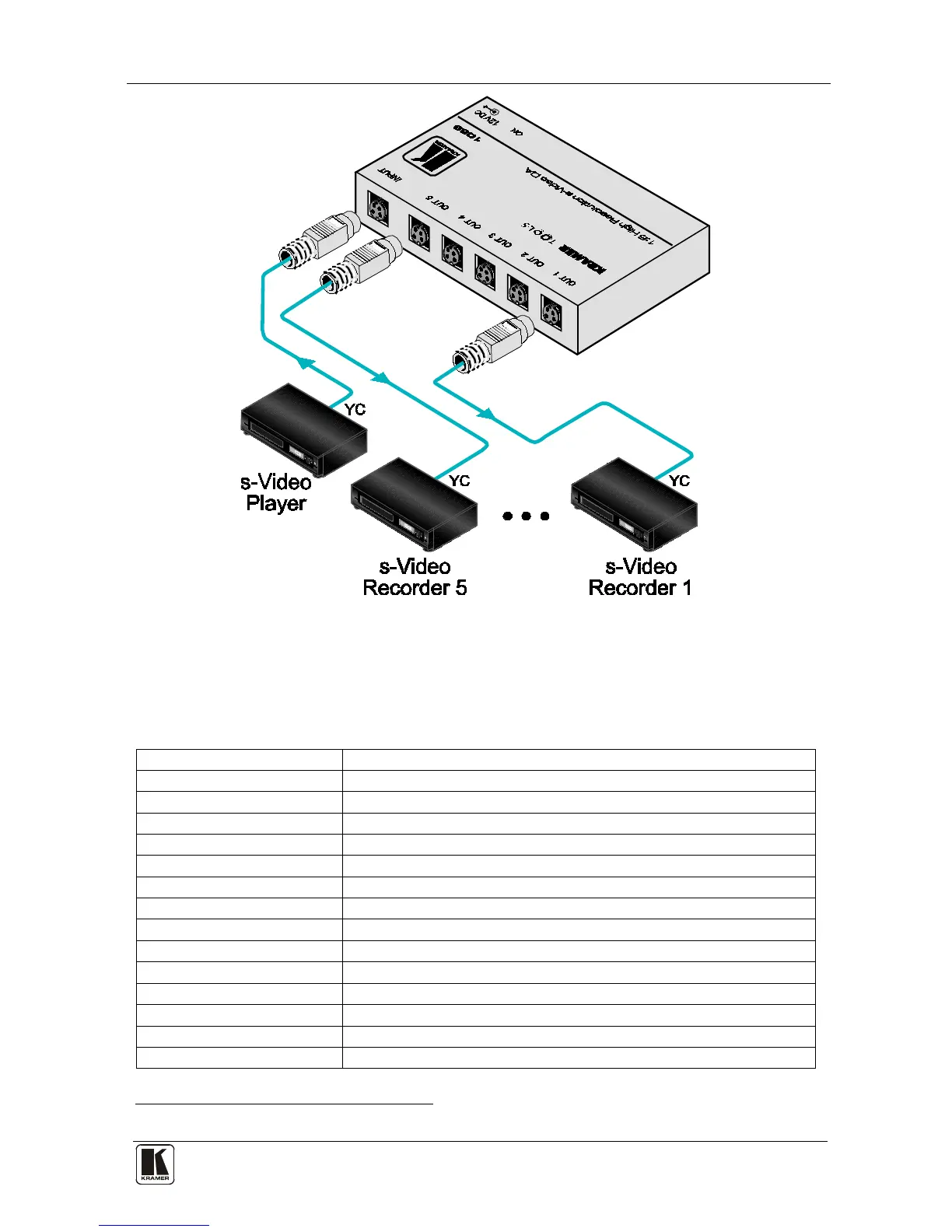

Figure 9: Connecting the 105S 1:5 High Resolution s-Video DA
7.2 Technical Specifications
Table 9 includes the technical specifications
1
Table 9: Technical Specifications of the 105S 1:5 High Resolution s-Video DA
:
INPUT: 1 s-Video: 1Vpp/75 Ω (Y), 0.3Vpp/75Ω (C), on a 4-pin connector
OUTPUTS: 5 s-Video: 1Vpp/75 Ω (Y), 0.3Vpp/75Ω (C), on 4-pin connectors
MAX. VIDEO OUTPUT: 2Vpp (Y)
VIDEO BANDWIDTH (-3dB): 230MHz (Y)
DIFF. GAIN: 0.08%
DIFF. PHASE: 0.12Deg
K-FACTOR: <0.05%
S/N RATIO: 72dB
CONTROL: Luma (Y) Level: -4.5dB to +1.8dB, Chroma (C) Level: -3.5dB to +18dB
COUPLING: AC
POWER SOURCE: 12V DC, 100mA
DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H
WEIGHT: 0.28kg (0.62lbs) approx.
ACCESSORIES: Power supply, mounting bracket
OPTIONS: RK-3T 19" rack adapter
1 Specifications are subject to change without notice
