TP-590Rxr - Configuring the TP-590Rxr HDMI Line Receiver
13
7 Configuring the TP-590Rxr HDMI Line
Receiver

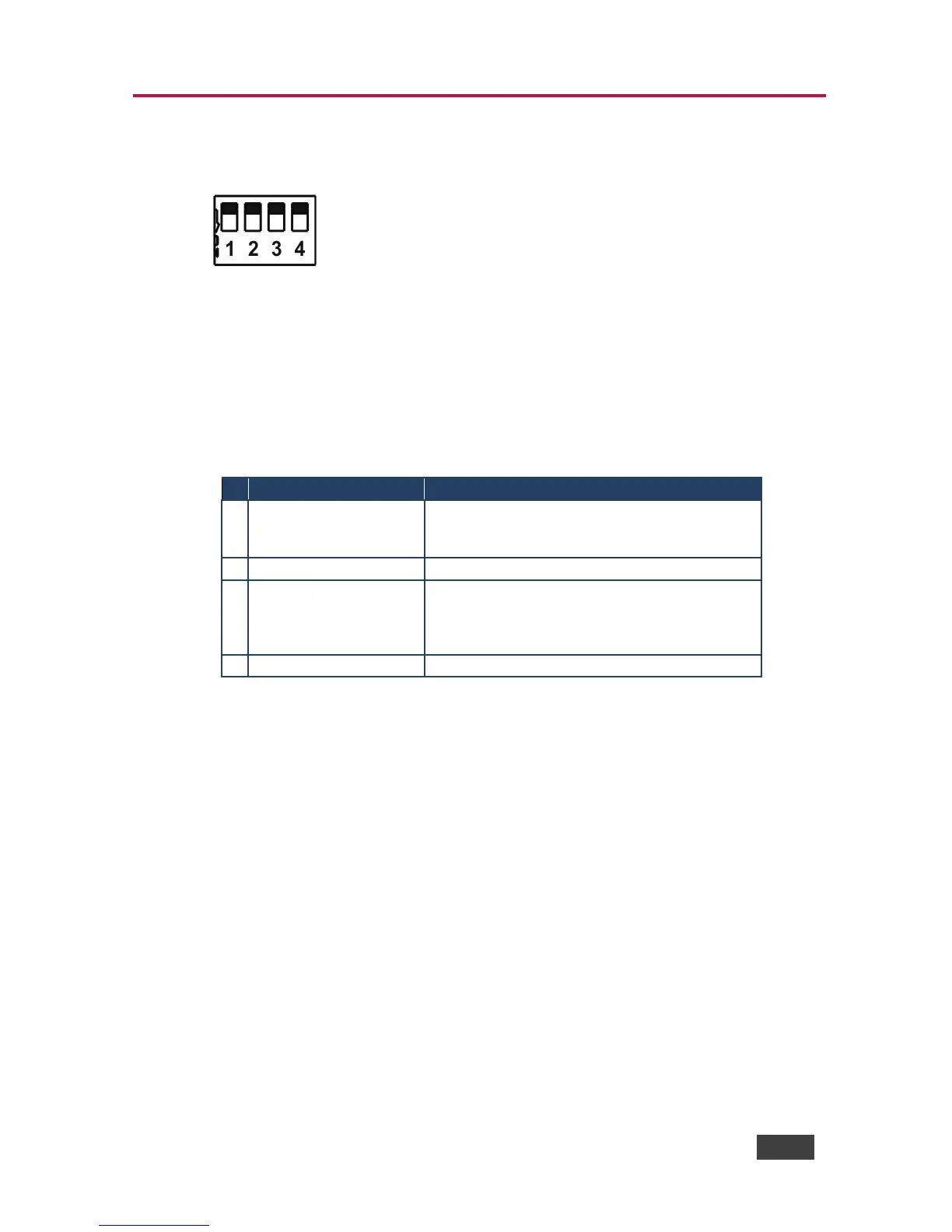

Figure 6: TP-590Rxr DIP-switch
A DIP-switch that is down is on, a switch that is up is off.
Note: Changes to the DIP-switches only take effect on power-up.
7.1 Setting the DIP-switch on the TP-590Rxr
Function
Status
1
Range mode
Off—Extended range (provides increased range
at a reduced bandwidth)
On—Normal range (factory default)
2
Reserved
Off—Factory default
3
EDID lock
Off—Automatic EDID acquisition (factory default)
On—Lock (locks the current EDID so that
changes on the output do not result in changes
to the EDID)
4
Reserved
Off—Factory default
