5.1 Setting the Dipswitches
This section describes the machine set-up and dipswitch selection.
By default, all the VP-311DVI dipswitches are set to OFF.
Figure 3 and Table 3 describe the VP-311DVI unit dipswitches.

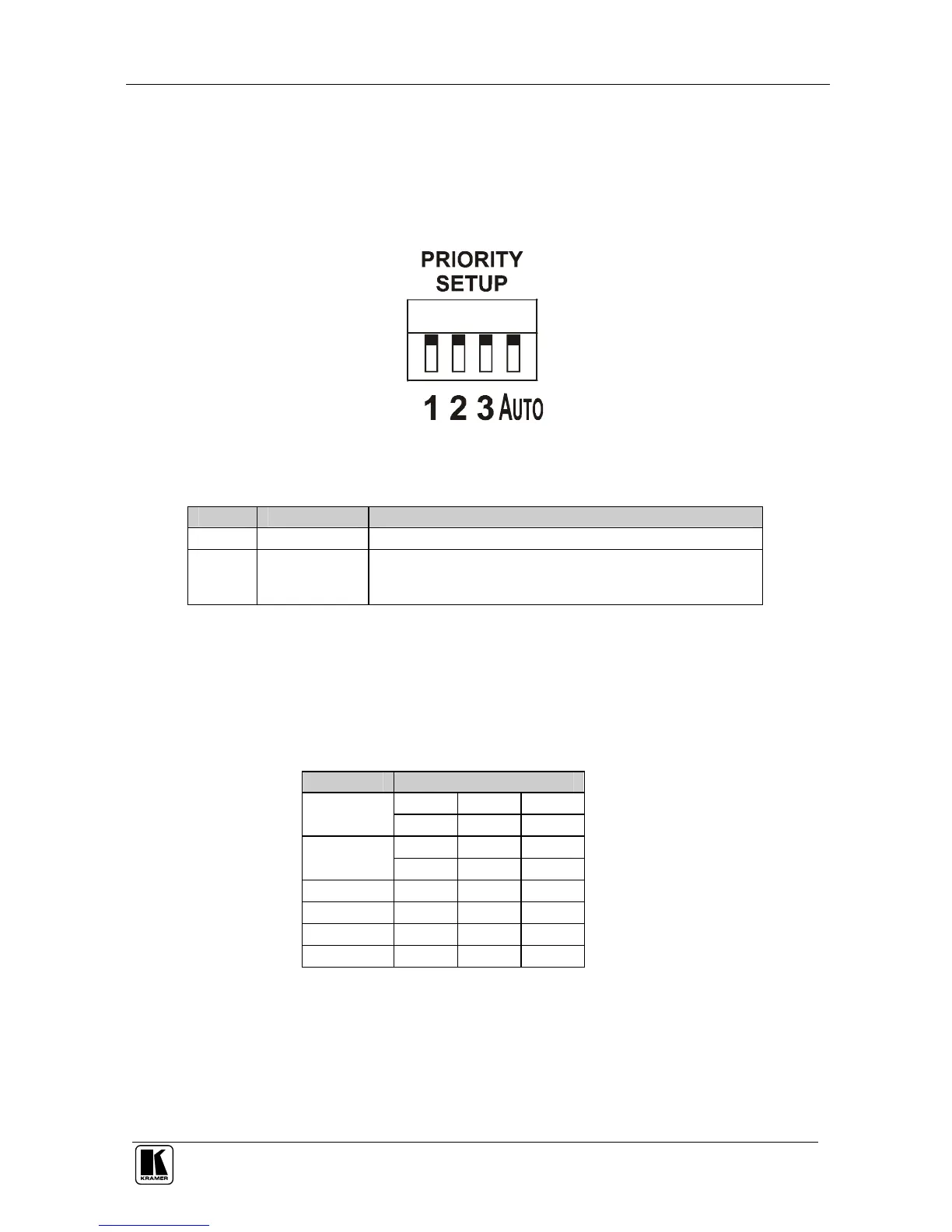

Figure 3: VP-311DVI Dipswitches
Table 3: Dipswitch Settings
DIPS Function Description
1, 2, 3 Priority setup Set the inputs priority (see Table 4)
4 AUTO OFF: manual mode, switch between channels manually;
ON: automatic mode, inputs switch automatically to the
output according to the priority setup
Inputs 1, 2 and 3 can be set in priority according to your needs. The VP-311DVI
will switch to the secondary input upon loss of the primary input signal, and back to
the primary input when a signal is detected.
Table 4 describes the priority setup:
Table 4: Dipswitch Priority Setup
Priority Dip Position
1, 2, 3 OFF OFF OFF
ON ON ON
or
3, 2, 1 OFF OFF ON
OFF ON ON
or
2, 3, 1 OFF ON OFF
1, 3, 2 ON OFF OFF
3, 1, 2 ON OFF ON
2, 1, 3 ON ON OFF
