14 CONNECTOR PINOUTS

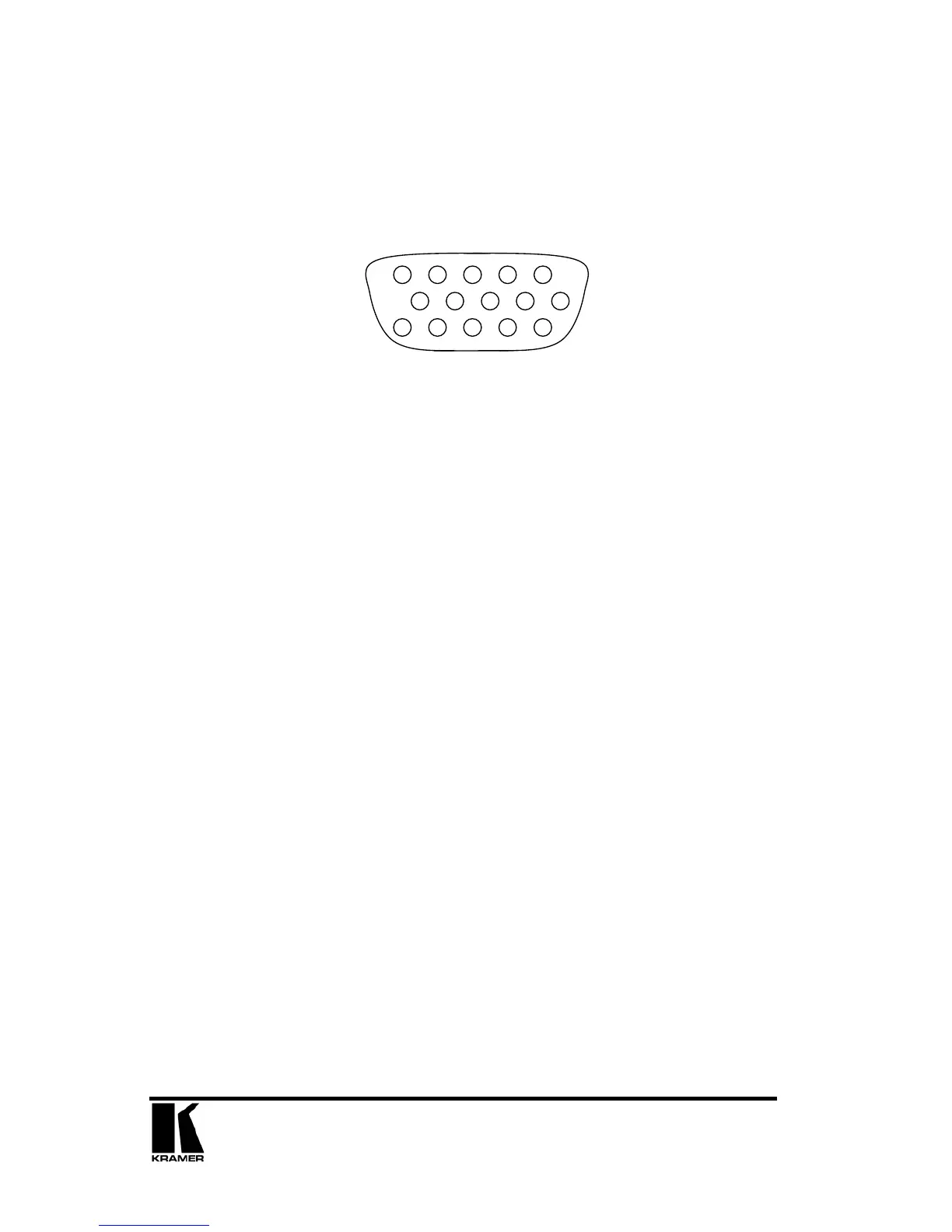

14.1 HD15 connector
1. Red / Pr / R-Y
2. Green / Y
3. Blue / Pb / B-Y
4. ID2 (input & output linked)
5. GND
6. GND
7. GND
8. GND
9. No connection
10.GND
11.GND on input, pulled high on output (used for auto-termination)
12.SDA (input & output linked)
13.H sync (or composite sync for RGBS)
14.V sync
15.SCL (input & output linked)
14.2 RS232 / D9 socket
16.N/C
17.TX (Transmit data)
18.RX (Receive data)
19.N/C
20.GND (Signal return)
21.N/C
22.CTS (Clear to send)
23.RTS (Request to send)
24.N/C
14.3 4 Pin mini-DIN S-video connector (YC) input
1. Y (Luminance)
2. GND
3. GND
4. C (Chrominance)
1
5
11
15
610
