Operation
Note If you’d prefer, you can use the jig and a center punch (not included) to mark for drilling
separately. It is recommended to use a backer board (not included) to protect the back of your
drawer or door from damage when you drill.
1

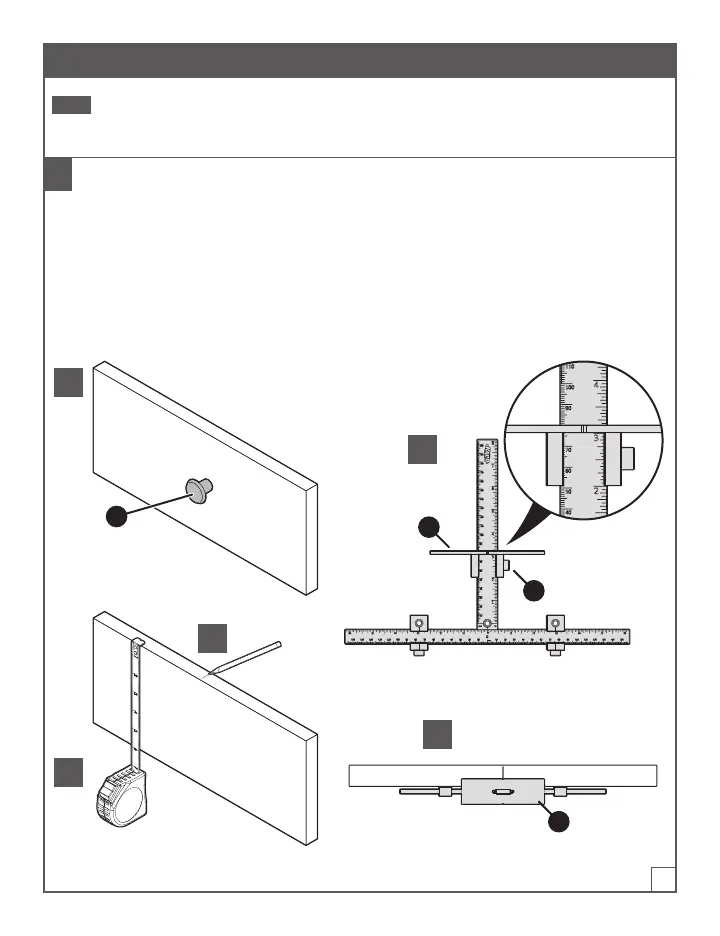

Install a Knob on a Drawer
a. Place the knob (2) to nd a position you want.
b. Mark the center on top of the drawer.
c. Measure the height of the drawer. For this example, the drawer height equals 6 in. (15.2 cm).
d. If centering, set the bottom of the Alignment Stop (C) at half of the height of the drawer
(e.g., 3 in. (7.6 cm)) and tighten the Thumb Screw (G).
e. Line up the notch on the center of the Alignment Stop (C) with the center mark on the top of
the drawer.
1e
1d
C
G
C
1b
1c
2
1a
To Next Page
