Krendl 1300 - Page 48

Rev. Date: 12/27/17 Page 45
MODEL #1300/2300
Description
Switch, Kill
Contact Block (Not Shown)
Hour Meter
Switch, Toggle, SPST (2)
Timer / Relay DPDT 12-240VAC 15A (2)
GE Contactor / Relay 25 Amp (2)
Contactor / Relay 120V Control
Transformer, 4A
Breaker, 16 AMP (4)
Breaker, 2AMP
Terminal Block, Small (6)
Terminal Block Large (5)
Locknut, Steel, Conduit, 1/2"
Connector, Cord, Liq. Tite, Straight
Cord, Input #8-4 (SJ)
Plug, 6-50P
Connector, 6-50C
Cover, Transformer (Not Shown)
BLOWER CONTROL
VARIABLE SPEED
VARIABLE SPEED
BLOWER CONTROL
OFF
REMOTE
CONTROL
BLOWER
BLOWER
AGITATOR/
REMOTE MANUAL
HOURMETERALARM
START
VOLTMETER INPUT1
EMERGENCY
STOP
MODEL #1300/2300 240 V.A.C. 60 Hz.

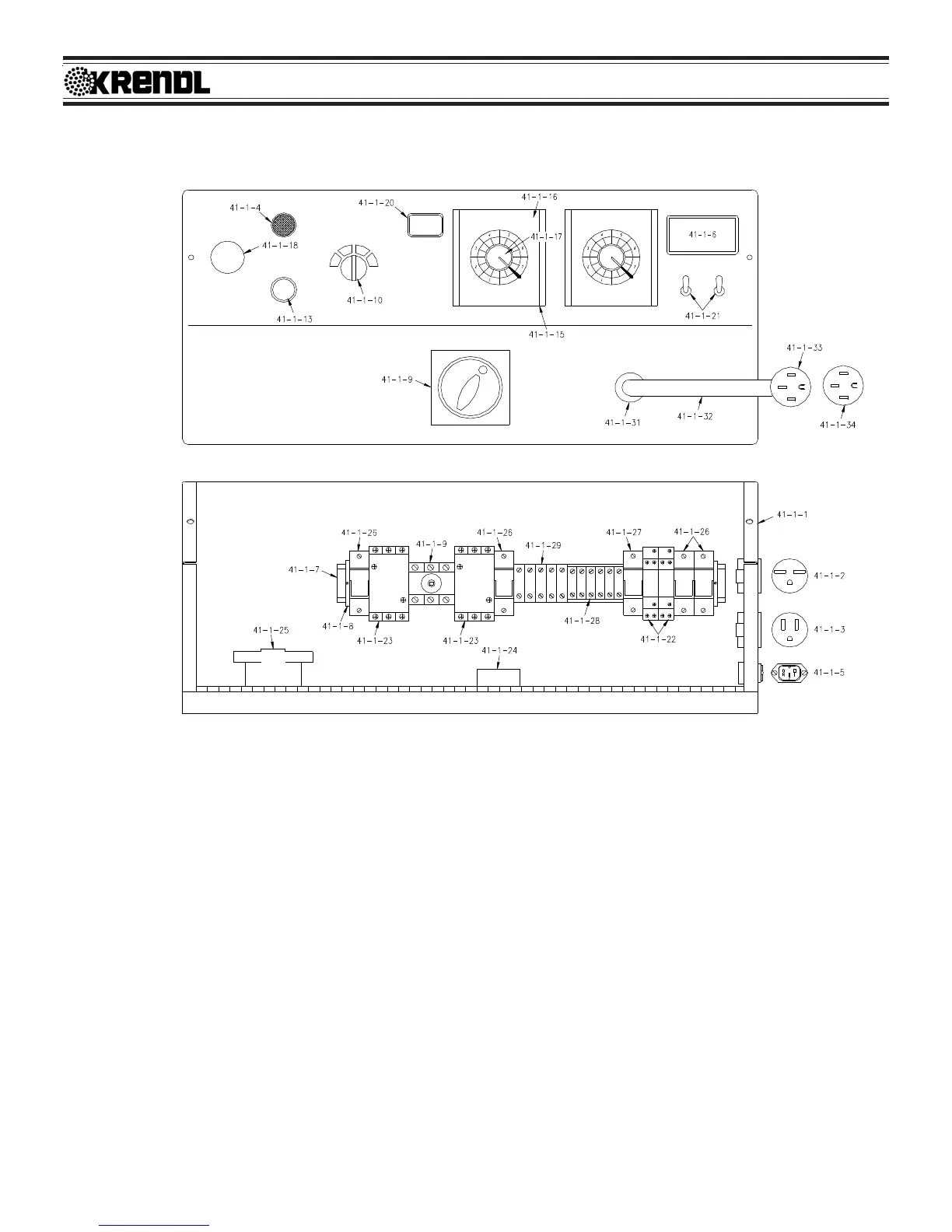

4 BLOWER ELECTRICAL PARTS LIST (ELU13-109071)
Item#
41-1-1
41-1-2
41-1-3
41-1-4
41-1-5
41-1-6
41-1-7
41-1-8
41-1-9
41-1-10
41-1-11
41-1-12
41-1-13
41-1-14
41-1-15
41-1-16
41-1-17
Description
Box, Electrical
Receptacle, NEMA #6-15R
Receptacle, NEMA #5-15R
Alarm for Pre-Alarm System, 24V
Receptacle, RC Plug #509-1050 (remote)
Voltmeter, 0-300V
Dinrail, 1 3/8", 16" Long
Clamp, f/ 1 3/8" Din Rail (2)
Disconnect Switch Assembly
Switch, 4-position Selector
Contact Block , Selector Switch
(white) #KA-1 (not shown)
Contact Block , Selector Switch
(red) #KA-3 (3) (not shown)
Pushbutton On, Green
Contact Block 22mm Green
(Contact Block Not Shown)
Blower Control (120V, 60Hz.) (2)
Cover, Blower Control (2)
Knob, Blower Control (2)
Part#
543-M-103
132-B
1544
543-M-38
543-M-2
543-M-84
ELU12-A
151080-49
600-R-01
543-M-22
543-M-15
543-M-16
543-M-14
8075-2
419-A
420-1
420-2
Electrical Exploded Parts List
Item#
41-1-18
41-1-19
41-1-20
41-1-21
41-1-22
41-1-23
41-1-24
41-1-25
41-1-26
41-1-27
41-1-28
41-1-29
41-1-30
41-1-31
41-1-32
41-1-33
41-1-34
41-1-35
Part#
508-2
8075-1
543-M-77
1536-3
RELAY-10
ELU11-5
ELU10-10
1530-D
BRKR-16
BRKR-2
151080-61
151080-62
391N-A-3
543-M-23
8-4 SJ
209610
109611
ELU06-1
