Rev. Date: 12/27/17 Page 46
MODEL #1300/2300
Description
Switch, Kill, Red
Contact Block (Not Shown)
Hour Meter
Timer / Relay DPDT 12-240VAC 15A (2)
GE Contactor / Relay 25 Amp (2)
Relay, E-Mech,Control 230V, DPDY-NO(2)
Transformer, 4 Amp
Breaker, 8 Amp (2)
Breaker, 1 Amp
Terminal Block, Small (3)
Terminal Block, Large (5)
Connector, Conduit, 1/2" Straight (2)
Locknut, Steel, Conduit, 1/2" (2) (not shown)
12-3 SJ w/Brown/Blue/Green/Yellow
Plug, European (2)
Input Cover (2)
Cover, Transformer (not shown)
Cover, ELU10-12, E-Mech Relay (2)
STOP
EMERGENCY
VOLTMETER INPUT2
VOLTMETER INPUT1
START
ALARM HOURMETER
REMOTE MANUAL
AGITATOR/
BLOWER
BLOWER
CONTROL
REMOTE
OFF
BLOWER CONTROL
VARIABLE SPEED
VARIABLE SPEED
BLOWER CONTROL
MODEL #1300/2300 230 V.A.C. 50 Hz.
ELECTRICAL PARTS LIST (ELU15-109083)
Description
Box, Electrical
Receptacle, NEMA #5-15R
Socket, Schuko, 16A Cover Panel
Pre-Alarm System
Receptacle, RC, Plug, #509-1050
Voltmeter, Digital 240V (2)
Dinrail, 1 3/8", 16"L
Clamp, f/ 1 3/8" Din Rail (2)
Operator Handle Assy
Switch, Disconnect
Switch, 4-Position Selector
Contact Block, Selector Switch
(white) #KA-1 (not shown)
Contact Block, Selector Switch
(red) #KA-3 (3) (not shown)
Pushbutton On, Green
Blower Control (230V, 50Hz.) (2)
Cover, Blower Control (2)
Knob, Blower Control (2)
Item#
42-1
42-2
42-3
42-4
42-5
42-6
42-7
42-8
42-9
42-9-1
42-10
42-11
42-12
42-13
42-14
42-15
42-16
Part#
543-M-102-R1
1544
543-M-78
543-M-38
543-M-2
543-M-84
ELU12-A
151080-49
54-M-33-OS
600-B-01
543-M-22
543-M-15
543-M-16
543-M-86
419-B
420-1
420-2

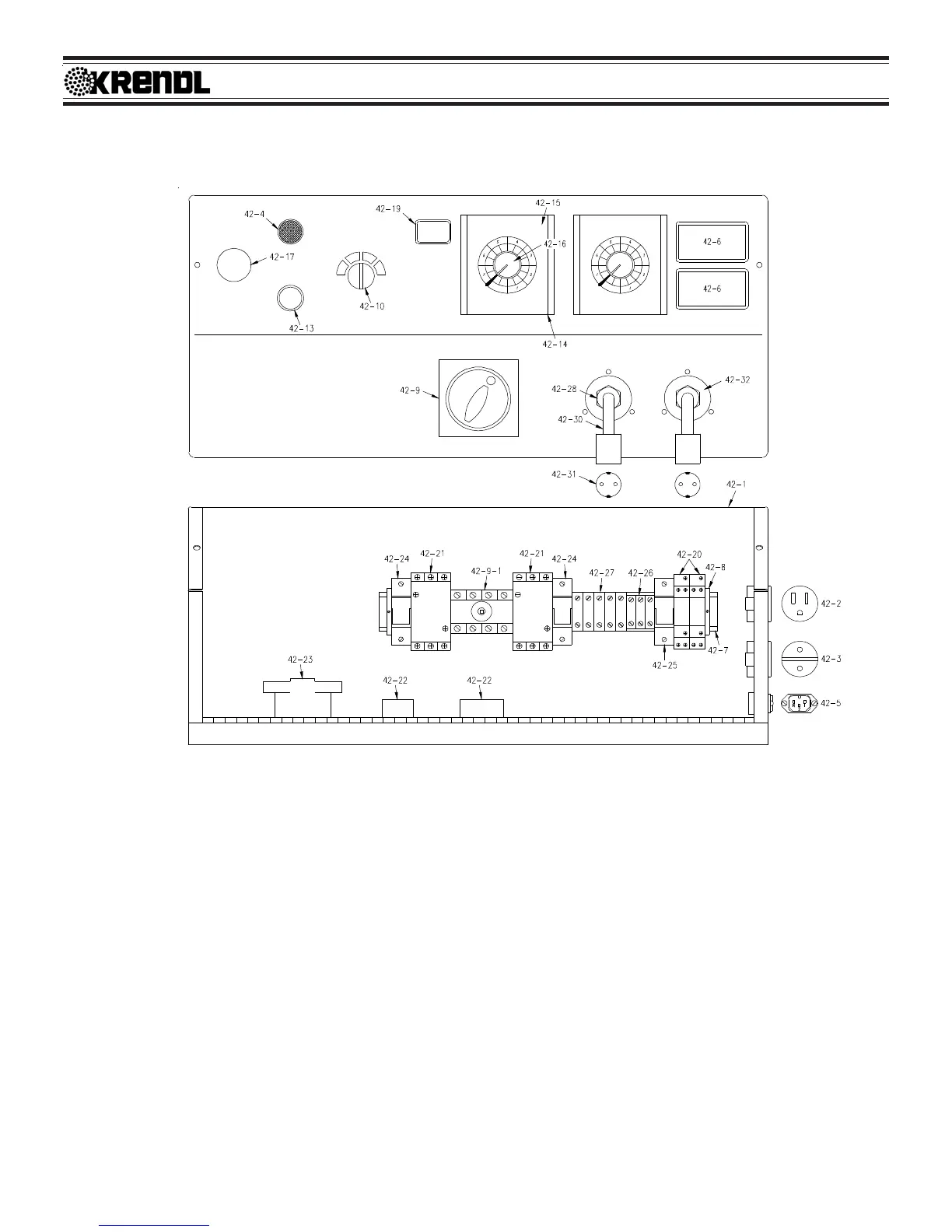

Electrical Exploded Parts List
Item#
42-17
42-18
42-19
42-20
42-21
42-22
42-23
42-24
42-25
42-26
42-27
42-28
42-29
42-30
42-31
42-32
42-33
42-34
Part#
508-2
8075-1
543-M-77
RELAY-10
ELU11-5
ELU10-12
1530-D
BRKR-8
BRKR-1
151080-61
151080-62
543-M-17
391N-A-3
12-3-SJ-M
ELU06-9
ELU50-13-5
ELU06-1
ELU10-13
