Rev. Date: 12/27/17 Page 47
MODEL #1300/2300
HOURMETER
ALARM
START
EMERGENCY
STOP
BLOWER CONTROL
VARIABLE SPEED
VARIABLE SPEED
BLOWER CONTROL
OFF
REMOTE
CONTROL
BLOWER
BLOWER
AGITATOR/
REMOTE MANUAL
VOLTMETER INPUT3
VOLTMETER INPUT2
VOLTMETER INPUT1
Description
Box, Electrical
Receptacle, NEMA# 5-15R
Socket, Schuko, 16A, Cover Panel
Alarm for Pre-Alarm System, 24V
Receptacle, RC Plug #509-1050 (remote)
Voltmeter, 0-300V
Dinrail, 1 3/8", 16" Long
Clamp, f/ 1 3/8" Din Rail (2)
Switch, Disconnect Grey/Black 6P
Switch, 4-position Selector
Contact Block , Selector Switch
(white) #KA-1 (not shown)
Contact Block , Selector Switch
(red) #KA-3 (3) (not shown)
Pushbutton On, Green
Blower Control (230V, 50Hz.) (4)
Cover, Blower Control (4)
Knob, Blower Control (4)
Switch, Kill
Description
Contact Block (Not Shown)
Hour Meter
On/Off Plate (2)
Switch, Toggle, SPST (2)
Timer, Relay DPDT 12-240VAC 15A (2)
GE Contactor / Relay 25 Amp (2)
Relay, E-Mech, CTRL-V230, DPDY-NO (3)
Transformer, 4A
Breaker, 8 Amp (4)
Breaker, 1Amp
Terminal Block, Small (5)
Terminal Block Large (7)
Connector, Cord, Liq.Tite,1/2" Blue (3)
Locknut, Steel, Conduit, 1/2" (3)
(Locknut Not Shown)
12-3 SJ w/Brown/Blue/Green/Yellow
Plug, European (3)
Cover, E-MECH Relay (3) (not shown)
Cover, Transformer (not shown)
MODEL #1300/2300 230 V.A.C. 50 Hz.
4 BLOWER ELECTRICAL PARTS LIST (ELU15-109073)
Item#
42-1-1
42-1-2
42-1-3
42-1-4
42-1-5
42-1-6
42-1-7
42-1-8
42-1-9
42-1-10
42-1-11
42-1-12
42-1-13
42-1-14
42-1-15
42-1-16
42-1-17
Part#
543-M-104-B
1544
543-M-78
543-M-38
543-M-2
543-M-84
ELU12-A
151080-49
543-M-82
543-M-22
543-M-15
543-M-16
543-M-86
419-B
420-1
420-2
508-2

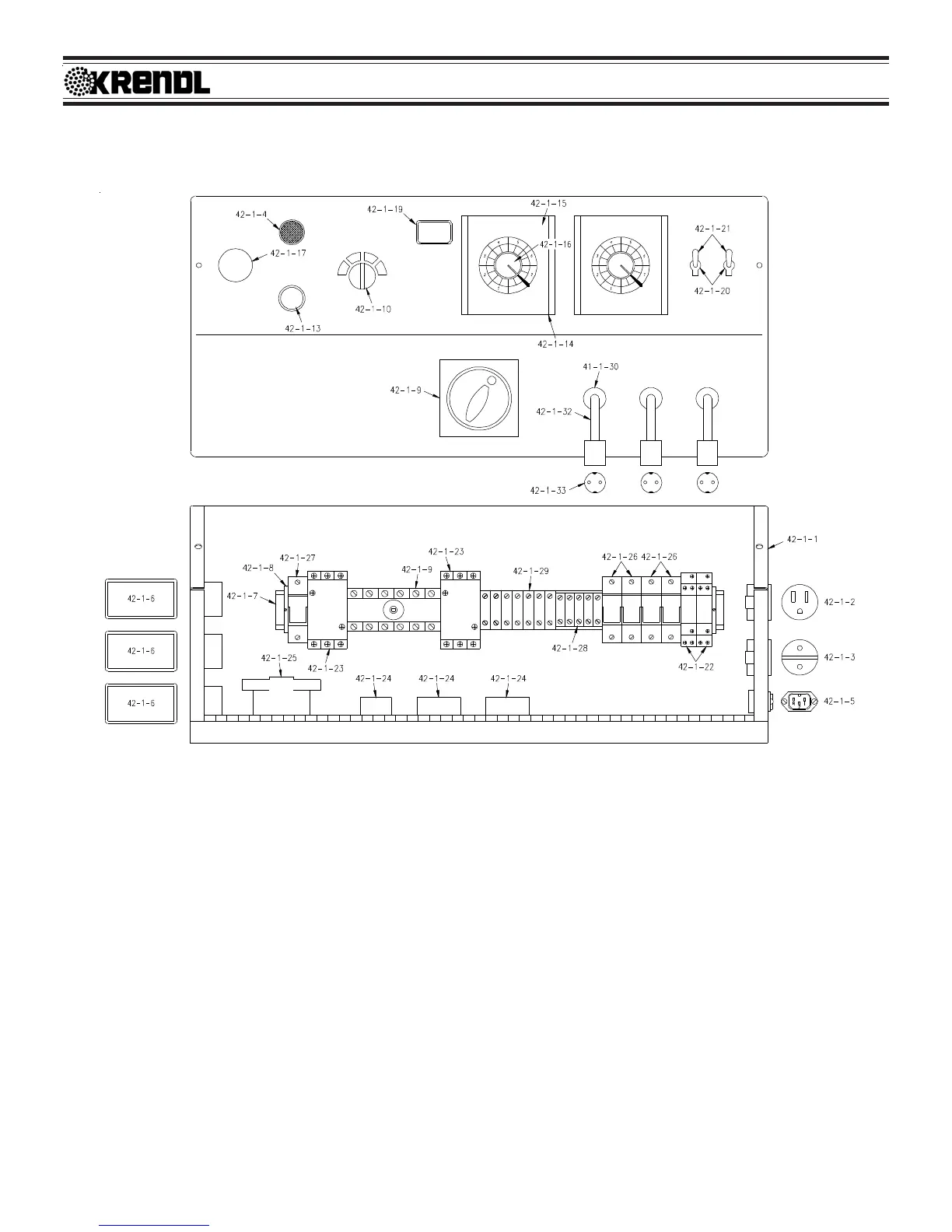

Electrical Exploded Parts List
Item#
42-1-18
42-1-19
42-1-20
42-1-21
42-1-22
42-1-23
42-1-24
42-1-25
42-1-26
42-1-27
42-1-28
42-1-29
42-1-30
42-1-31
42-1-32
42-1-33
42-1-34
42-1-35
Part#
8075-1
543-M-77
1536-8
1536-3
RELAY-10
ELU11-5
ELU10-12
1530-D
BRKR-8
BRKR-1
151080-61
151080-62
543-M-17
391N-A-3
12-3-SJ-M
ELU06-9
ELU10-13
ELU06-1
