Kröber O2
Service work
23

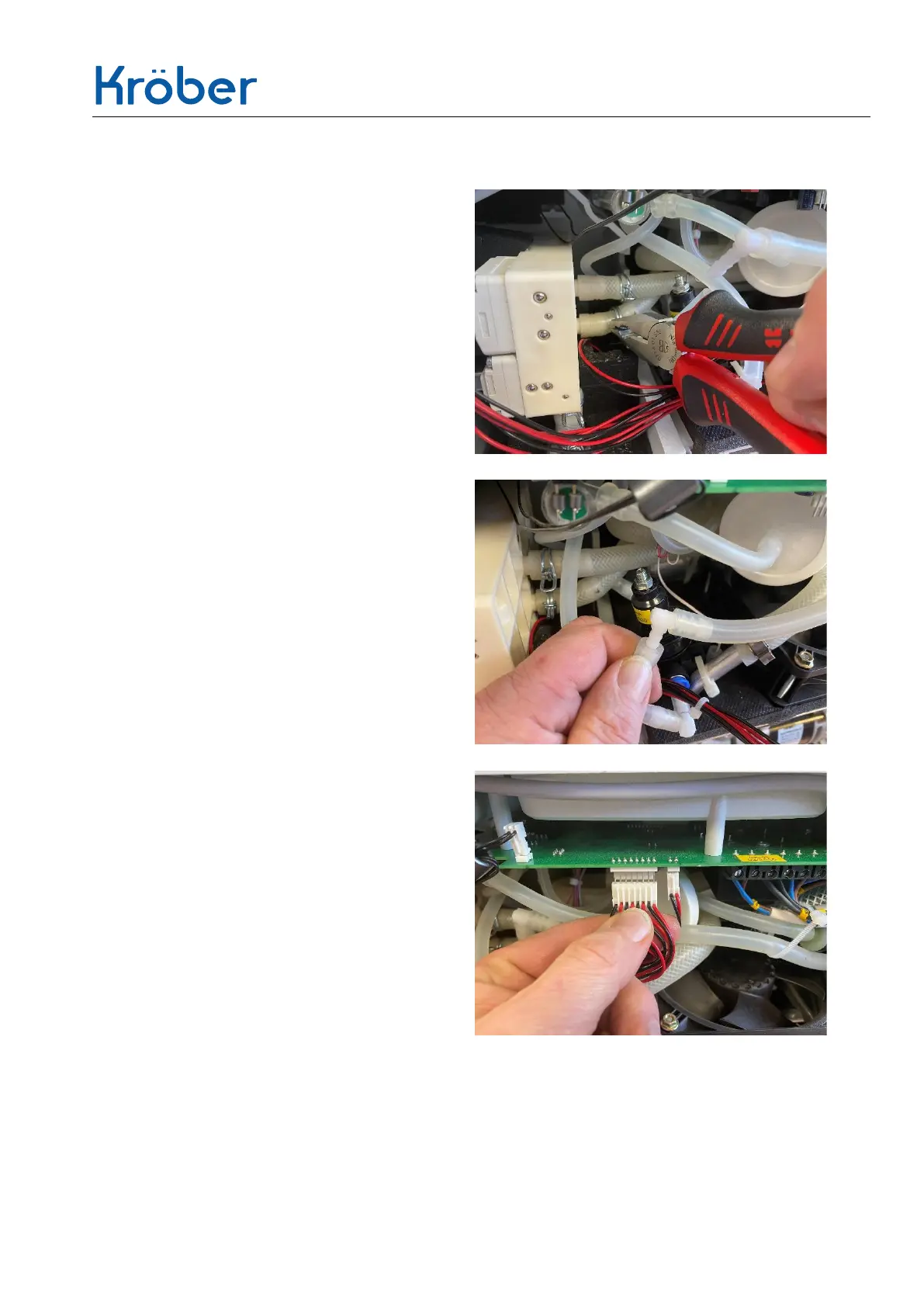

3. Use the combination pliers to
spread both hose clamps and
push them back over the
connection pieces.
4. Push the O2 output of the
functional unit onto the angle
connector.
5. Place both electrical 8-pin and 2-
pin connectors on the connector
strips on the control board. Make
sure that the corrugated side
faces outwards.
Push the connectors onto the bar
all the way to the end
