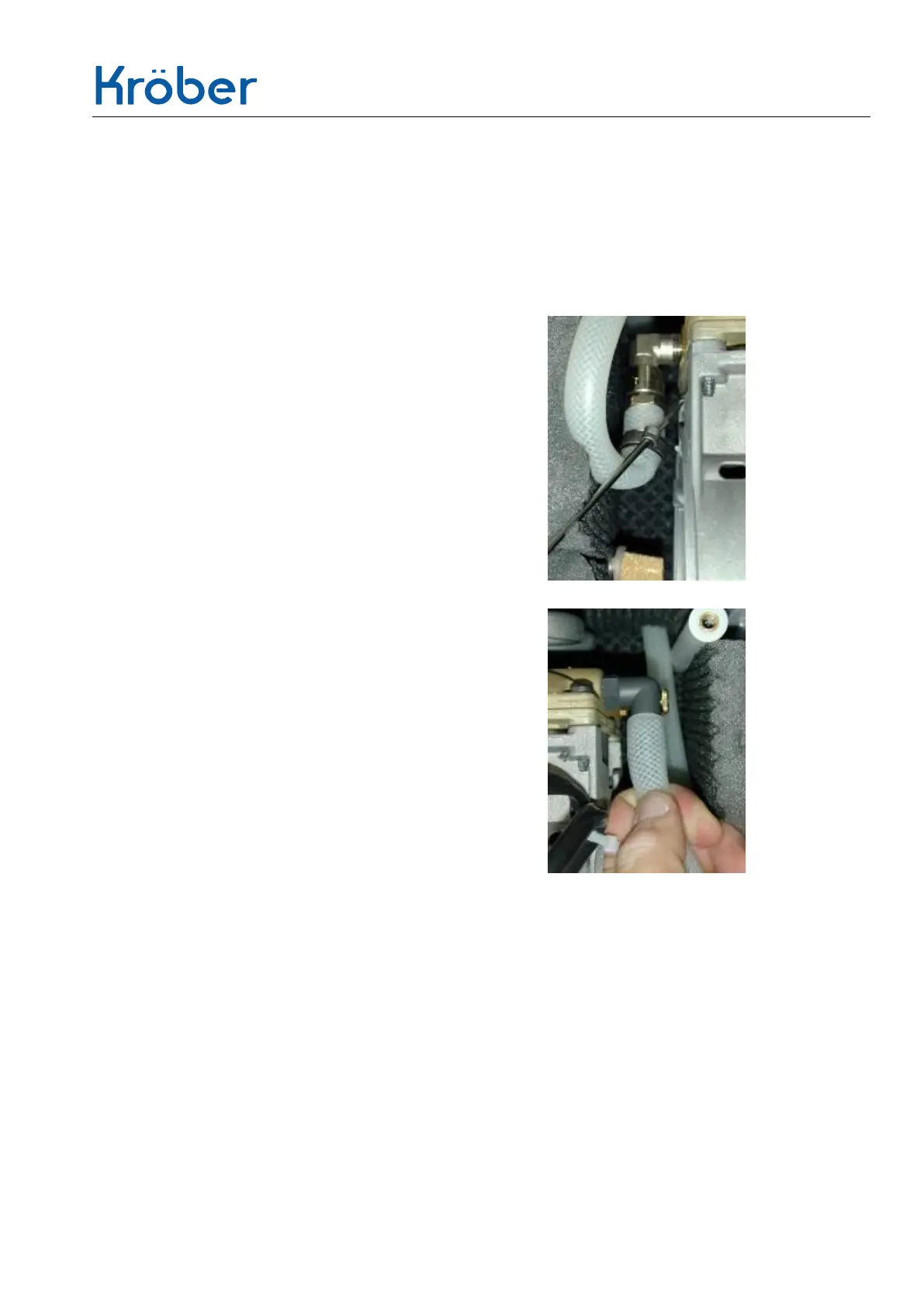

3.6.1.2 Compressor installation
1. Thread the compressor together
with the retaining plate into the
guide and allow it to submerge
by approx. 50%.
2. Guide the clamp over the
pressure output hose of the
compressor.
3. Guide the pressure outlet hose
over the stainless steel nozzle.
4. Secure the connection by
pressing the ear clamp together.
5. Guide the air inlet hose over the
gray plastic grommet.
