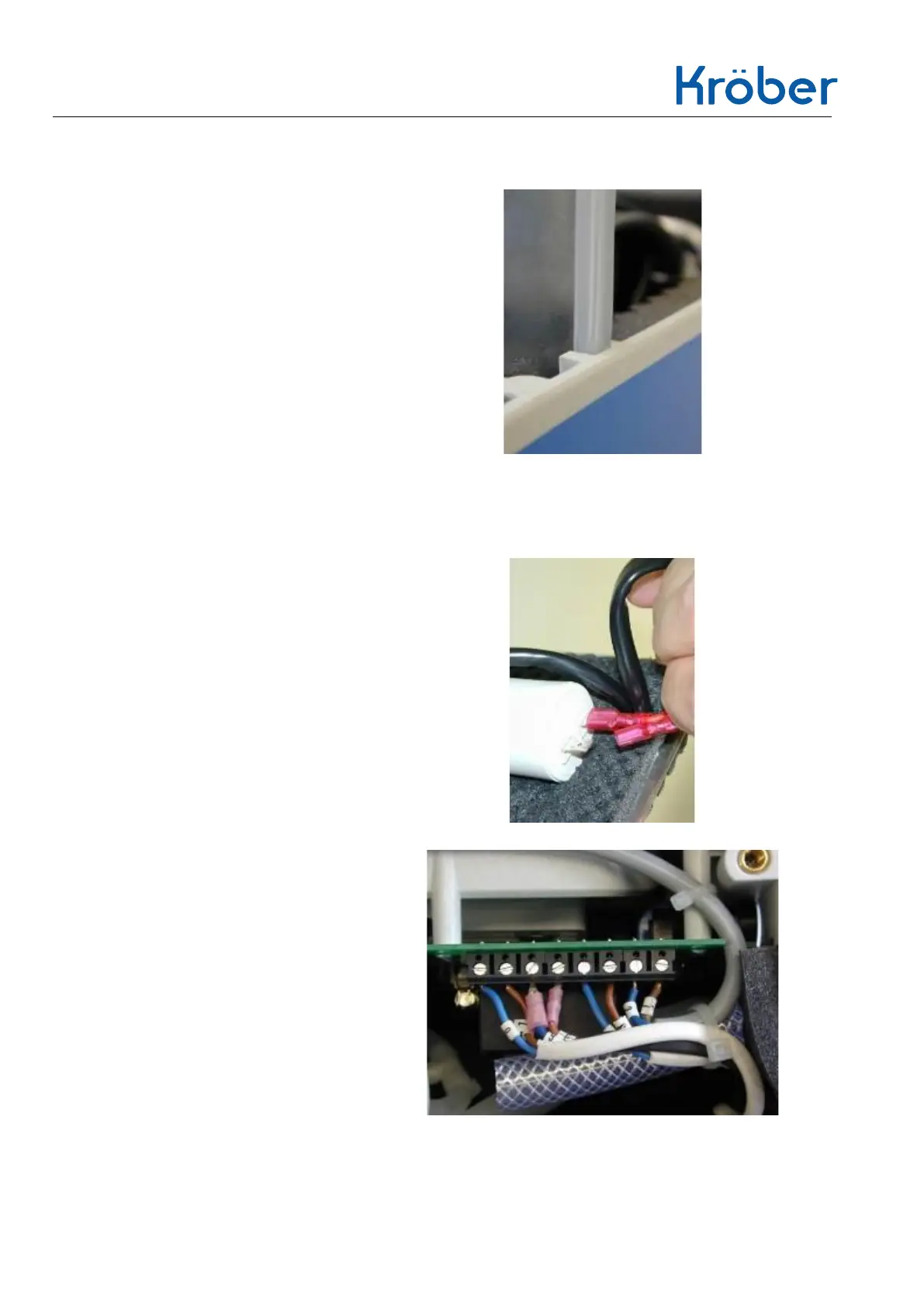

6. Allow the compressor and
retaining plate to slide in the
guide as far as it will go.
NOTE!
Ensure that the side rubbers are
guided correctly and without
twisting!
7. Guide the compressor
connection line through the
grommet.
8. Also lead the motor capacitor
connecting cable through the
grommet.
NOTE!
Due to the cable lugs, it is
necessary to pass them SINGLE
through the grommet.
9. Connect capacitor with motor
capacitor connection cable.
10. Route the compressor
connection line to the control
board. Securely connect the
marked connection strands (5,
6) in the respective connection
terminals (5, 6) of the control
board.
