Kröber O2
Service work
36
Reattach the mains cable to the holding
dome (see figure above right) using
cable ties.

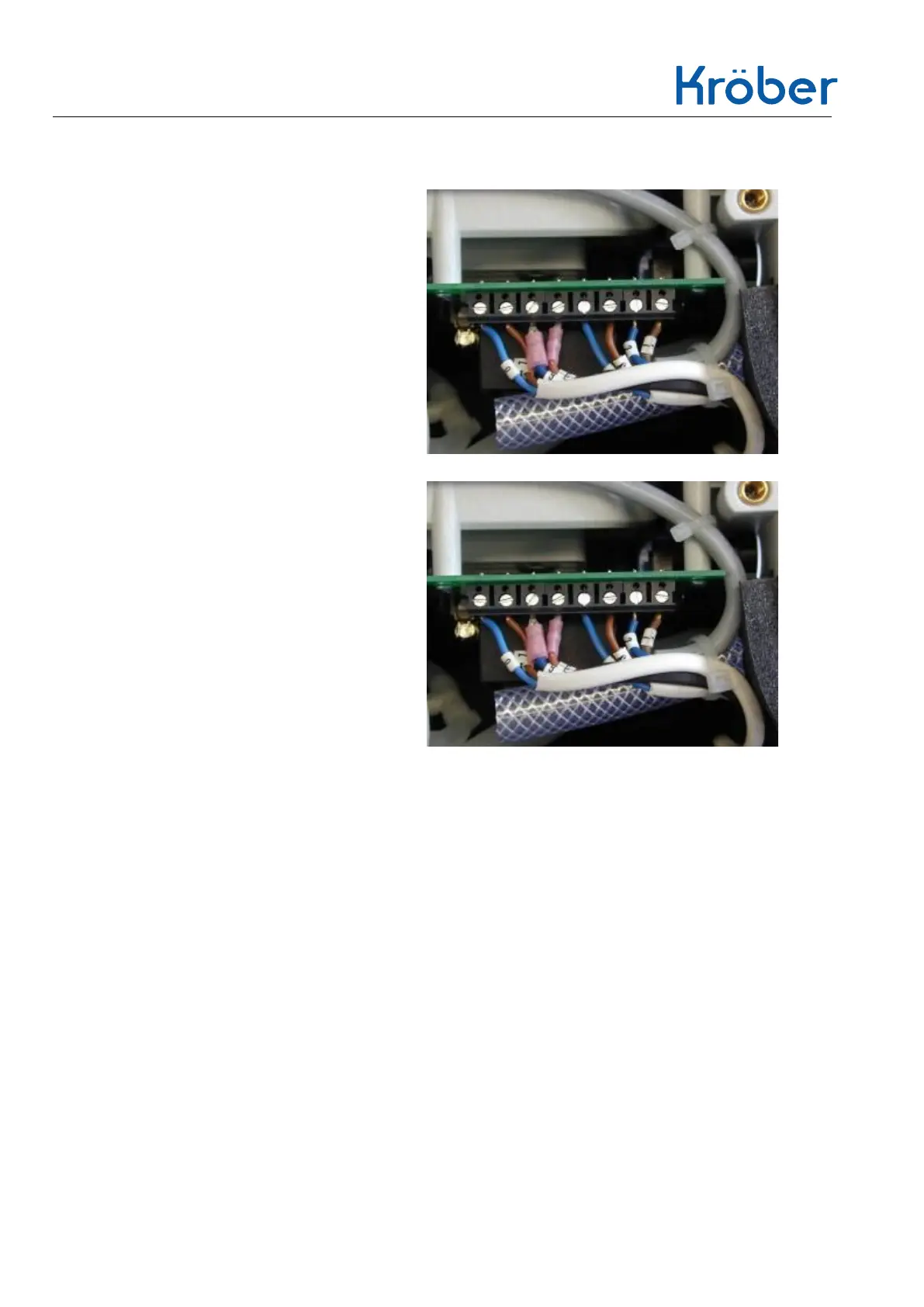

10. connect all wires to the terminal strip
of the control board.
The strands are numbered in ascending
order to avoid confusion. Thereby
mean:
- No. 1 and 2: Mains cable
- No. 3 and 4: Temperature fuse
- No. 5 and 6: Compressor
- No. 7 and 8: Fan
