6 TECHNICAL DATA
40
OPTIMASS 7000
www.krohne.com 10/2015 - 4001016303 - MA OPTIMASS 7000 R03 en

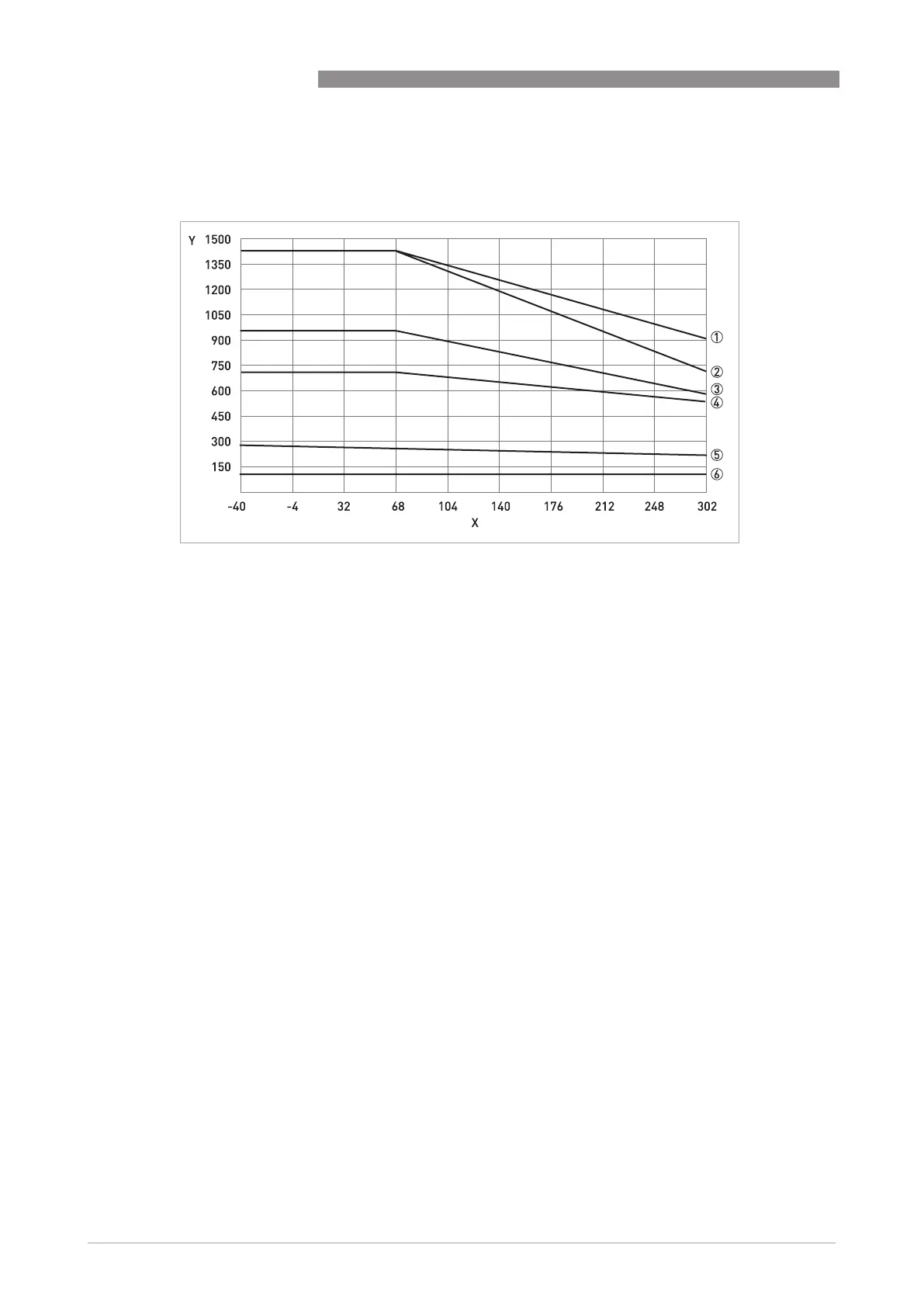

Pressure / temperature de-rating for Titanium Gr 9 meters
Pressure / temperature de-rating for Titanium Gr 9 meters Pressure / temperature de-rating for Titanium Gr 9 meters
Pressure / temperature de-rating for Titanium Gr 9 meters
(all meter sizes with flanged connections as per ASME B16.5)
(all meter sizes with flanged connections as per ASME B16.5)(all meter sizes with flanged connections as per ASME B16.5)
(all meter sizes with flanged connections as per ASME B16.5)
X temperature [°F]
Y pressure [psig]
1 Standard tube and outer cylinder 316L (100 barg PED option) with ASME 600 lbs flanges (sizes DN06...25)
2 Standard tube and outer cylinder 316L (100 barg PED option) with ASME 600 lbs flanges (sizes DN40...80)
3 Outer cylinder (63 barg PED / CRN option)
4 ASME 300 lbs
5 ASME 150 lbs
6 Hygienic connections
