6 TECHNICAL DATA
50
OPTIMASS 7000
www.krohne.com 10/2015 - 4001016303 - MA OPTIMASS 7000 R03 en

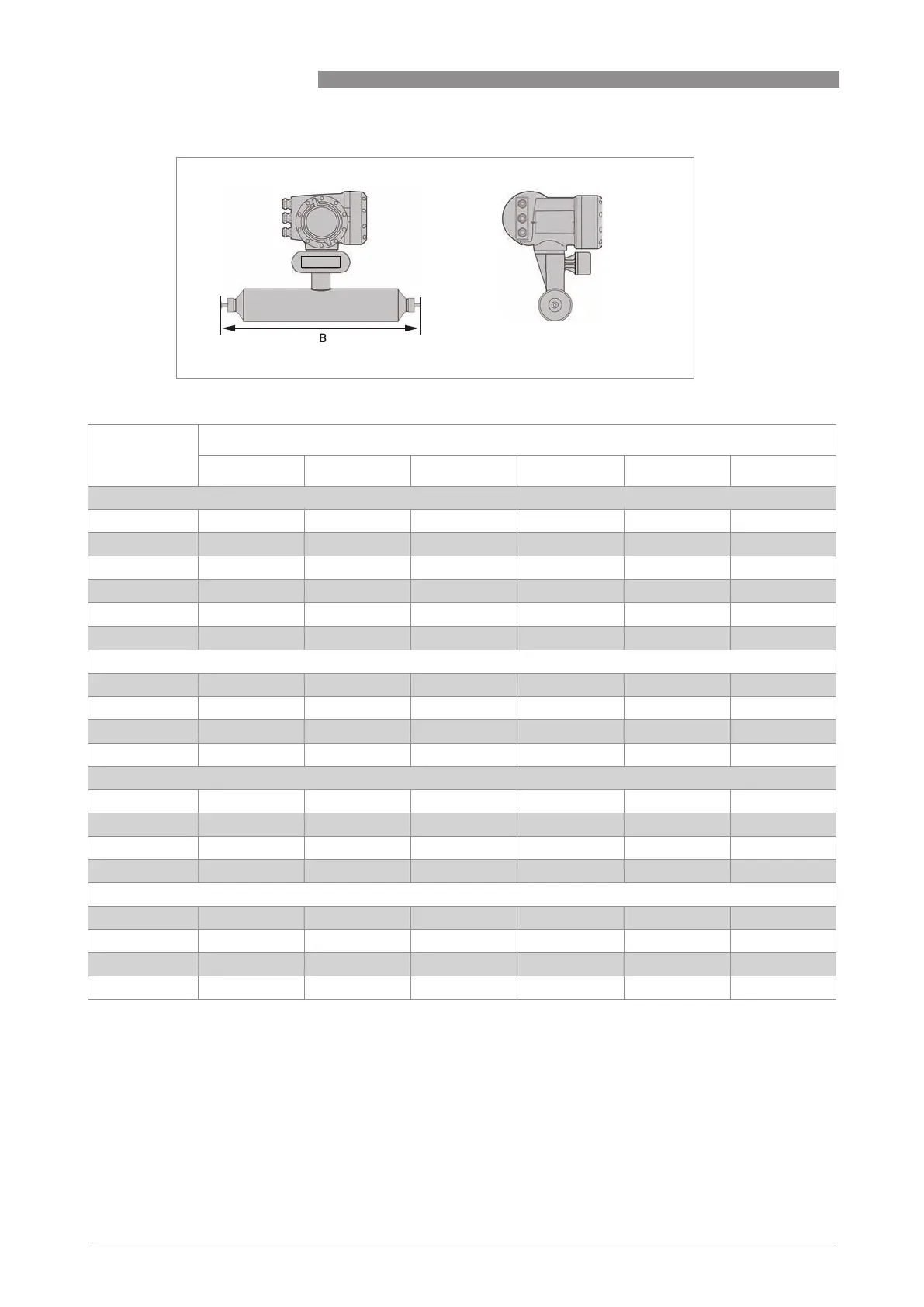

Hygienic connections: adapter versions (male thread)
Dimension B [mm]
T/S 10 T/S 15 T/S 25 T/S 40 T/S 50 T/S 80
Male thread DIN 11851
Male thread DIN 11851Male thread DIN 11851
Male thread DIN 11851
DN10 596 ±2 - - - - -
DN15 - 634 ±2 - - - -
DN25 - - 802 ±2 - - -
DN40 - - - 1040 ±2 - -
DN50 - - - - 1220 ±2 -
DN80 - - - - - 1658 ±2
Male thread SMS
Male thread SMSMale thread SMS
Male thread SMS
1" - 665 ±2 - - - -
1½" - - 852 ±2 - - -
2" - - - 1074 ±2 - -
3" - - - - 1360 ±2 -
Male thread IDF/ISS
Male thread IDF/ISSMale thread IDF/ISS
Male thread IDF/ISS
1" - 664 ±2 - - - -
1½" - - 854 ±2 - - -
2" - - - 1076 ±2 - -
3" - - - - 1354 ±2 -
Male thread RJT
Male thread RJTMale thread RJT
Male thread RJT
1" - 676 ±2 - - - -
1½" - - 866 ±2 - - -
2" - - - 1088 ±2 - -
3" - - - - 1366 ±2 -
