1 Supplementary Operating Manual
6 of 48
AmaControl
2301.83/04-EN
1.3 Configuration of INT 600 DM Gateway
1.3.1 Safety regulations
DANGER
Contact with live components
Danger of death from electric shock!
▷ Any settings on the device shall only be performed when it has been
disconnected from the power supply (de-energised).
1.3.2 Setting Modbus start addresses for INT 600 DM Gateway

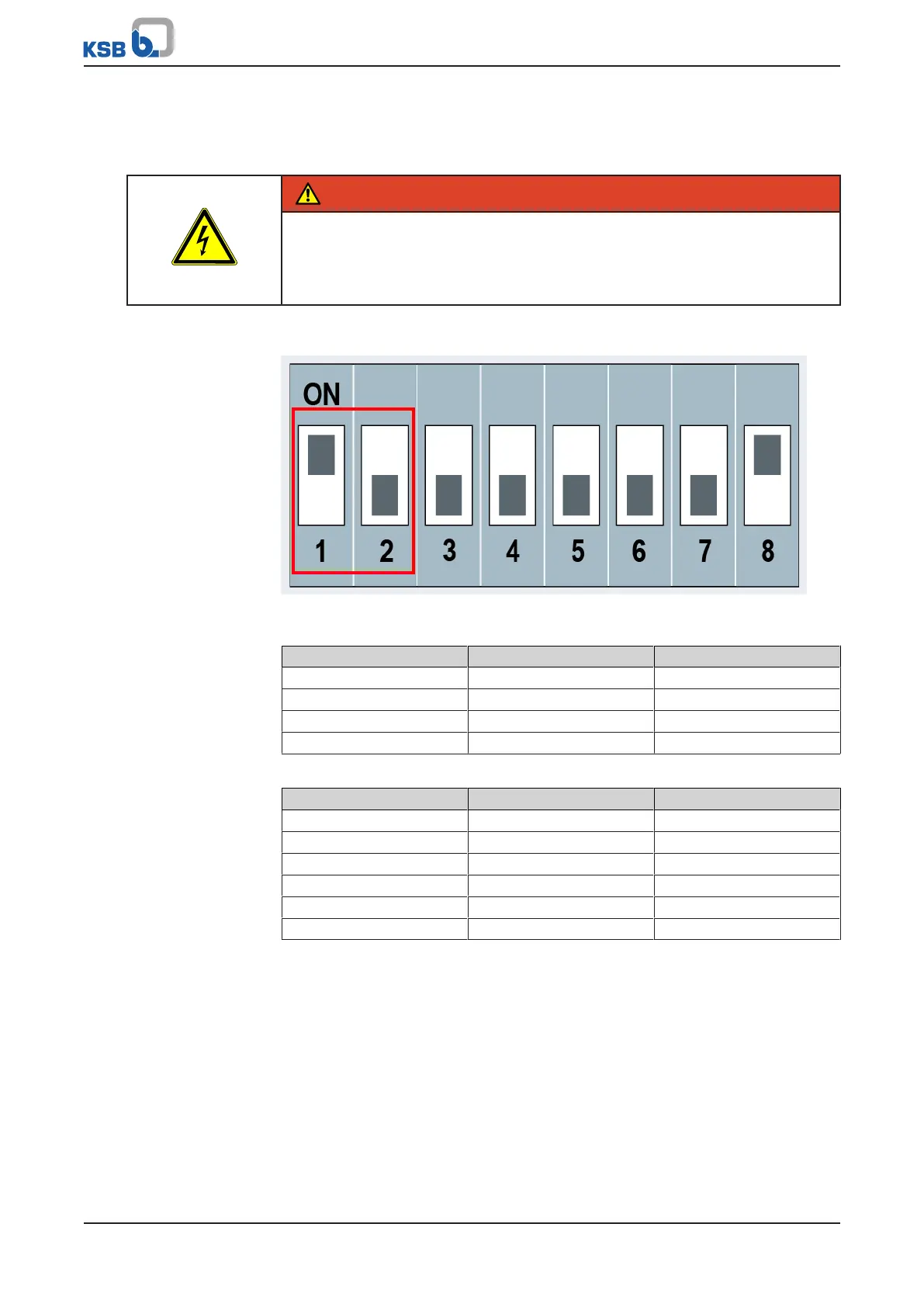

Fig.1: The settings can be configured using DIP switches 1 and 2.
Table5: Configuring DIP switches
DIP switch 1 DIP switch 2 Address
OFF OFF #1
ON OFF #17
OFF ON #33
ON ON #49
Table6: Configuring DIP switches
Address DP Device
#1 1 First
#2 1 Second
#3 1 Third
#4 2 First
#5 2 Second
#6 2 Third
