1 Supplementary Operating Manual

46 of 48

AmaControl

2301.83/04-EN

1.5.1.1 Wiring diagram of INT 600 DM Gateway

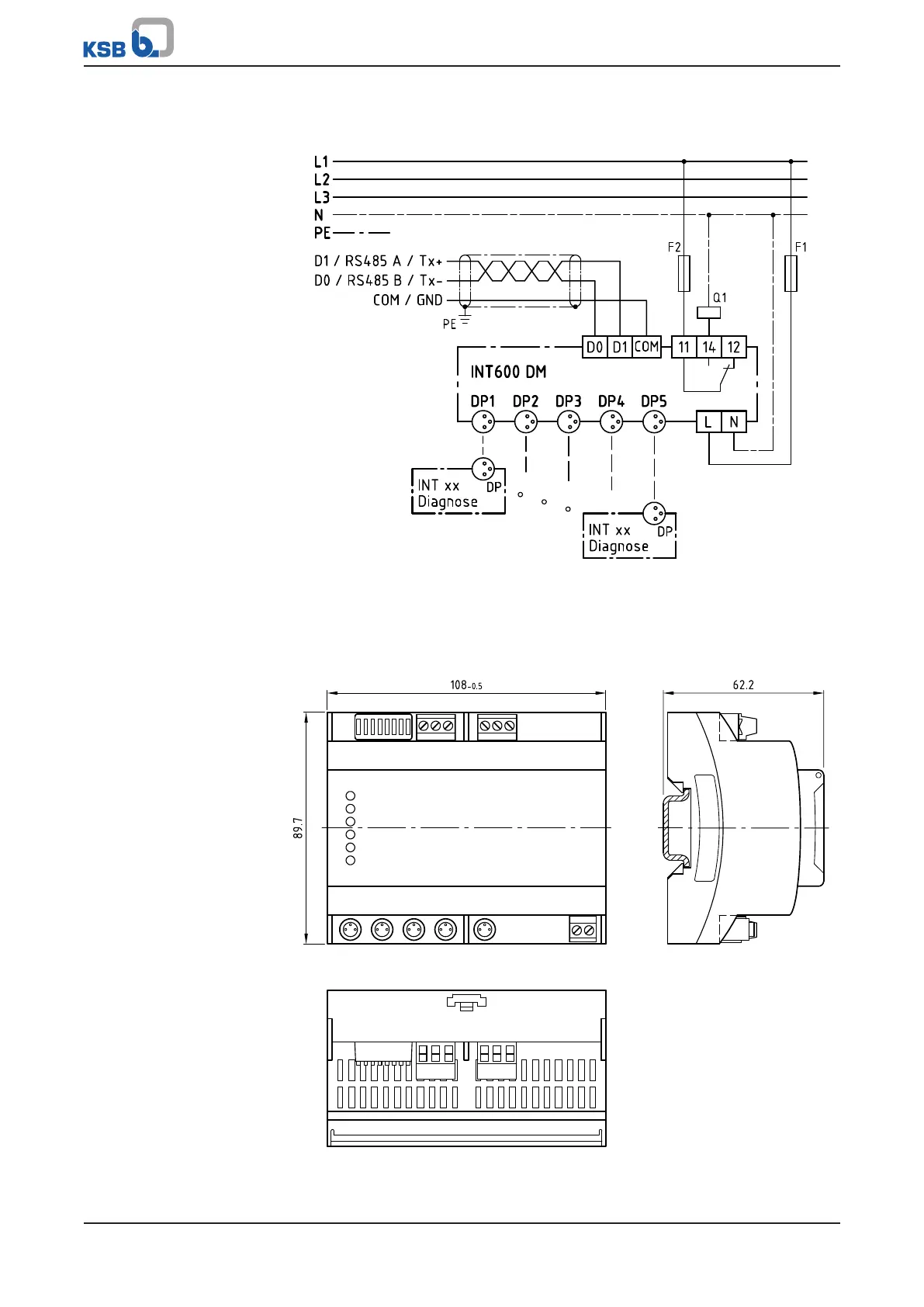

Fig.6: Wiring diagram of INT 600 DM Gateway

1.5.1.2 Outline drawing of INT 600 DM Gateway

Fig.7: Outline drawing of INT 600 DM Gateway
