1 Supplementary Operating Manual
7 of 48
AmaControl
2301.83/04-EN
Example Each INT 600 DM Gateway DP input uses 3 Modbus addresses. The first device on DP1
#1, the second device on DP2 #4 etc. The INT 600 DM Gateway itself uses address #16
(start address +15). The 3 addresses are provided for additional AmaControl devices
at a DP input. For AmaControl only the 1st address is available, resulting in the
following Modbus address assignment for the AmaControl devices:
Table7: Modbus address assignment
Start address DP1 AmaControl1 DP2 AmaControl2 DP3 AmaControl3 DP4 AmaControl4 DP5 AmaControl5 INT 600 DM Gateway
1 1 4 7 10 13 16
17 17 20 23 26 29 32
33 33 36 39 42 45 48
49 49 52 55 58 61 64
NOTE
Due to the defined Modbus addresses, a maximum of 20 AmaControl devices can be
connected in one network.
1.3.3 Setting the baud rate
Baud rate

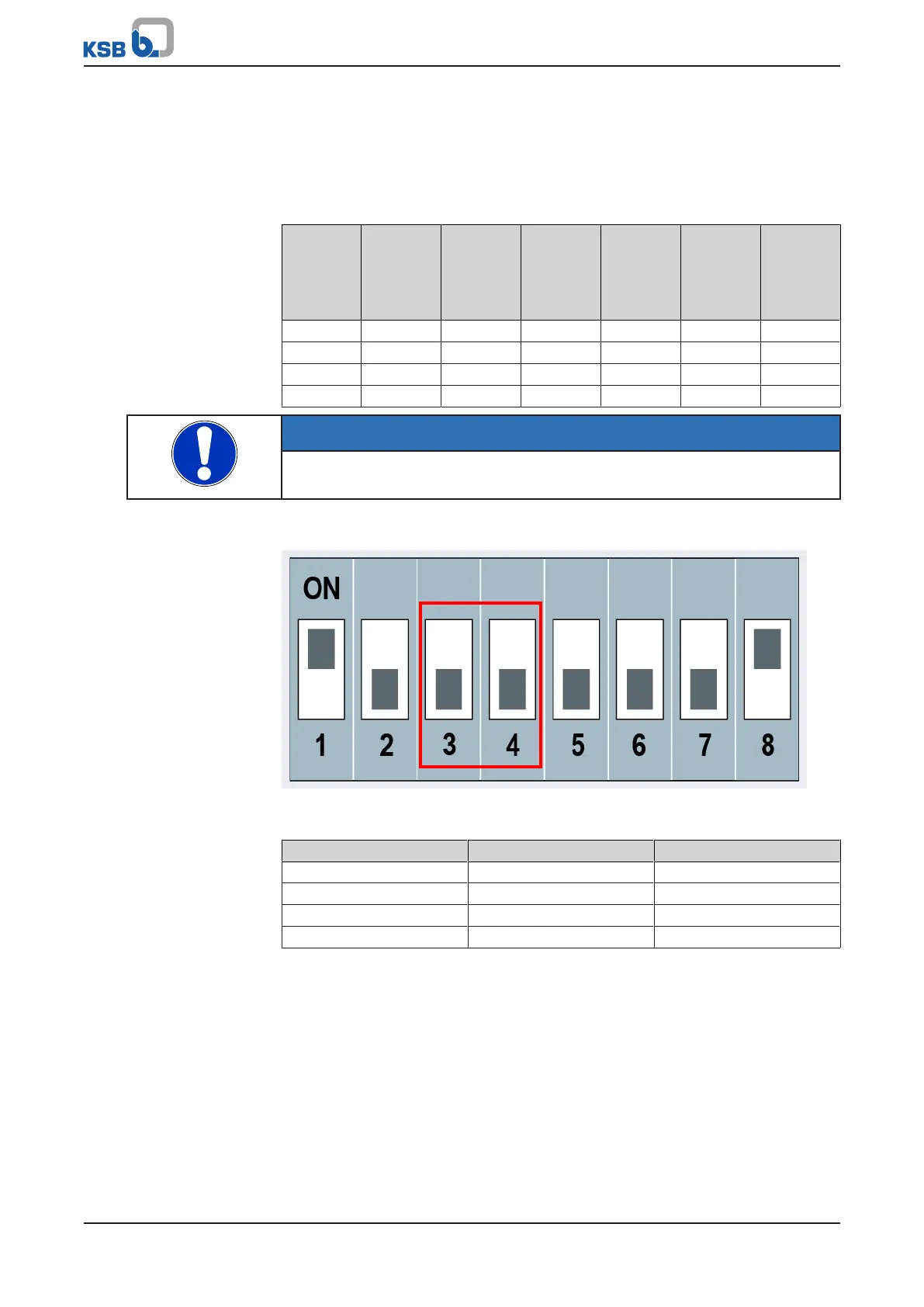

Fig.2: Setting the baud rate via DIP switches 3 and 4
Table8: Selection of the baud rate
DIP switch 3 DIP switch 4 Address
OFF OFF 9600
ON OFF 19200 (factory setting)
OFF ON 38400
ON ON 57600
