Omega
51

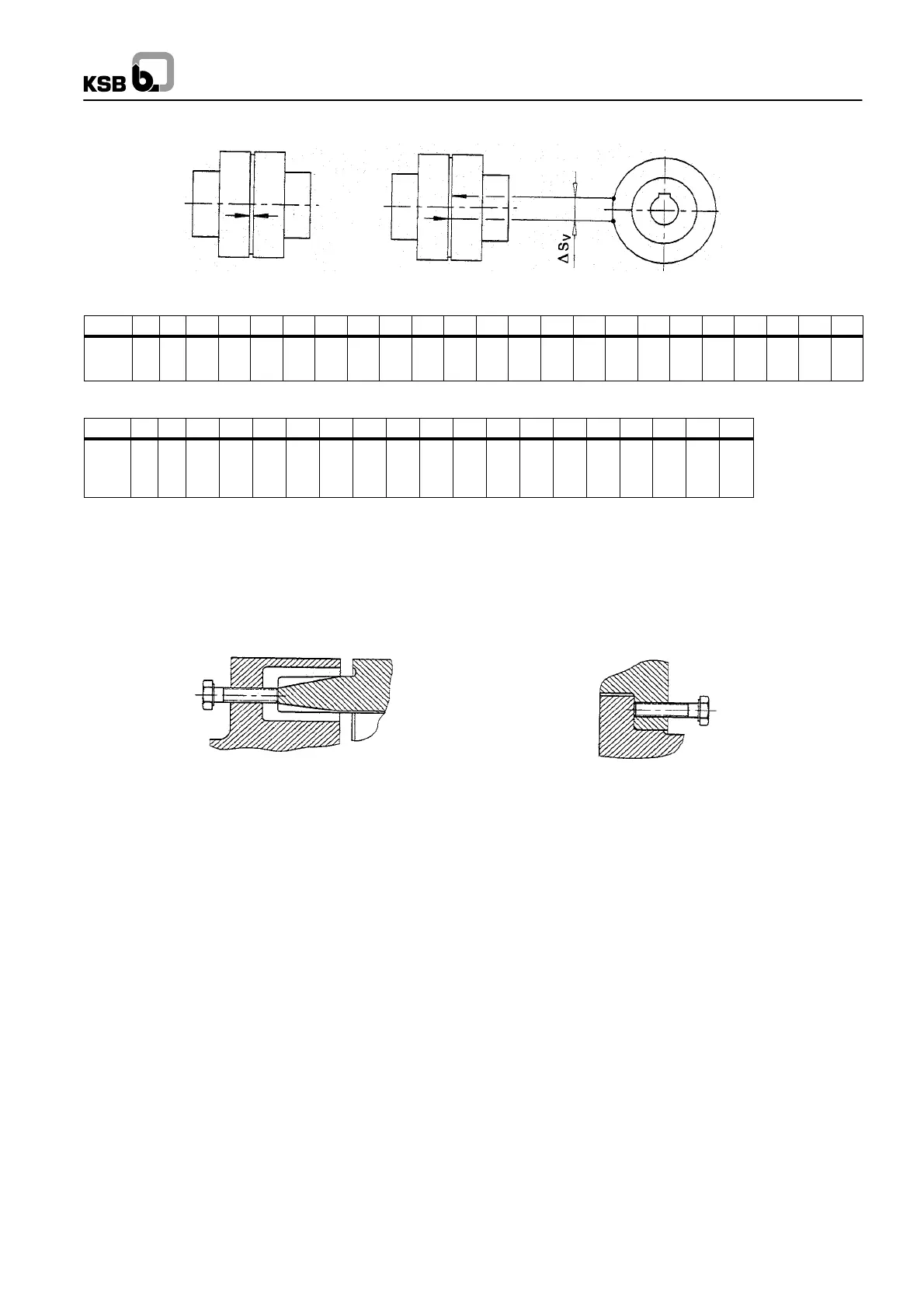

Table: Wear mark on N--EUPEX coupling
Size 58 68 80 95 110 125 140 160 180 200 225 250 280 315 350 400 440 480 520 560 610 660 710
Wear
mark
DS
V
5.5 5.5 5.0 6.0 7.0 8.0 8.0 8.0 8.0 8.5 9.0 10.0 11.5 10.5 11.5 13.0 14.0 15.5 17.5 17.5 19.5 21.0 22.5
Table: Wear mark on N--EUPEX--DS coupling
Size 66 76 88 103 118 135 152 172 194 218 245 272 305 340 380 430 472 514 556
wear
mark
DS
V
6.0 7.0 5.0 7.0 9.0 10.5 11.5 9.0 8.0 7.0 6.5 7.0 8.0 6.5 7.0 10.0 12.0 14.0 16.0
Replacing wear parts
Use only genuine N--EUPEX flexible blocks as spare parts, to
ensure correct torque transmission and trouble--free operation.
Please note:
On types A and ADS, the flexibles can be replaced without axial
displacement of the coupled machines.
After the screwed connection between parts 2 and 3 has been
undone, part 3 can be shifted in axial direction. By rotating part
3, the flexible coupling blocks are freely accessible. To facilitate
axial displacement, sizes 225--430 are provided with forcing
threads in part 1. From size 440, the forcing threads are located
in part 3 (see illustrations).
For reassembly carefully follow the instructions in the sections
on ”Installation” and ”Commissioning”.
