Mechanical seals, standard design

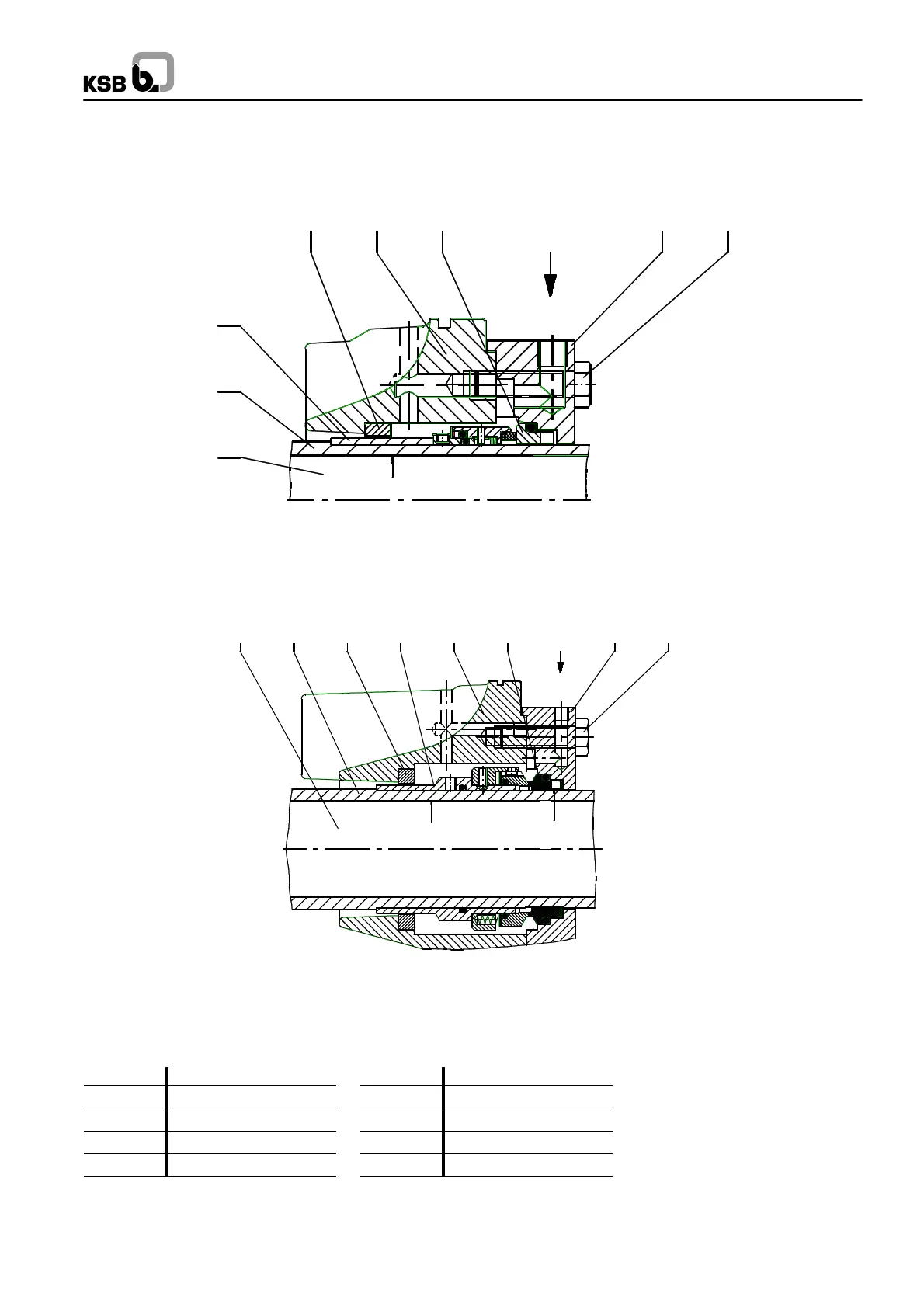

Balanced mechanical seal (for operating pressures > 16 bar) to DIN 24960
Sizes for shaft diameter d
w
= 40 to 80 mm (with covered spring)
dw
211
525.02
411457.02
524.01
433 901.16471
Flushing line
connection
Balanced mechanical seal (for operating pressures p > 16 bar) to DIN 24960
Sizes for shaft diameter d
w
= 90 mm (with multiple spring arrangement)
Æ 110
dw = 90
211 525.02 411457.02524.01 433 901.16471
Flushing line
connection
Part no. Description Part no. Description
211 Pump shaft 471 Seal cover
433 Mechanical seal 524.01 Shaft protecting sleeve
441 Housing for shaft s eal 525.02 Spacer sleeve
457.02 Neck ring 901.16 Hexagon head bolt
