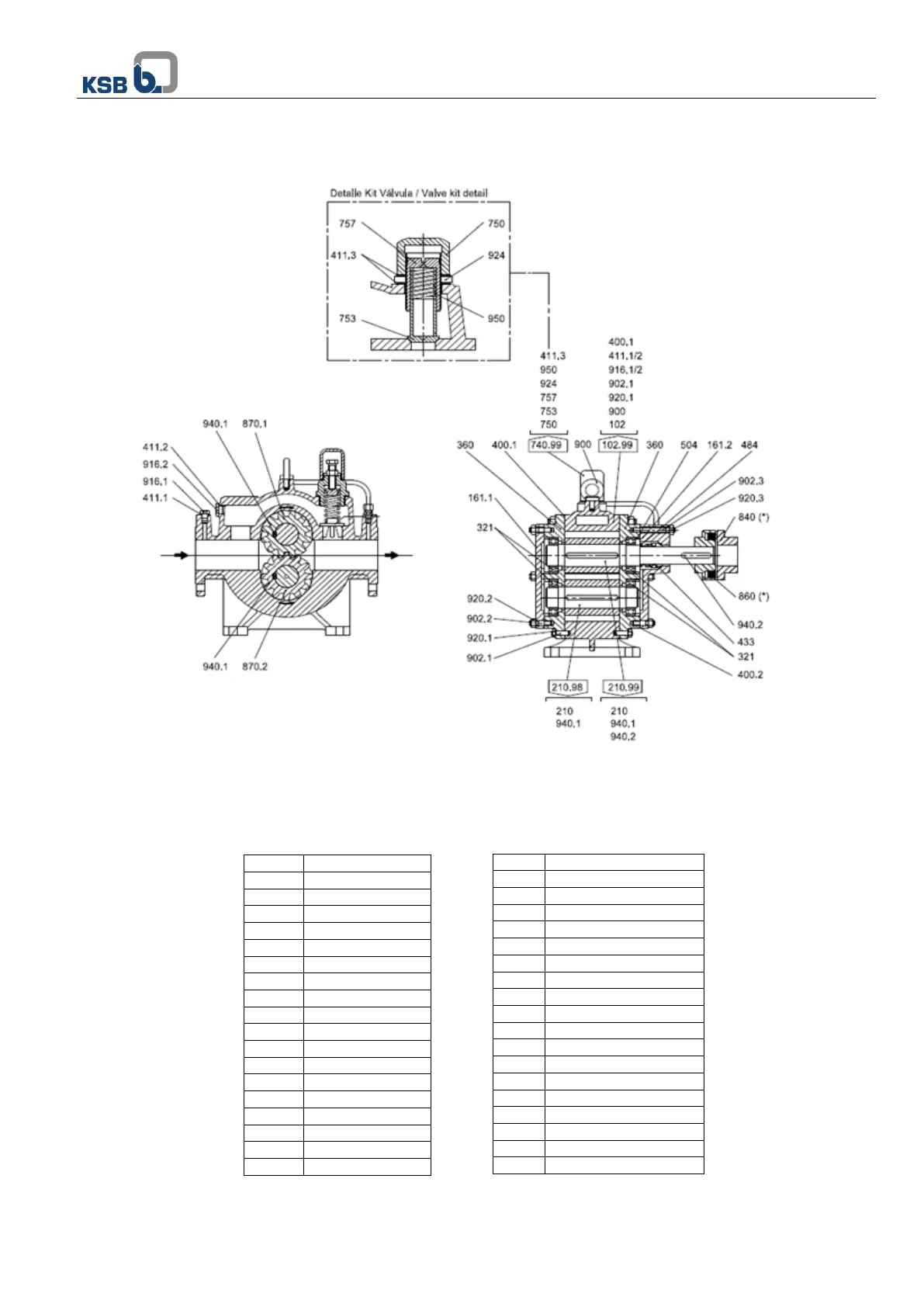

RC, RCV
21
RC
-3R, RC-
4R
RC
V-3R, RCV-
4R
Ref.
Description
753
Valve cone
757
Valve throttle
840
Coupling
860
Coupl.Flexible element
870.1
Gear unit
870.2
Gear unit
897
Guide piece
900
Eyebolt
902.1
Stud
902.2
Stud
916.1
Plug
916.1
Plug
920.1
Nut
920.2
Nut
924
Adjusting Nut
940.1
Parallel key
940.2
Parallel key
950
Spring
Ref.
Description
102.99
Volute casing
161.1
Casing cover
161.2
Casing cover
210.98
Driven shaft
210.99
Drive shaft
321
Rigid Ball Bearing
360
Beaing cover
400.1
Gasket
400.2
Gasket
411.1
Joint ring
411.2
Joing ring
411.3
Joint ring
411.4
Joing ring
433
Mechanical seal
504
Spacer Ring
740.99
Valve kit
750
Valve protector
751
Valve body
20
22
Table of Contents
Default Chapter
2
Table of Contents
2
1 General
3
2 Safety
3
Marking of Warnings in this Manual
3
Personnel Qualifications and Instruction
3
Risks of Failing to Comply with the Safety Instructions
3
Conscientious Safety at Work
3
Safety Instructions for Users and Service Personnel
3
Inspection and Assembly Work
4
Modifications and Arbitrary Manufacture of Spare Parts
4
Unauthorised Operation Modes
4
Warnings for Equipment with Marking
5
3 Transport and Storage
5
Transport and Handling
5
Provisional Storage/Conservation
5
4 Group Description
5
General Description
5
Denomination
5
Form of Construction
5
Forces and Moments Permitted in the Pump Pipes
6
5 Installation
7
Check before Assembly
7
Group Positioning
7
Groups with Horizontal Base Frame
7
Close Coupled Groups
8
Vertical Groups
8
Pipe Joint
8
Auxiliary Connections
9
Electrical Connection
9
Motor Connection
9
Timer Relay Adjustment
9
Check Rotation Direction
10
6 Start-Up
10
First Start-Up
10
Lubricant
10
Filling (Priming) of the Pump
10
Final Control
10
Shutdown
11
Service Limits
11
Start-Up Frequency
11
Temperature of the Liquid to be Pumped
11
Viscosity of the Liquid to be Pumped
11
Maximum Pump Speed
11
Starting up after Storage
11
7 Maintenance/Conservation
12
General Instructions
12
Maintenance/Inspection
12
Checking Instructions
12
Lubrication
12
Emptying/Drainage
12
Dismounting
12
Fundamental Instructions/Observations
12
Tubular Coupling Guards
12
Coupling
12
Assembly
13
Tubular Coupling Guards
13
Coupling
13
Mechanical Seal
13
Lip Seals
13
Pump
13
Tightening Torque of the Screws/Nuts
14
Recommended Spare Parts
15
Preventative Maintenance
15
8 Operation Anomalies
16
9 Annexes
17
Cross Sectional Drawings
17
Trolley-Mounted Pumps
22
Warnings
22
Start-Up
22
Maintenance
22
Safety
22
