RC, RCV
6
4.4

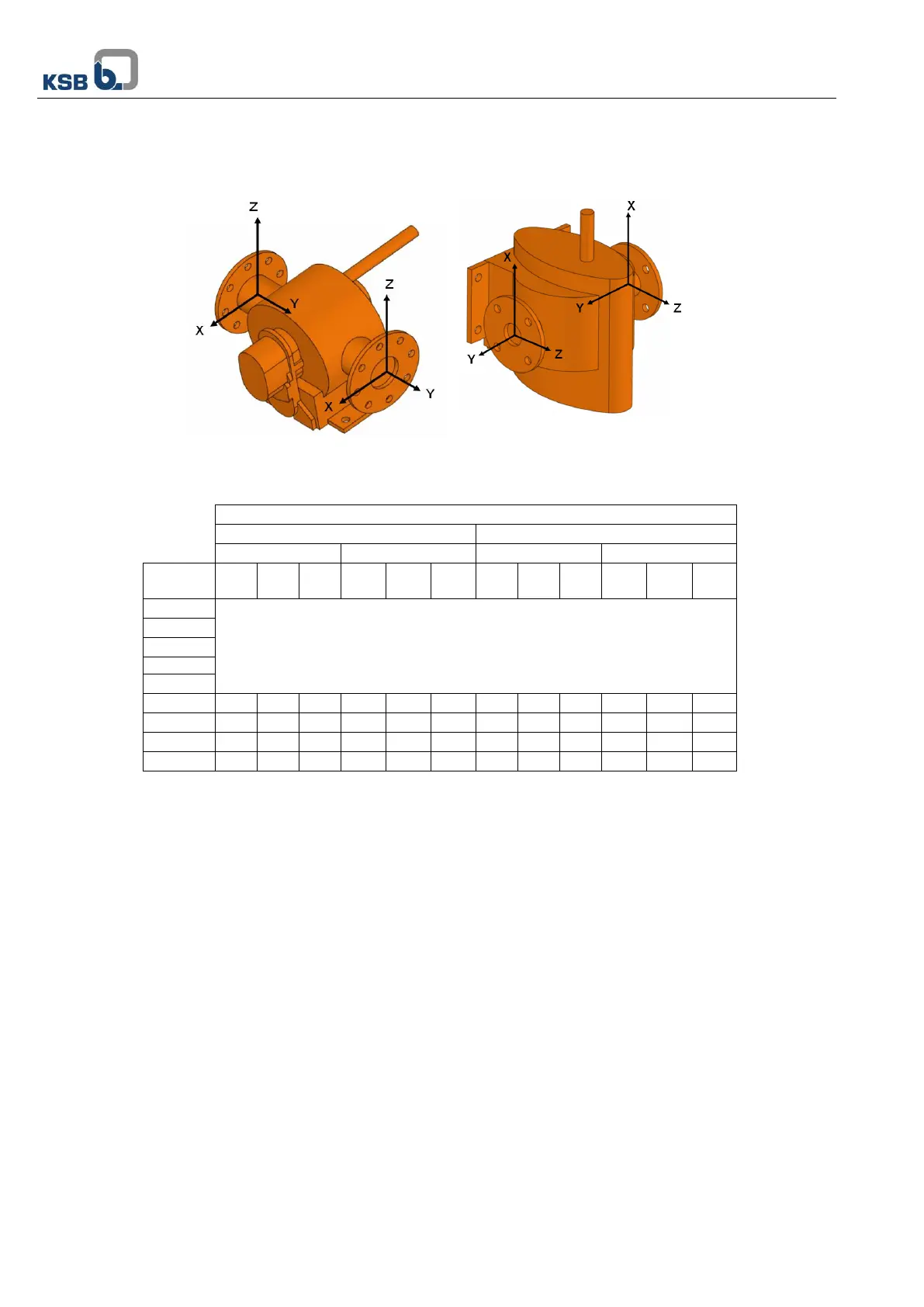

Forces and moments permitt
ed in the pump pipes
RC
RCV
CAST IRON OR BRONZE CASING
SUCTION
SUCTION
FORCES [N]
MOMENTS [N.m]
FORCES [N]
MOMENTS [N.m]
PUMP
SIZE
Fx
Fy
Fz
Mx
My
Mz
Fx
Fy
Fz
Mx
My
Mz
00
NOT APPLICABLE (THREADED NOZZLES)
01
1
1 1/2
2
2R
242
242
242
121
121
121
242
242
242
121
121
121
2RD
242
242
242
121
121
121
242
242
242
121
121
121
3R
346
346
346
182
182
182
346
346
346
182
182
182
4R
415
415
415
222
222
222
415
415
415
222
222
222
5
