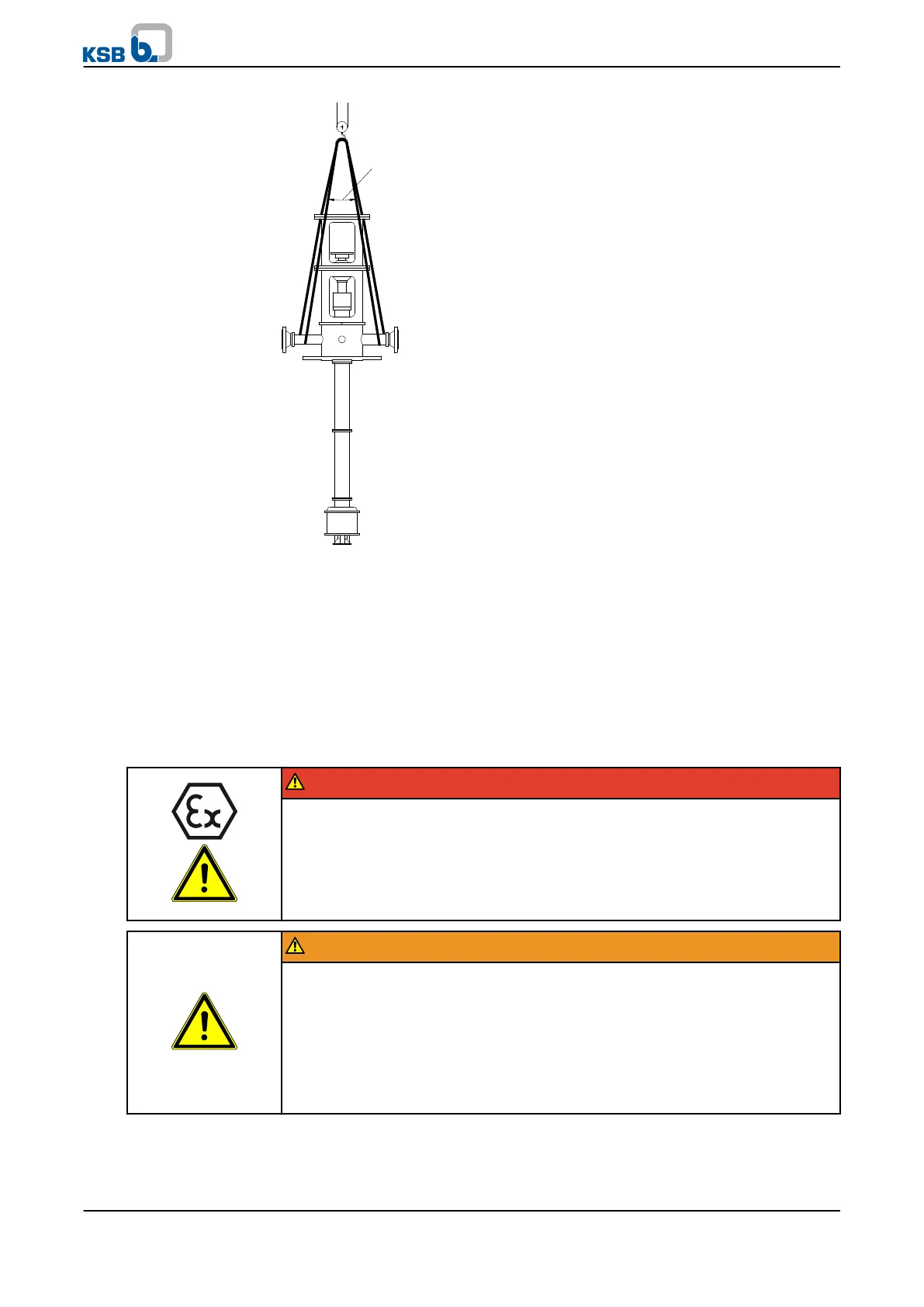

Fig. 6: Observing the attachment points
1. Attach suitable lifting accessories to the attachment points provided.
2.
Slowly pull the pump upright. Keep at a safe distance - the pump could swing!
3. Insert gaskets 400.5.
4. Position the pump above the can and slowly lower it until the flange of
distributor casing 10-1 rests on the flange of can 151.
5. Align the drilled holes and connect the distributor casing and can with screwed
connection 901.5/920.5.
5.5.2 Lowering pumps into the can, large installation depths
DANGER
Improper installation in potentially explosive atmospheres
Explosion hazard!
Damage to the pump set!
▷ Comply with the applicable local explosion protection regulations.
▷ Observe the information in the data sheet and on the name plates of pump and
motor.
WARNING
Improper transport
Risk of personal injury from lifting heavy components!
The load could slip out of the suspension arrangement!
▷ Select lifting accessories which are suitable for the component weight.
▷ Always use the attachment points provided for the lifting accessories.
▷ Secure the load appropriately.
▷ Comply with the applicable health and safety regulations.
5 Installation at Site
WKTR
29 of 78
