6.1.2.1 Connecting the oil mist lubrication
1
2
3
4
5
6
7
8

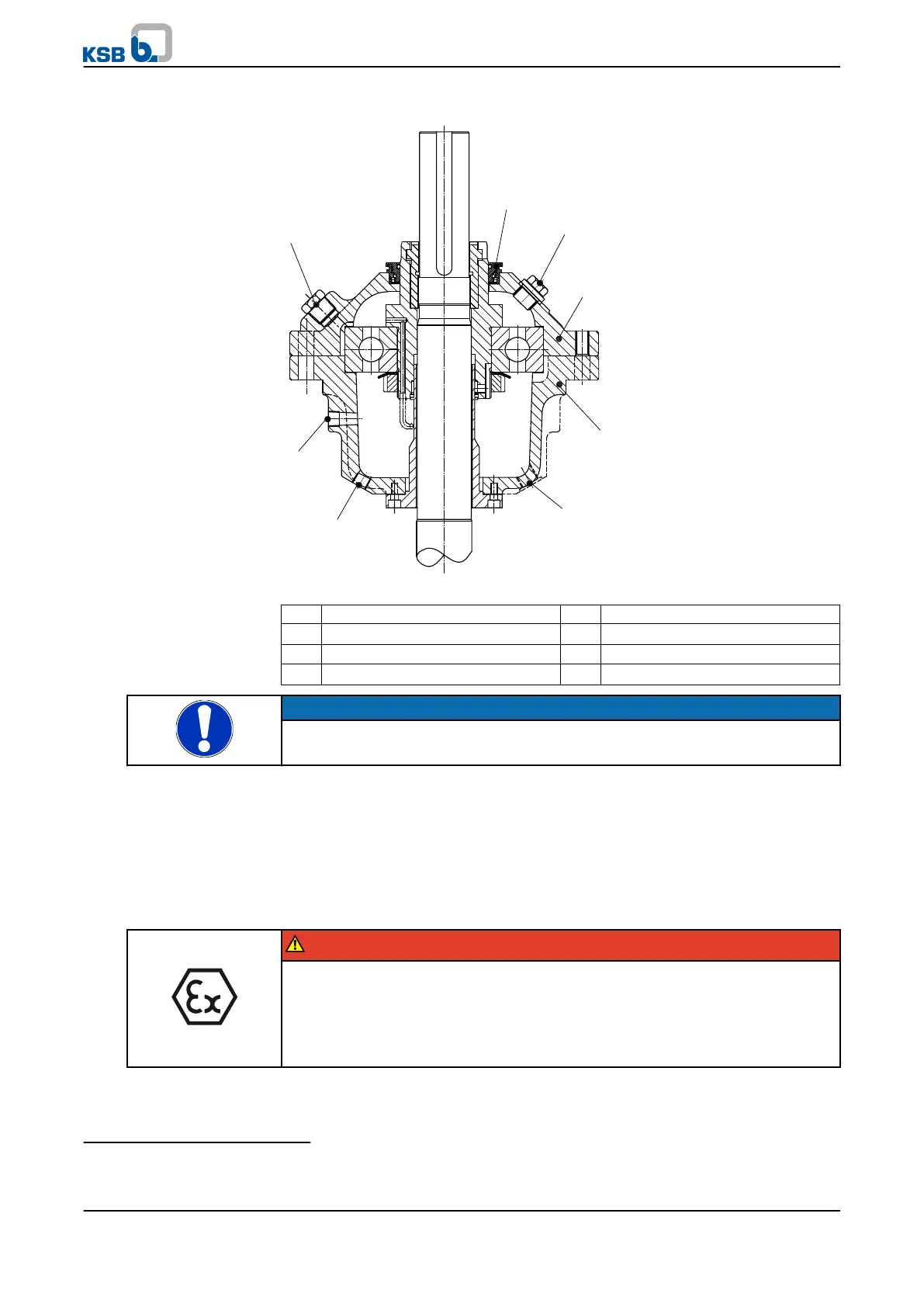

Fig. 11: Connecting the oil mist lubrication
1 Bearing temperature monitoring 2 Plugged connection
3 Oil drain G
1
/
4
" NPT 4 Plugged connection
5 Bearing housing 6 Bearing cover
7 Oil inlet G
3
/
8
" 8 Seal element
NOTE
Always observe the instructions of the lubricating system manufacturer. Especially
observe the information on dosing and oil quantity!
1. Remove the plug at the oil inlet.
2. Connect the inlet pipes of the oil mist lubrication system.
3. Remove the plug at the oil drain.
4. Connect the drain line. This line will return the oil to the oil mist lubrication
system.
6.1.3 Priming and venting the pump and can
DANGER
Shaft seal failure caused by dry running
Explosion hazard!
▷
Prime the suction and discharge lines, pump and auxiliary lines
8)
with the fluid
handled.
▷ Prior to start-up, vent the pump, seal housing and suction line.
1. Close all drain holes and drain lines.
8)
If any
