KTM 1290 Super Duke R User Manual

12 SUSPENSION SETTING 81
12.1 Fork/shock absorber
500347-10

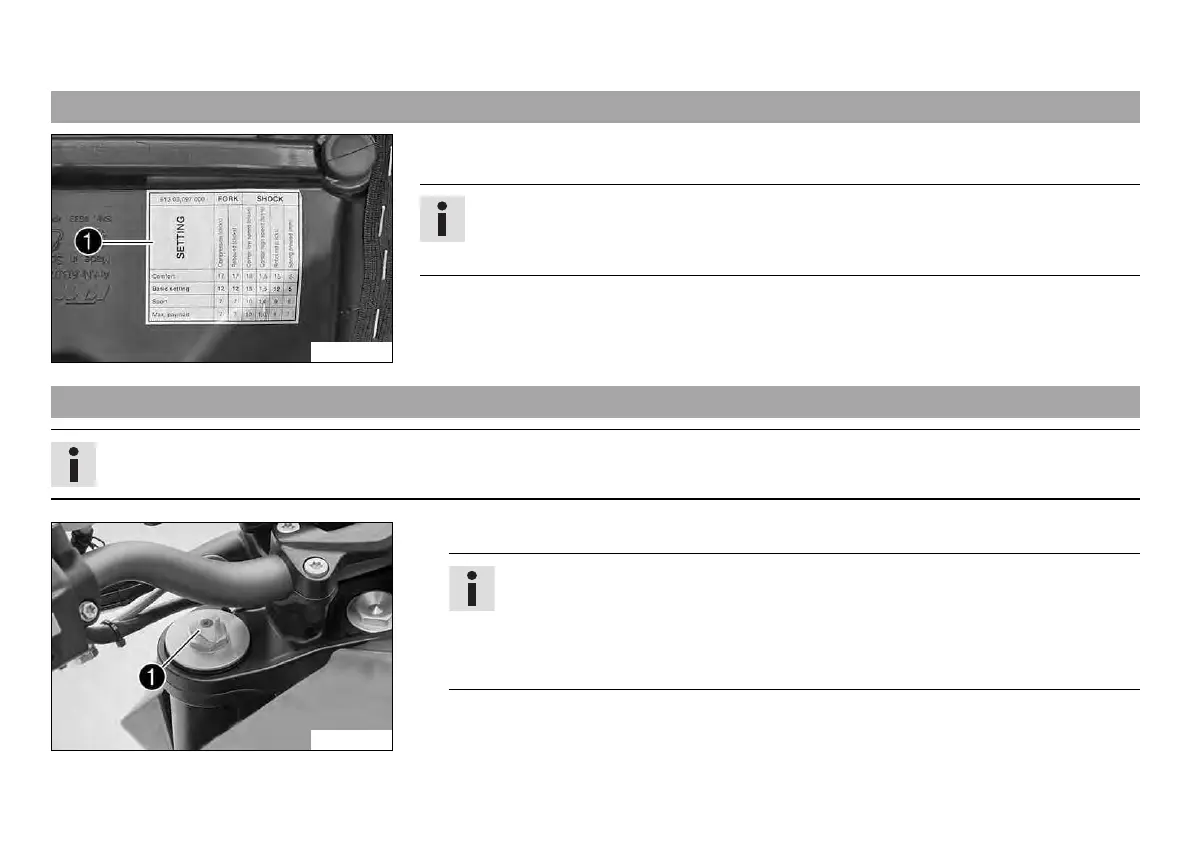

The fork and the shock absorber offer many options of adapting the suspension to the riding
style and the payload.
Info
The recommendations for the suspension setting are shown in Table
1
. The table
is located on the underside of the front rider's seat.
These adjustments are guidelines and should always be the basis for a suspension setting.
If the guidelines are not adhered to, the riding characteristics could deteriorate, particularly
at high speeds.
12.2 Adjusting the compression damping of the fork
Info
The hydraulic compression damping determines the fork suspension behavior.
500310-10
–
Turn the white adjusting screw
1
all the way clockwise.
Info
Adjusting screw
1
is located at the upper end of the left fork leg.
The compression damping is located in the left fork leg COMP (white adjusting
screw). The rebound damping is located in the right fork leg REB (red adjusting
screw).
– Turn counterclockwise by the number of clicks corresponding to the fork type.

KTM 1290 Super Duke R Specifications

General

Displacement	1301 cc
Transmission	6-speed
Seat Height	835 mm
Fuel Tank Capacity	16 liters
Dry Weight	189 kg
Starter	Electric starter
Fuel System	Electronic fuel injection
Traction Control	MTC (Motorcycle Traction Control), lean-angle sensitive
Wheelbase	1482 mm
Front Tire	120/70 ZR 17
Rear Tire	200/55 ZR 17
Engine Type	V-Twin, 4-stroke
Power	180 hp (132 kW) @ 9500 rpm
Torque	140 Nm
Frame	Chromium-Molybdenum steel frame, powder coated
Front Suspension	WP APEX 48
Rear Suspension	WP APEX monoshock
Rear Brake	Brembo two-piston caliper, 240 mm disc
Front Brake	Dual 320 mm discs, Brembo Stylema monobloc calipers
ABS	Bosch 9.1 MP (incl. Cornering-ABS and Supermoto mode)
