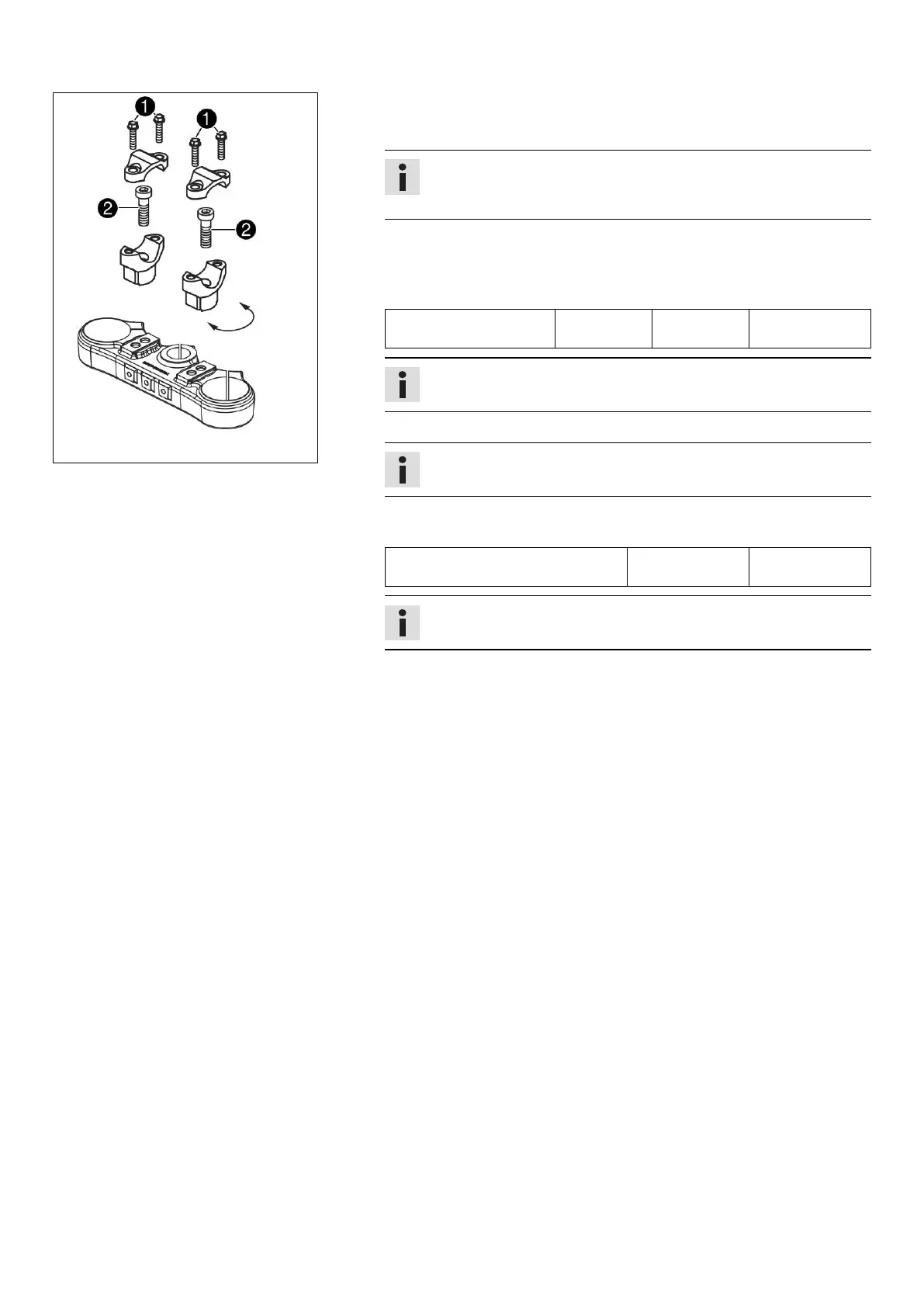

Remove screws

. Take off the handlebar clamps. Remove the handlebar and
lay it to one side.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
–
Remove screws

. Remove the handlebar support.
– Place the handlebar support in the required position. Mount and tighten
screws

.
Guideline
Screw, handlebar support M10 40 Nm
(29.5 lbf ft)
Loctite
®
243™
Info
Position the left and right handlebar supports evenly.
– Position the handlebar.
Info
Make sure the cables and wiring are positioned correctly.
–
Position the handlebar clamps. Mount screws

and tighten evenly.
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
Info
Make sure the gap widths are even.
