KTM 200 EXC - 15.4 Changing the Main Fuse (All 200;250;300 Models)

15 ELECTRICAL SYSTEM 97

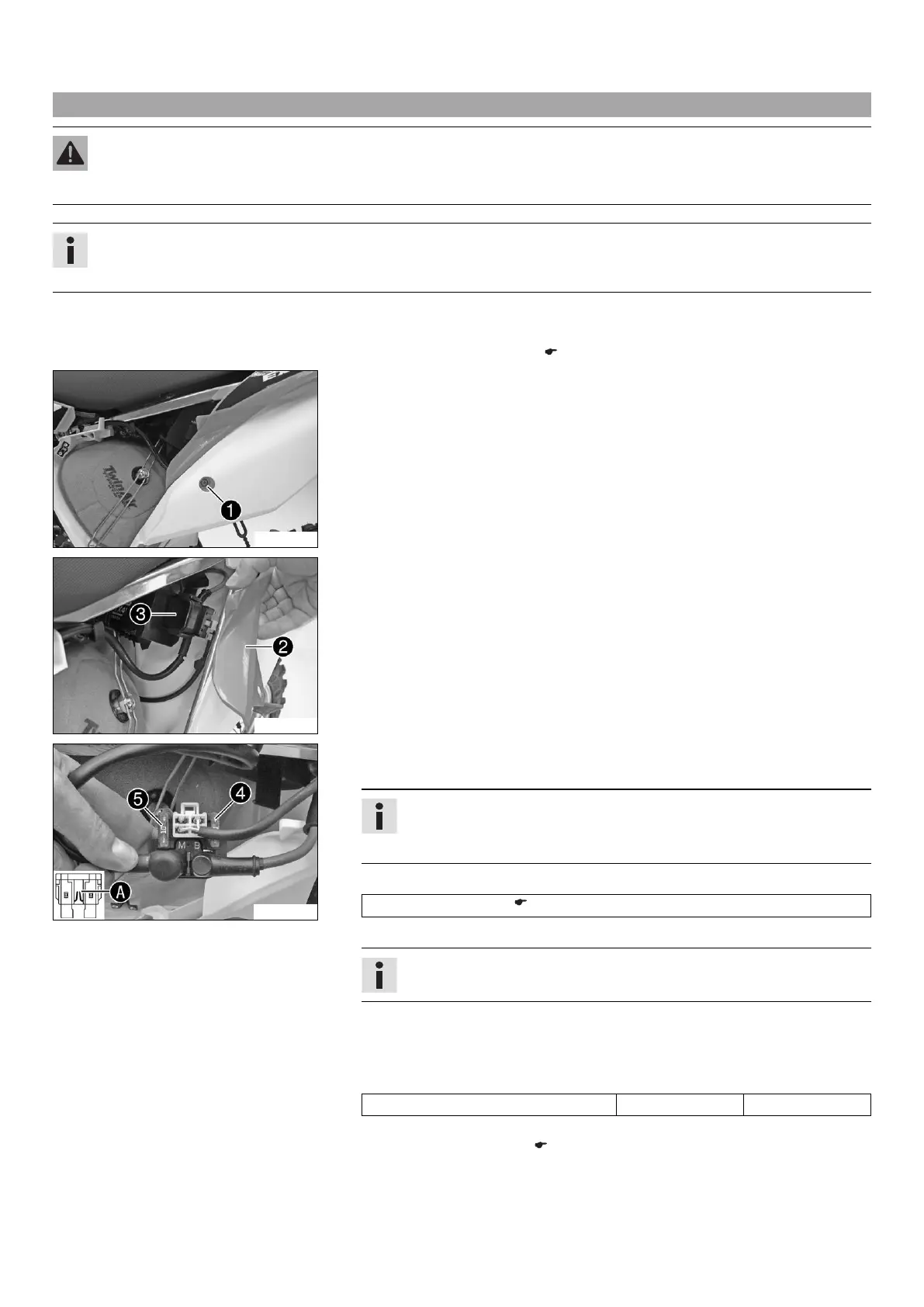

15.4 Changing the main fuse (All 200/250/300 models)
Warning
Fire hazard The electrical system can be overloaded if the wrong fuses are used.
– Use only fuses with the prescribed amperage. Never bypass or repair fuses.
Info
The main fuse protects all power consumers of the vehicle. It is located in the starter relay housing under the air filter box
cover.
Preparatory work
– Switch off all power consumers and the engine.
– Remove the air filter box lid. ( p. 67)
101395-10
Main work
–
Remove screw

.
101396-10
–
Lift rear fairing

slightly and pull starter relay

out of the holder.
B01226-10
– Remove the protection caps.
–
Remove the faulty main fuse

.
Info
A defective fuse is indicated by a burned-out fuse wire

.
A reserve fuse

is located in the starter relay.
– Fit a new main fuse.
Fuse (58011109110) ( p. 125)
– Check the functioning of the electrical equipment.
Tip
Insert the spare fuse so that it is available if needed.
– Fit the protection caps.
– Mount the starter relay onto the holder and lay the cable.
– Position the rear fairing. Mount and tighten the screw.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Finishing work
– Install the air filter box lid. ( p. 67)
