15 ELECTRICAL SYSTEM 134

L02162-10

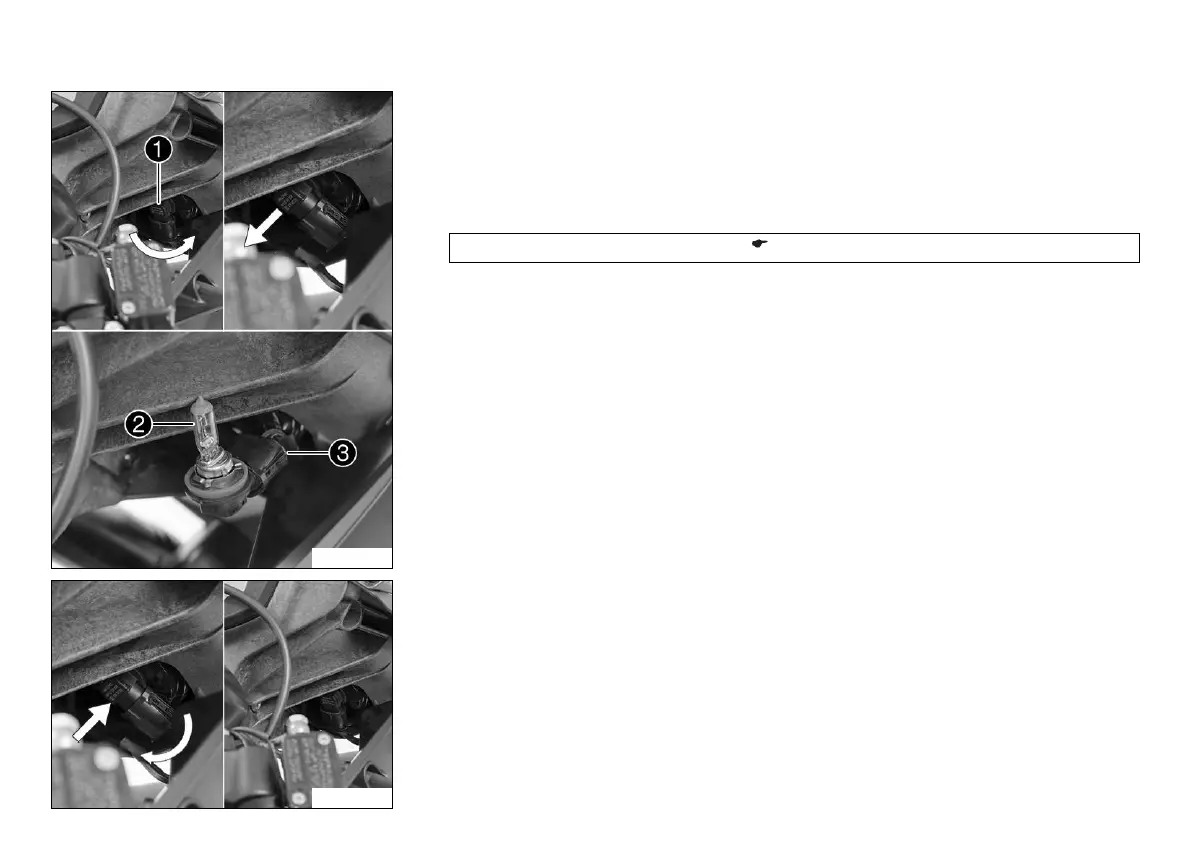

Main work

–

Turn socket



counterclockwise.

–

Pull the socket with high beam bulb



out of the headlight housing.

–

Disconnect the socket with the high beam bulb from connector



and remove.

– Connect the new socket with the high beam bulb to the connector.

High beam (H11 / Sockel PGJ19-2) ( p. 177)

L02165-10

– Position the socket with the high beam bulb in the headlight housing.

– Turn the socket clockwise.

– Check that the lighting is functioning properly.
