7 COMBINATION INSTRUMENT 53

7.20 Setting kilometers or miles

Info

Make the country-specific setting.

Condition

The ignition is on.

The motorcycle is stationary.

401303-01

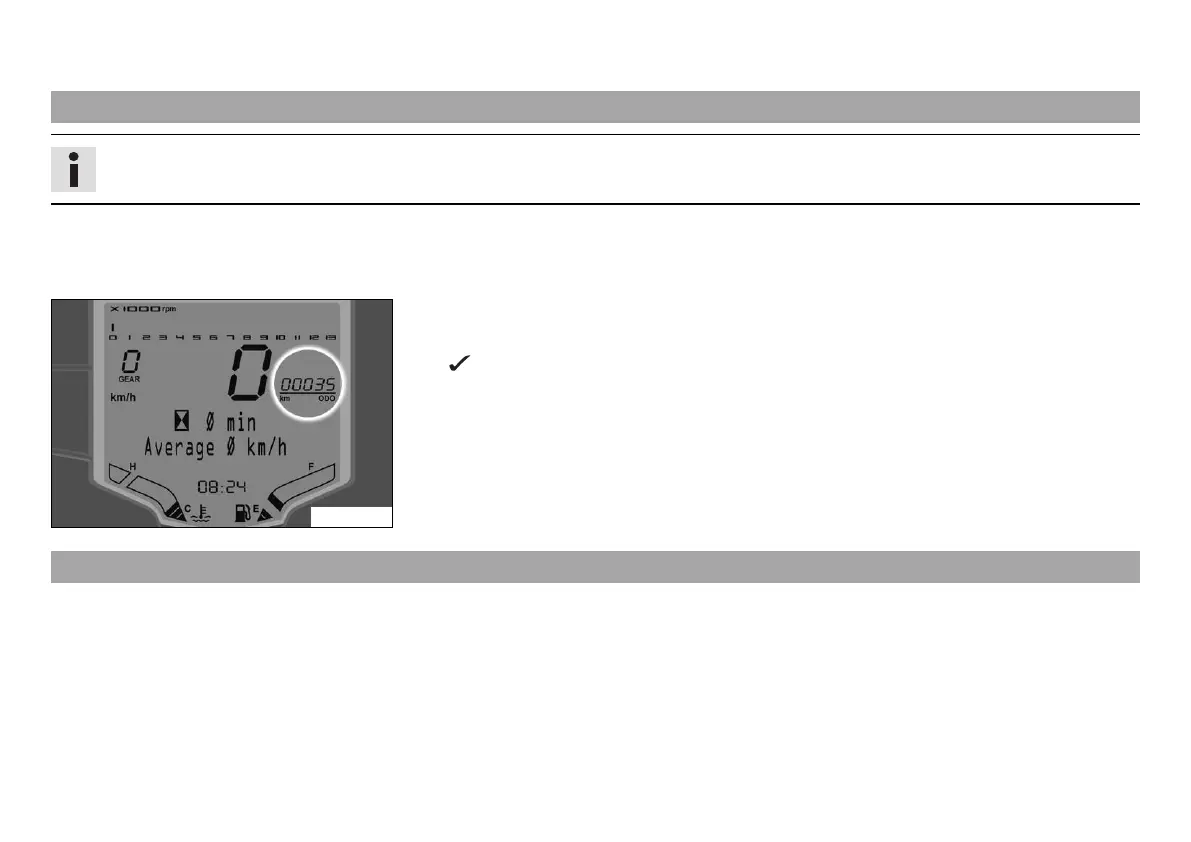

– Press the MODE button briefly and repeatedly until ODO appears on the display.

– Press the MODE button for 5 - 10 seconds.

The display changes from km/h to mph or from mph to km/h.

7.21 Setting the time

Condition

The ignition is on.

The motorcycle is stationary.
