KTM 250 EXC 2018 User Manual

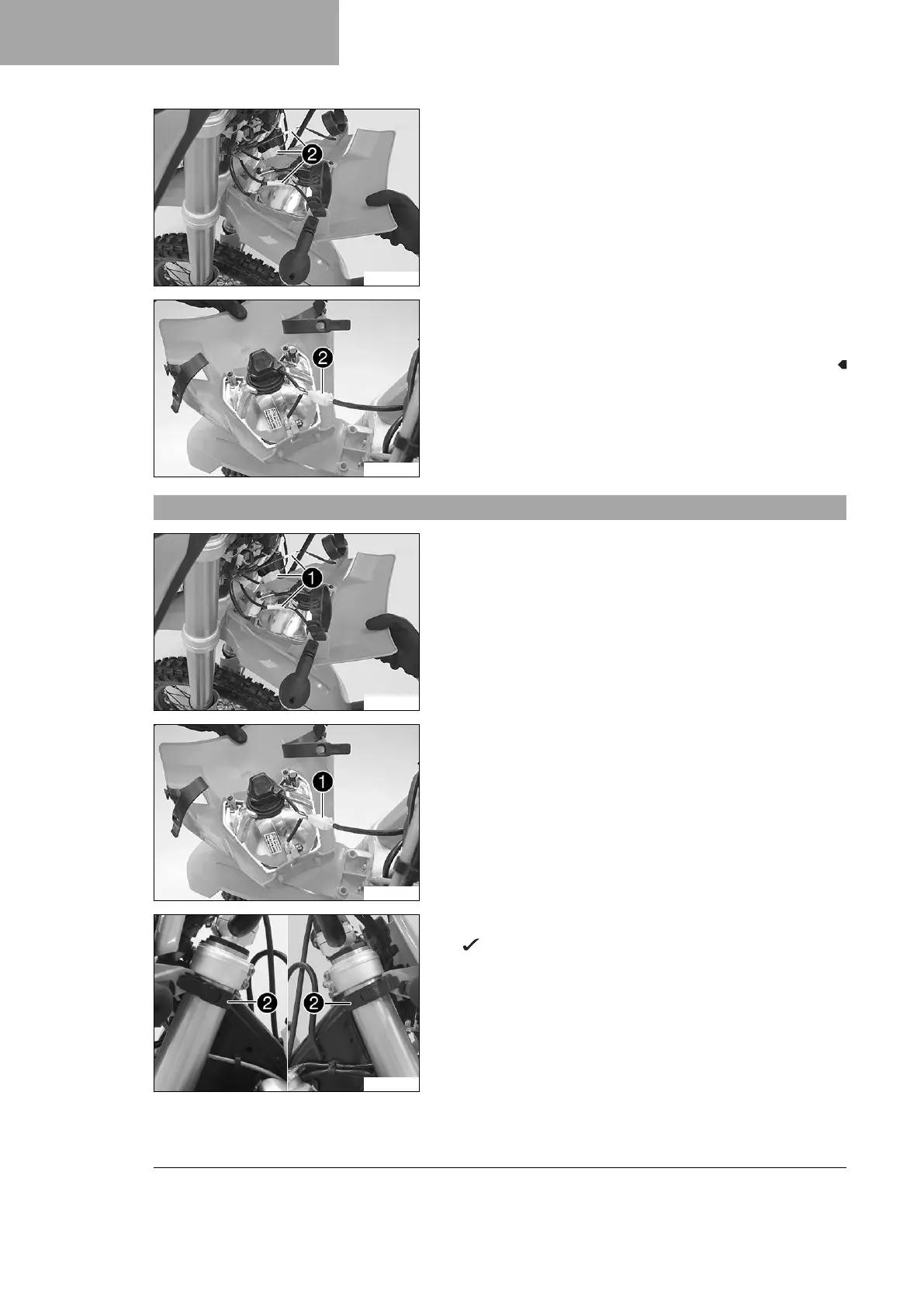

15 ELECTRICAL SYSTEM
120
E00356-10
(All EXC models)
–
Detach plug-in connectors
2
and take off the headlight
mask with the headlight.
E00357-10
(All XC‑W models)
–
Detach plug-in connector
2
and take off the headlight
mask with the headlight.
15.6 Installing the headlight mask with the headlight
E00356-11
Main work
(All EXC models)
–
Connect plug-in connectors
1
.
E00357-11
(All XC‑W models)
–
Connect plug-in connector
1
.
E00355-11
–
Position the headlight mask and fix it with rubber bands
2
.
The holding lugs engage in the fender.
– Position the brake line and wiring harness in the brake line
guide.

KTM 250 EXC 2018 Specifications

General

Displacement	249 cm³
Bore x Stroke	66.4 mm x 72 mm
Transmission	6-speed
Fuel System	Carburetor
Cooling	Liquid cooled
Front Suspension	WP Xplor 48 upside-down fork
Rear Suspension	WP Xplor PDS shock absorber
Rear Tire	140/80-18
Front Wheel	1.60 x 21"
Rear Wheel	2.15 x 18"
Ground Clearance	370 mm
Seat Height	960 mm
Engine Type	1-cylinder, 2-stroke
Clutch	Wet multi-disc clutch, hydraulically operated
Frame	Central tube frame made of chrome molybdenum steel
Front Brake	Disc brake
Rear Brake	Disc brake, 220 mm
Front Tire	90/90-21
Starter	Kick and electric starter
Fuel Tank Capacity	9 liters
