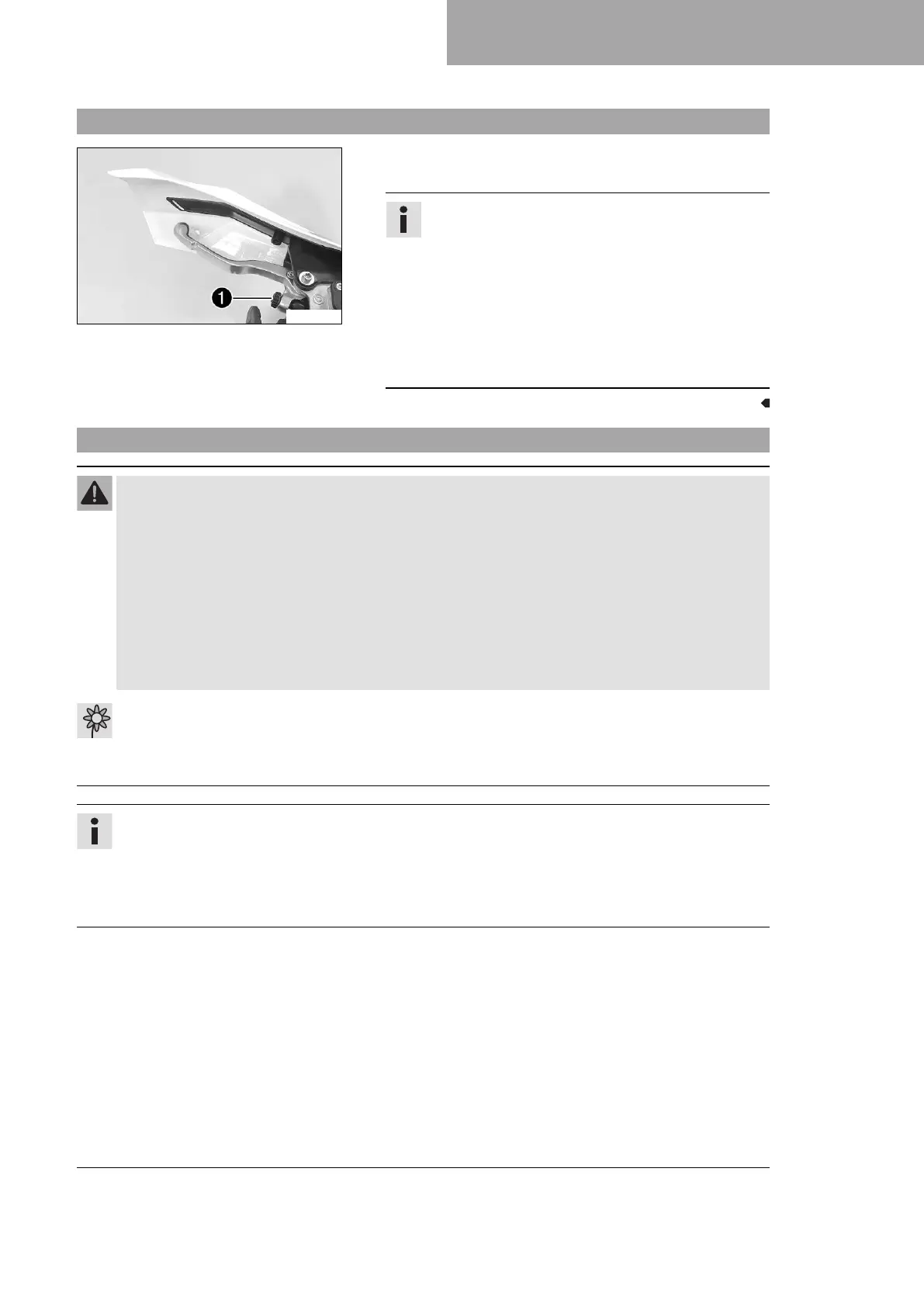

12 SERVICE WORK ON THE CHASSIS
91
12.43 Adjusting the basic position of the clutch lever
E00842-10
Adjust the basic position of the clutch lever to your hand size
by turning adjusting screw
1
.
Info
Turn the adjusting screw counterclockwise to decrease
the distance between the clutch lever and the handle-
bar.
Turn the adjusting screw clockwise to increase the
distance between the clutch lever and the handlebar.
The range of adjustment is limited.
Turn the adjusting screw by hand only, and do not
apply any force.
Do not make any adjustments while riding.
12.44 Checking/correcting the fluid level of the hydraulic clutch
Warning
Skin irritationBrake fluid causes skin irritation.
Keep brake fluid out of the reach of children.
Wear suitable protective clothing and safety glasses.
Do not allow brake fluid to come into contact with the skin, the eyes or clothing.
Consult a doctor immediately if brake fluid has been swallowed.
Rinse the affected area with plenty of water in the event of contact with the skin.
Rinse eyes thoroughly with water immediately and consult a doctor if brake fluid comes into contact
with the eyes.
If brake fluid spills on to your clothing, change the clothing.
Warning
Environmental hazardHazardous substances cause environmental damage.
Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with
the applicable regulations.
Info
The fluid level rises with increasing wear of the clutch facing discs.
Never use DOT 5 brake fluid. It is silicone-based and purple in color. Oil seals and clutch lines are not
designed for DOT 5 brake fluid.
Avoid contact between brake fluid and painted parts. Brake fluid attacks paint.
Only use clean brake fluid from a sealed container.
