KTM 250 EXC 2018 User Manual

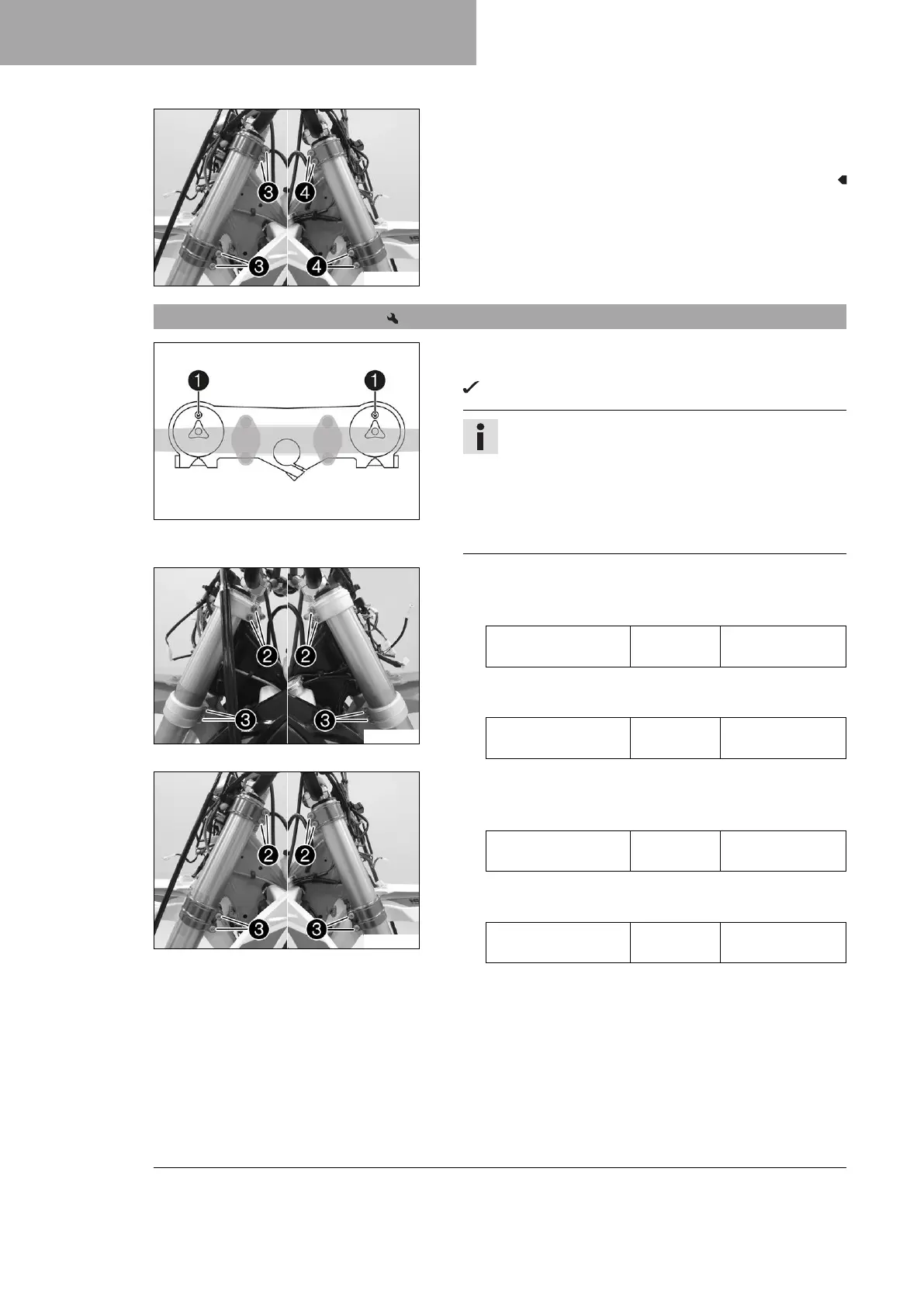

12 SERVICE WORK ON THE CHASSIS
66
E00377-10
(All Six Days models)
–
Loosen screws
3
. Take out the left fork leg.
–
Loosen screws
4
. Take out the right fork leg.
12.8 Installing the fork legs
H01595-10
Main work
– Position the fork legs.
Bleeder screws
1
are positioned toward the front.
Info
The rebound damping is located in right fork leg REB
(red adjusting screw). The compression damping is
located in left fork leg COM (white adjusting screw).
Grooves are milled into the side of the upper end of the
fork legs. The second milled groove (from the top) must
be flush with the top edge of the upper triple clamp.
V00334-11
(All standard EXC/XC-W models)
–
Tighten screws
2
.
Guideline
Screw, top triple
clamp
M8 20 Nm
(14.8 lbf ft)
–
Tighten screws
3
.
Guideline
Screw, bottom triple
clamp
M8 15 Nm
(11.1 lbf ft)
V00355-11
(All Six Days models)
–
Tighten screws
2
.
Guideline
Screw, top triple
clamp
M8 17 Nm
(12.5 lbf ft)
–
Tighten screws
3
.
Guideline
Screw, bottom triple
clamp
M8 15 Nm
(11.1 lbf ft)

KTM 250 EXC 2018 Specifications

General

Displacement	249 cm³
Bore x Stroke	66.4 mm x 72 mm
Transmission	6-speed
Fuel System	Carburetor
Cooling	Liquid cooled
Front Suspension	WP Xplor 48 upside-down fork
Rear Suspension	WP Xplor PDS shock absorber
Rear Tire	140/80-18
Front Wheel	1.60 x 21"
Rear Wheel	2.15 x 18"
Ground Clearance	370 mm
Seat Height	960 mm
Engine Type	1-cylinder, 2-stroke
Clutch	Wet multi-disc clutch, hydraulically operated
Frame	Central tube frame made of chrome molybdenum steel
Front Brake	Disc brake
Rear Brake	Disc brake, 220 mm
Front Tire	90/90-21
Starter	Kick and electric starter
Fuel Tank Capacity	9 liters
