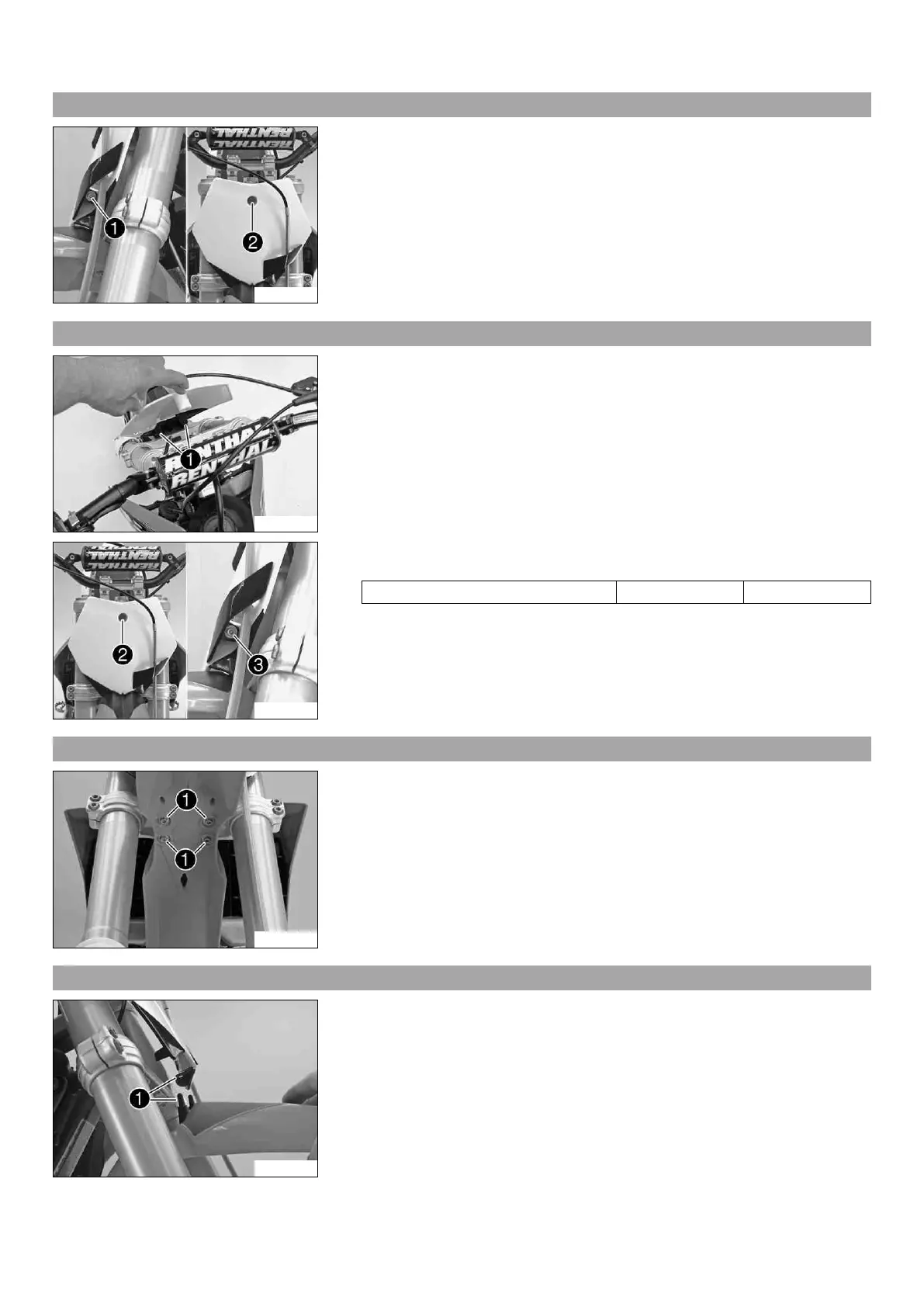

11.13 Dismounting the start number plate
C00050-10
– Remove screw 1 and take off clamp.
– Remove screw 2. Remove the start number plate.
11.14 Installing the start number plate
C00058-10
– Position the start number plate with the drill holes onto the holding lugs 1 of the
fender.
C00052-10
– Mount and tighten screw 2.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Position the brake line. Put the clamp on, mount and tighten screw 3.
11.15 Dismounting the front fender
601982-10
– Remove screws 1. Remove the front fender.
11.16 Installing the front fender
101938-10
– Position the fender with holding lugs 1 into the drill holes on the start number
plate.
