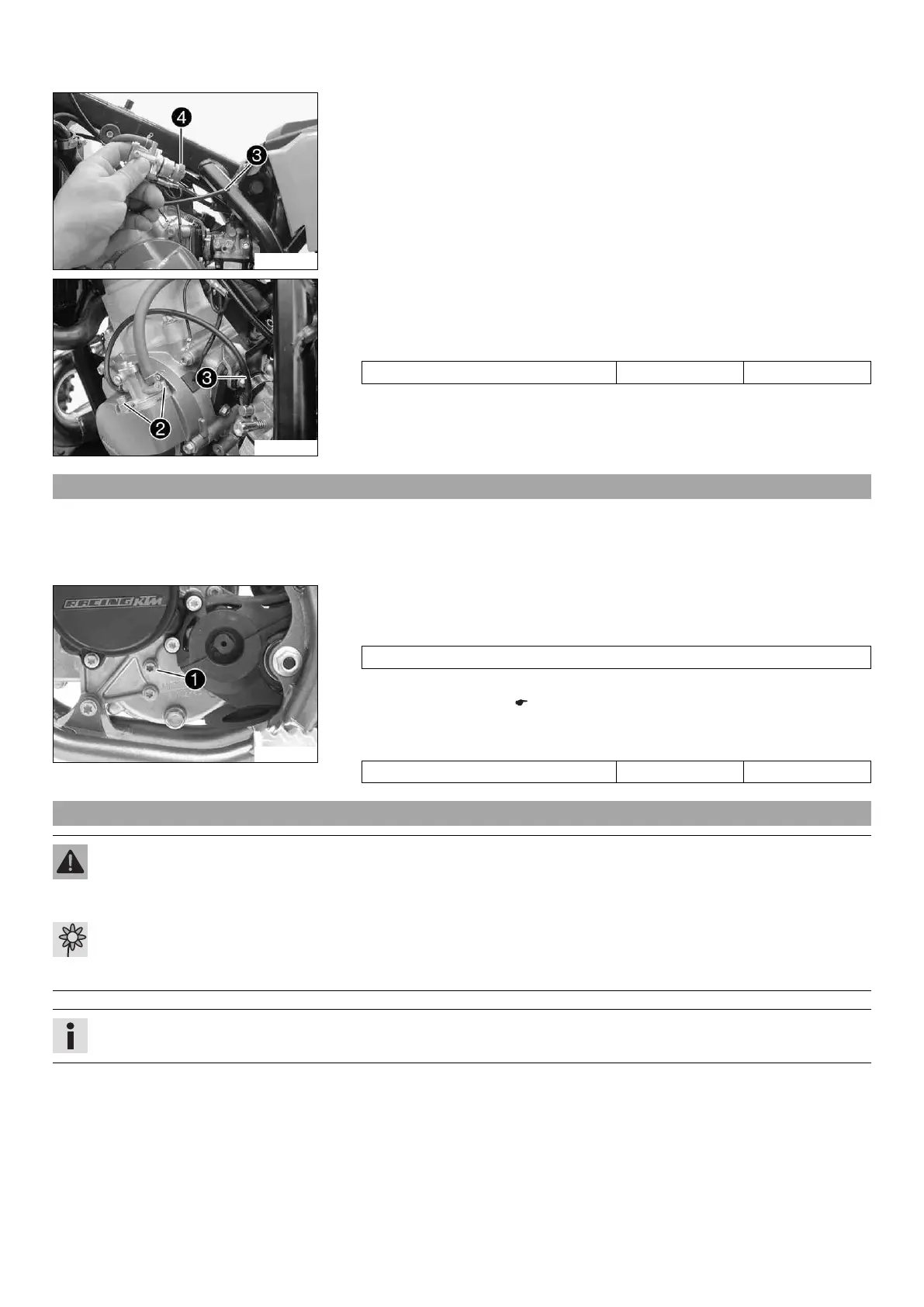

16 SERVICE WORK ON THE ENGINE 69
300653-10
– Turn the oil pump gear 4 counterclockwise until oil flows out of oil line 3 without
bubbles.
300651-10
– Connect oil line 3.
– Position the oil pump.
– Mount and tighten screws 2.
Guideline
Screw, oil pump M5 6 Nm (4.4 lbf ft)
16.3 Checking the gear oil level
Condition
The motor is cold.
Preparatory work
– Stand the motorcycle upright on a horizontal surface.
S00005-10
Main work
– Remove gear oil level check screw 1.
– Check the gear oil level.
A small amount of gear oil should flow out.
» If no gear oil flows out:
–
Add gear oil. x ( p. 70)
– Mount and tighten the gear oil level check screw.
Guideline
Screw, gear oil level check M6 6 Nm (4.4 lbf ft)
16.4 Changing the gear oil x
Warning
Danger of scalding Engine oil and gear oil get very hot when the motorcycle is ridden.
– Wear appropriate protective clothing and safety gloves. In case of burns, rinse immediately with lukewarm water.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Drain the gear oil only when the engine is warm.
Preparatory work
– Stand the motorcycle on its side stand on a horizontal surface.
