11 SERVICE WORK ON THE CHASSIS 42
401036-01

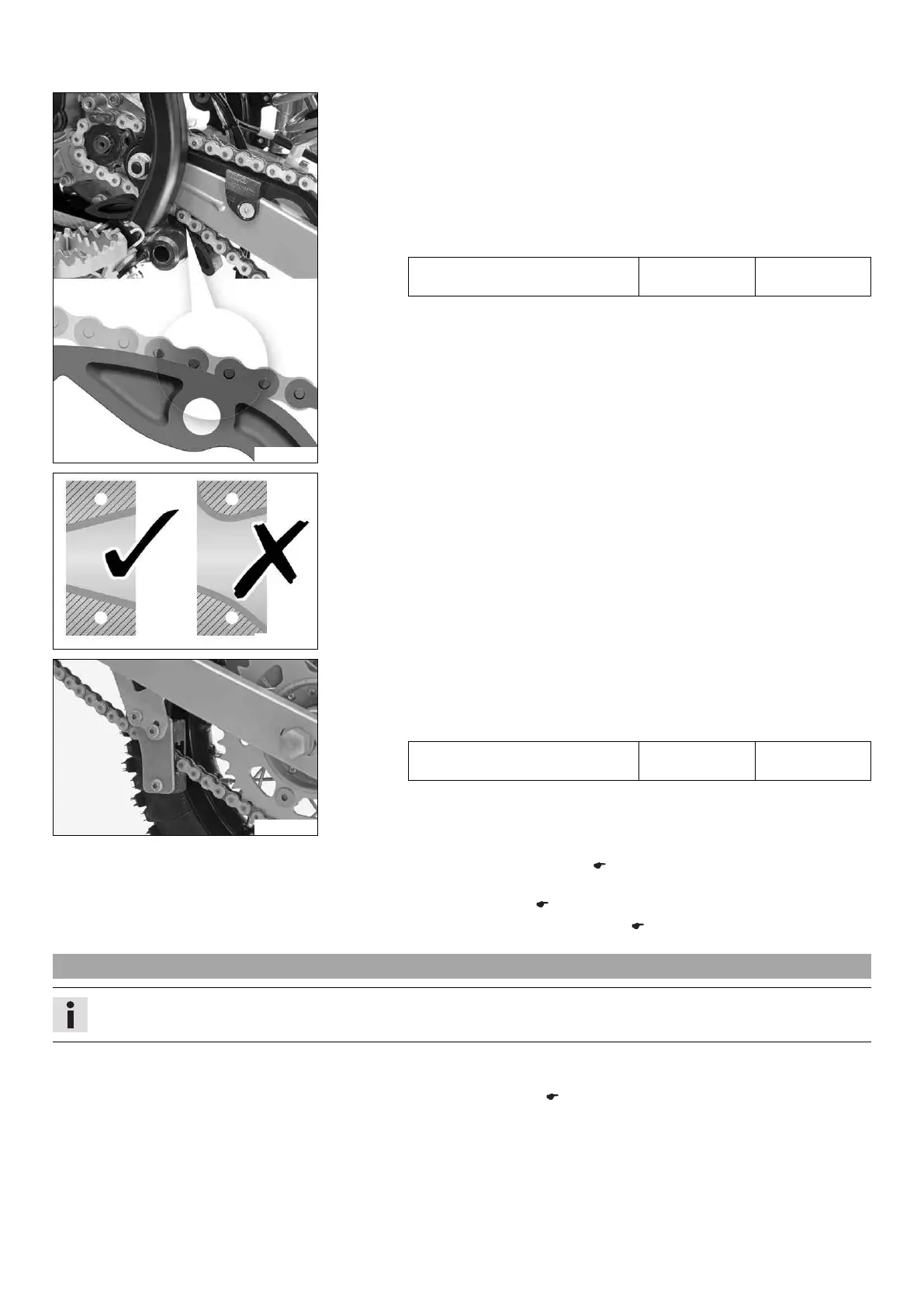

– Check the chain sliding piece for wear.
» If the lower edge of the chain pins is in line with or below the chain sliding
piece:
–
Change the chain sliding piece. x
– Check the chain sliding piece for tightness.
» If the chain sliding piece is loose:
– Tighten the chain sliding piece.
Guideline
Screw, chain sliding piece M8 15 Nm
(11.1 lbf ft)
401034-01
– Check the chain guide for wear.
» If the chain guide is worn down to the top or bottom edge:
–
Change the chain guide. x
101948-01
– Check the chain guide for tightness.
» If the chain guide is loose:
– Tighten the chain guide.
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
Finishing work
–
Install the engine sprocket cover. x ( p. 38)
(50 SX)
– Install the chain guard. ( p. 38)
– Remove the motorcycle from the lift stand. ( p. 27)
11.36 Adjusting the chain guide x
Info
The size of the chain wheel varies with the number of teeth. The chain guide can be adjusted on small sprockets.
Preparatory work
(50 SX)
– Remove the chain guard. ( p. 37)
