11 SERVICE WORK ON THE CHASSIS 35

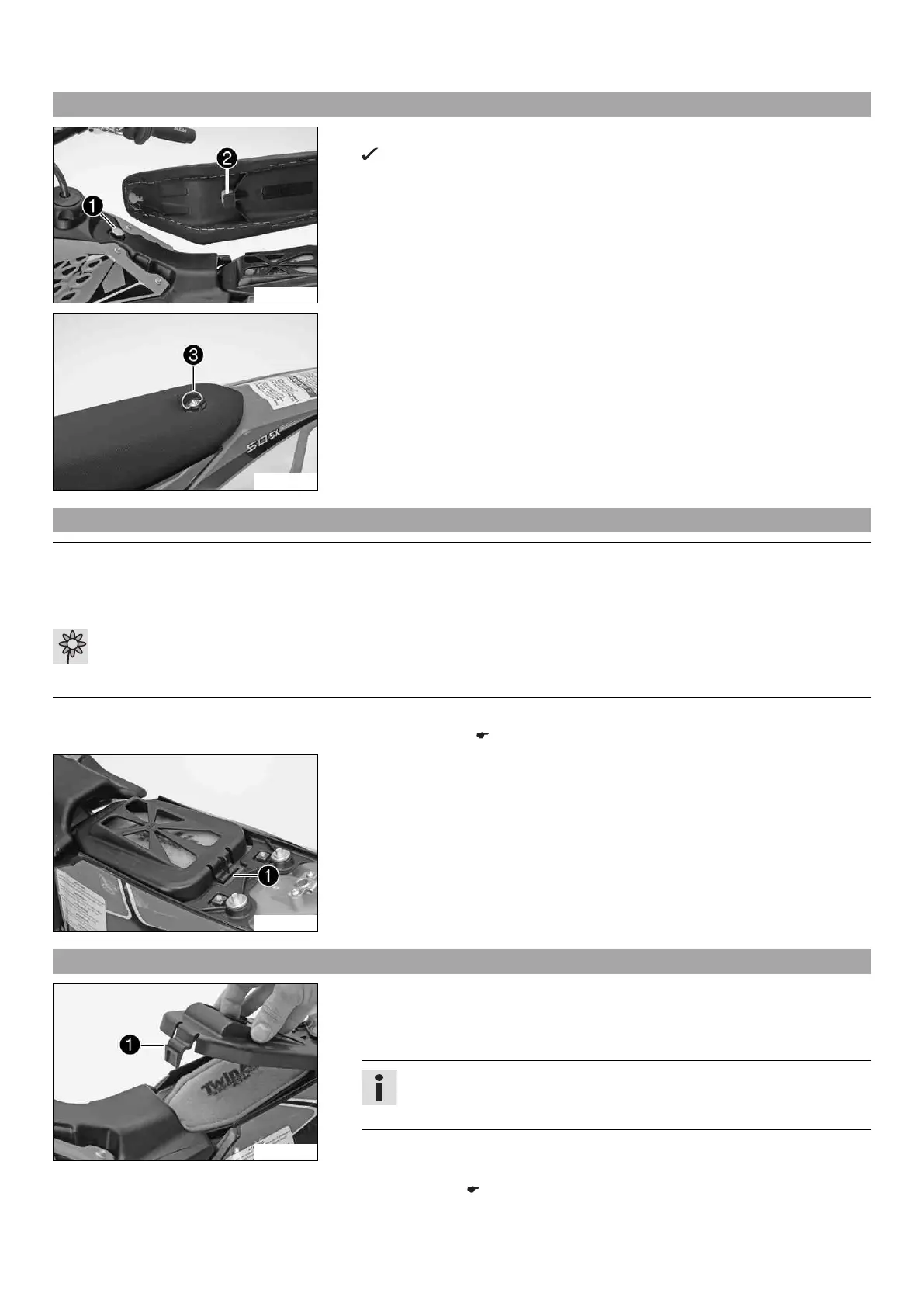

11.20 Mounting the seat
101941-10
– Hook the seat onto screw 1 and lower the seat at the rear while pushing it forward.
Projection 2 hooks into the fuel tank.
101940-11
– Close quick release 3.
11.21 Removing the air filter x
Note
Engine failure Unfiltered intake air has a negative effect on the service life of the engine.
– Never ride the vehicle without an air filter since dust and dirt can get into the engine and result in increased wear.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Preparatory work
– Remove the seat. ( p. 34)
101942-10
Main work
– Press the rear holding lugs 1 together slightly and swing the air filter box cover
upward. Pull out the front holding lug and take off the air filter box cover.
– Take off the air filter.
11.22 Installing the air filter x
101943-10
Main work
– Position the clean air filter.
– Position the rear holding lug. Lower the air filter box cover and allow the front hold-
ing lug 1 to snap in.
Info
If the air filter is not correctly mounted, dust and dirt can enter the engine
and cause damage.
Finishing work
– Mount the seat. ( p. 35)
