11 SERVICE WORK ON THE CHASSIS 38

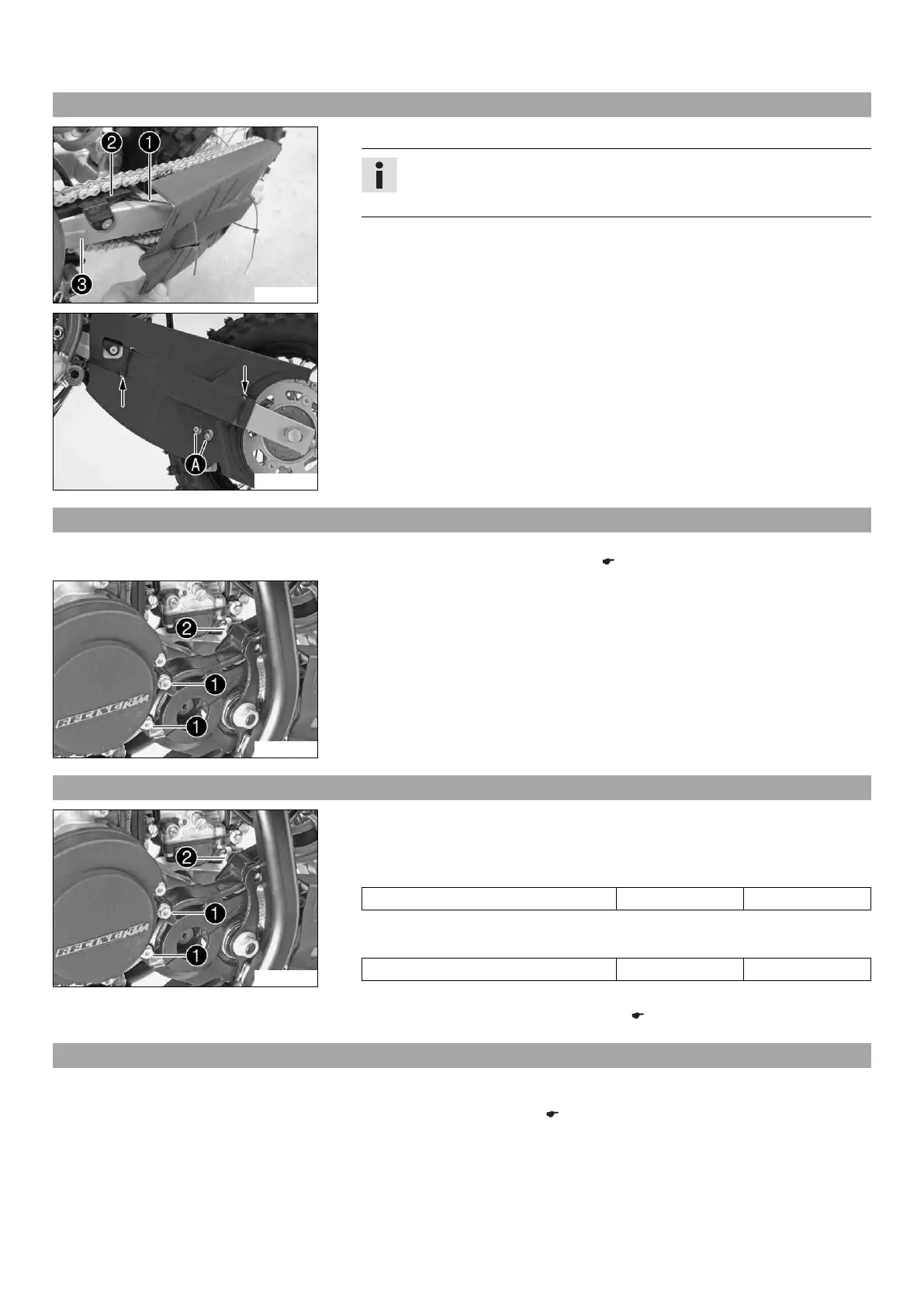

11.28 Installing the chain guard (50 SX)
201947-10
– Position the chain guard. Mount cable binder 1.
Info
The cable binder must be run between chain sliding guard 2 and
swingarm 3.
101945-11
– Mount the cable binder at the rear.
– Align the chain guard so that screws A of the chain guide are visible.
– Tighten the cable binder and cut off the ends.
11.29 Removing the engine sprocket cover x
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 27)
100895-10
Main work
– Remove screws 1.
– Remove screw 2.
– Take off the engine sprocket cover.
11.30 Installing the engine sprocket cover x
100895-10
Main work
– Position the engine sprocket cover. Mount screws 1 but do not tighten yet.
– Mount and tighten screw 2.
Guideline
Screw, engine sprocket cover M8 12 Nm (8.9 lbf ft)
– Tighten screws 1.
Guideline
Screw, engine sprocket cover M6 10 Nm (7.4 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 27)
11.31 Checking the chain for dirt
Preparatory work
(50 SX)
– Remove the chain guard. ( p. 37)
