KTM 50 SX - Checking the Frame; Checking the Swingarm; Checking the Throttle Cable Routing

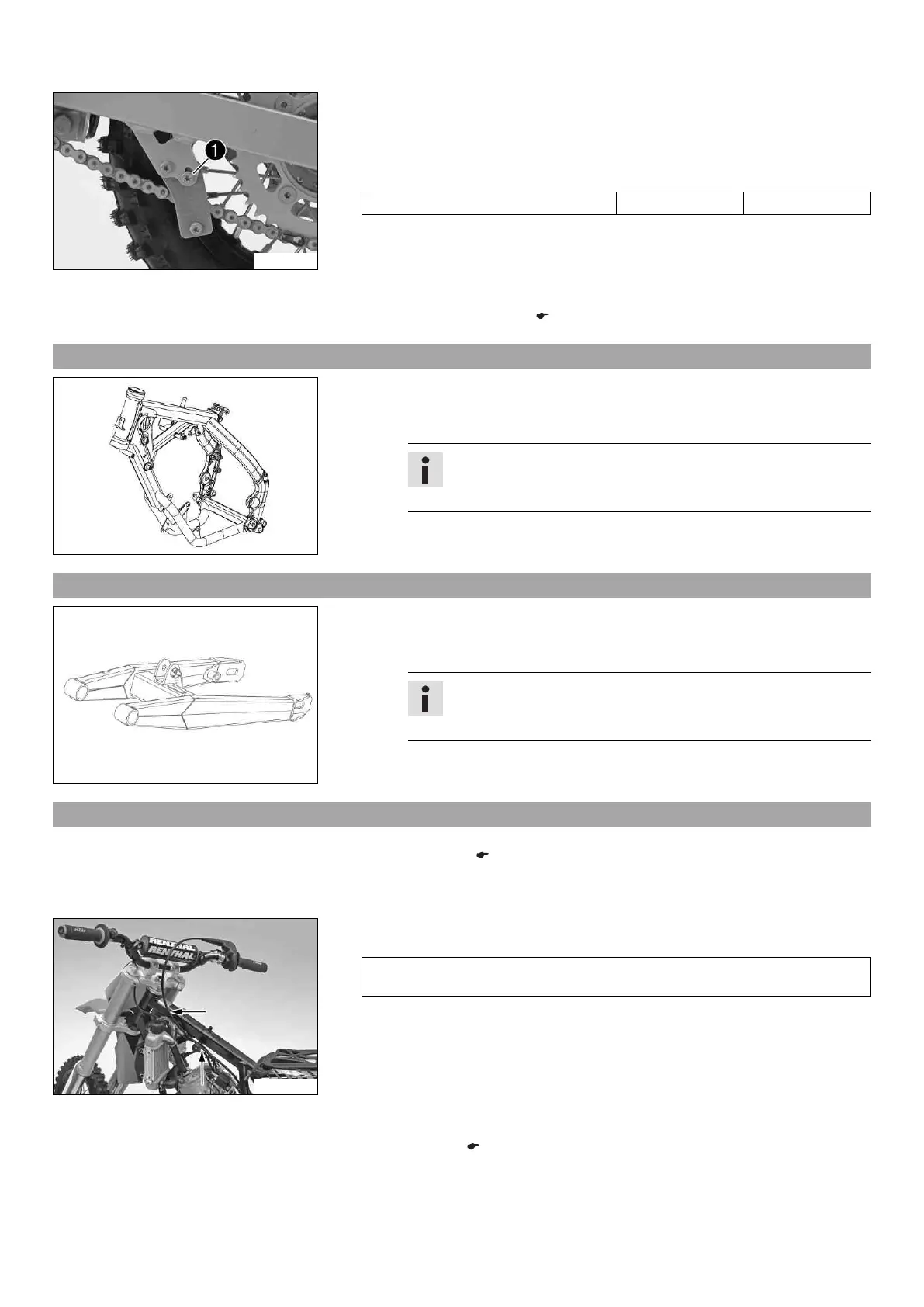

11 SERVICE WORK ON THE CHASSIS 43
101949-10
Main work
– Loosen screw 1.
– Position the chain guide.
– Tighten screw.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Finishing work
(50 SX)
– Install the chain guard. ( p. 38)
11.37 Checking the frame x
601599-01
– Check the frame for cracking and deformation.
» If the frame exhibits cracking or deformation due to a mechanical impact:
–
Change the frame. x
Info
A frame that has been damaged due to a mechanical impact must
always be changed. Repair of the frame is not authorized by KTM.
11.38 Checking the swingarm x
601598-01
– Check the swingarm for damage, cracking, and deformation.
» If the swingarm exhibits damage, cracking, or deformation:
–
Change the swingarm. x
Info
Always replace a damaged swingarm. Repair of the swingarm is not
authorized by KTM.
11.39 Checking the throttle cable routing
Preparatory work
– Remove the seat. ( p. 34)
– Turn the knurled screw on the fuel tap all the way clockwise.
–
Remove the fuel tank. x
C00060-10
Main work
– Check the throttle cable routing.
The throttle cable must be routed to the carburetor behind the handlebars above
the fuel tank bearing.
» If the throttle cable is not routed as specified:
– Correct the throttle cable routing.
Finishing work
–
Install the fuel tank. x
– Mount the seat. ( p. 35)
