KTM 500 EXC SIX DAYS EU 2013 User Manual



 



 

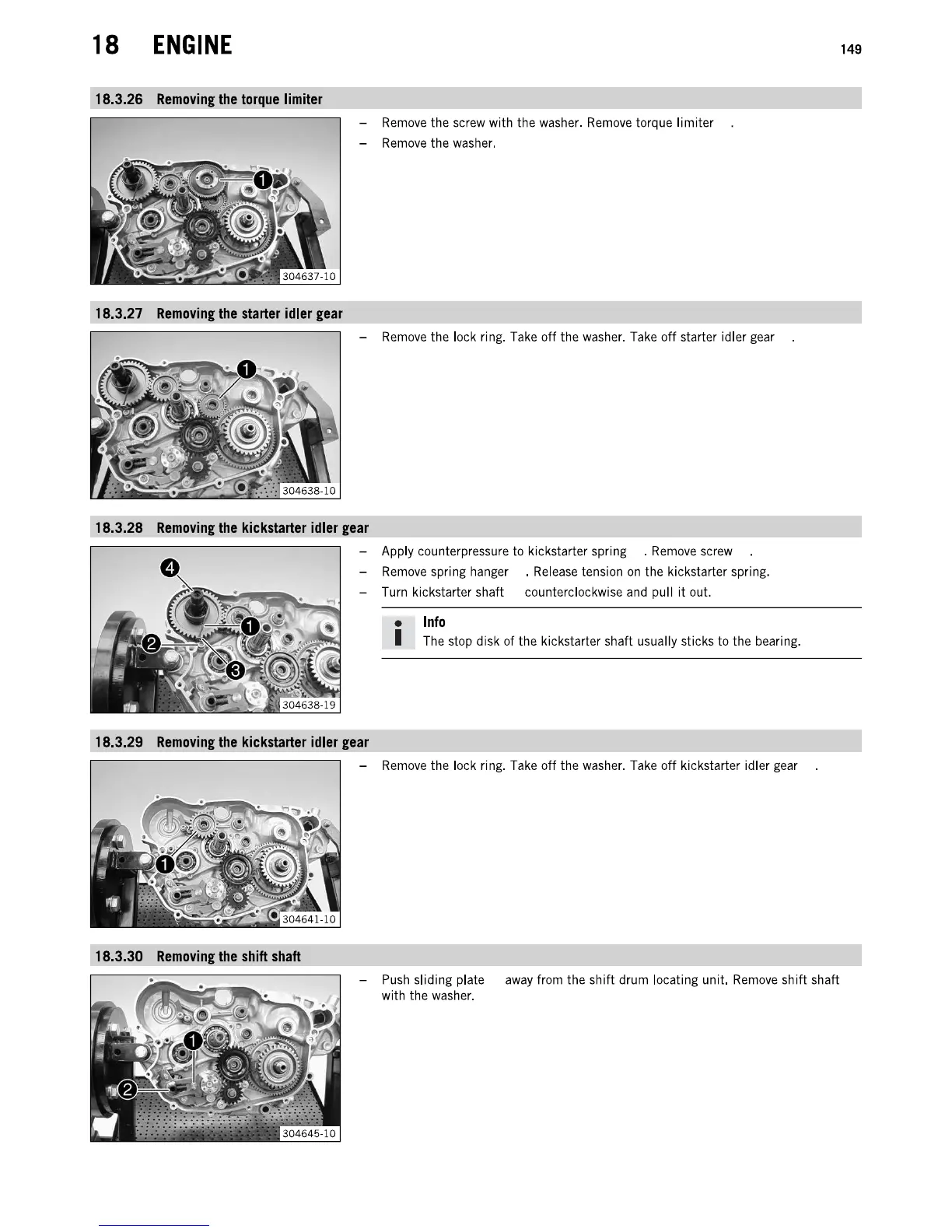

18 ENGINE 149
18.3.26 RelloYilll the torque limiter
- Remove the screw with the washer. Remove torque limiter
-
Remove the washer.
18.3.27 RelloYilll the starter idler lear
- Remove the lock ring. Take off the washer. Take off starter idler gear
18.3.28 RelloYilll the kickstarter idler par
- Apply counterpressure to kickstarter spring . Remove screw .
-
Remove spring hanger . Release tension on the kickstarter spring.
- Turn kickstarter shaft counterclockwise and pull
it out.
• Info
I The stop disk of the kickstarter shaft usually sticks to the bearing.
18.3.29 RelloYilll the kickstarter idler par
- Remove the lock ring. Take off the washer. Take off kickstarter idler gear
18.3.30 RelloYilll the shift shaft
- Push sliding plate away from the shift drum locating unit. Remove shift shaft
with the washer.
