KTM 500 EXC SIX DAYS EU 2013 User Manual

 
 






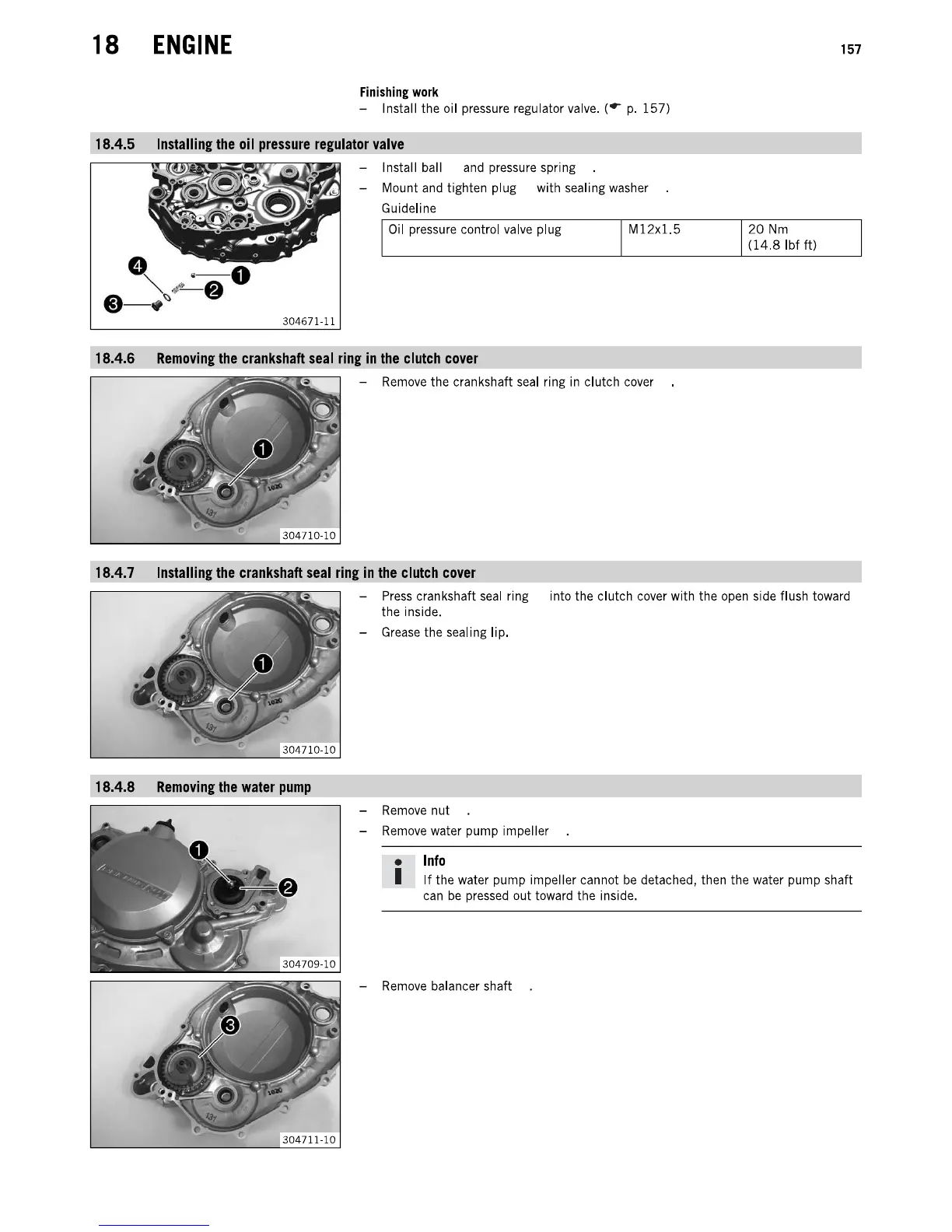

18 ENGINE 157
Finishing work
- Install the oil pressure regulator valve. ( .. p. 157)
18.4.5 Installinll the oil pressure reJIulator valve
- Install ball and pressure spring .
- Mount and tighten plug with sealing washer
Guideline
Oil pressure control valve plug M12x1.5
304671-11
20 Nm
(14.8 Ibf ft)
18.4.6 Rellovlq the crankshaft seal rlnilin the clutch cover
- Remove the crankshaft seal ring in clutch cover
18.4.7 Installinll the crankshaft seal rinll in the clutch cover
18.4.8 Relloviq the water pump
- Press crankshaft seal ring into the clutch cover with the open side flush toward
the inside.
-
Grease the sealing lip.
-
Remove nut
-
Remove waler pump impeller
• Info
I If the water pump impeller cannot be detached, then the water pump shaft
can be pressed out toward the inside.
-
Remove balancer shaft
