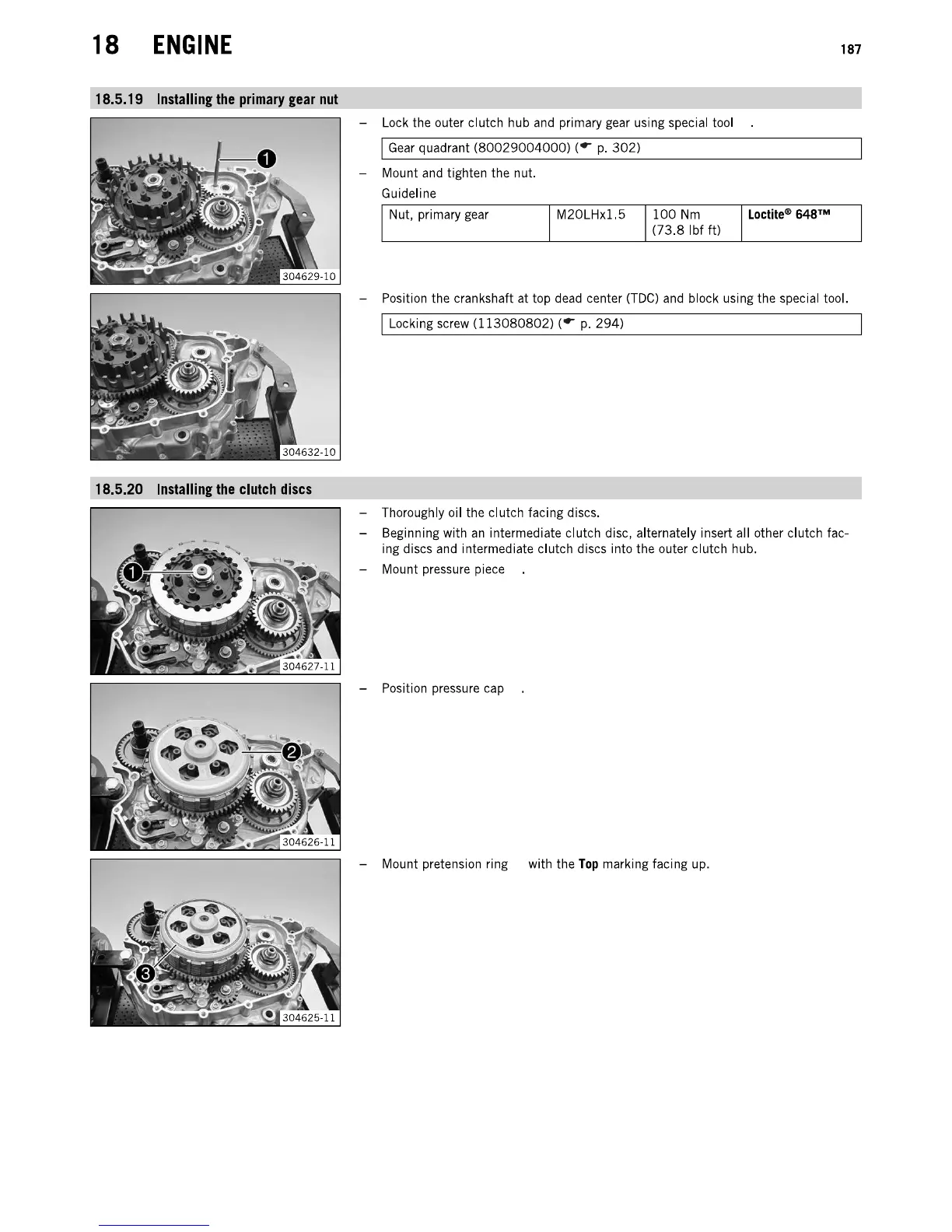

18 ENGINE
18.5.19 Installing the primary gear nut
18.5.20 Inslalilna: the clutch discs
- Lock the outer clutch hub and primary gear using special tool
I Gear quadrant (80029004000) ('r p. 302)
- Mount and tighten the nut.
Guideline
Nut, pri mary gear M20LHx1.5
100 Nm
(73.8 Ibf It)
187
Loctile- 648'"
- Position the crankshaft at top dead center (TDe) and block using the special tool.
I Locking screw (113080802) ( .. p. 294)
- Thoroughly oil the clutch facing discs.
- Beginning with
an intermediate clutch disc, alternately insert all other clutch fac·
ing discs and intermediate clutch discs into the outer clutch hub.
- Mount pressure piece
- Position pressure cap
- Mount pretension ring with the
Top marking facing up.
