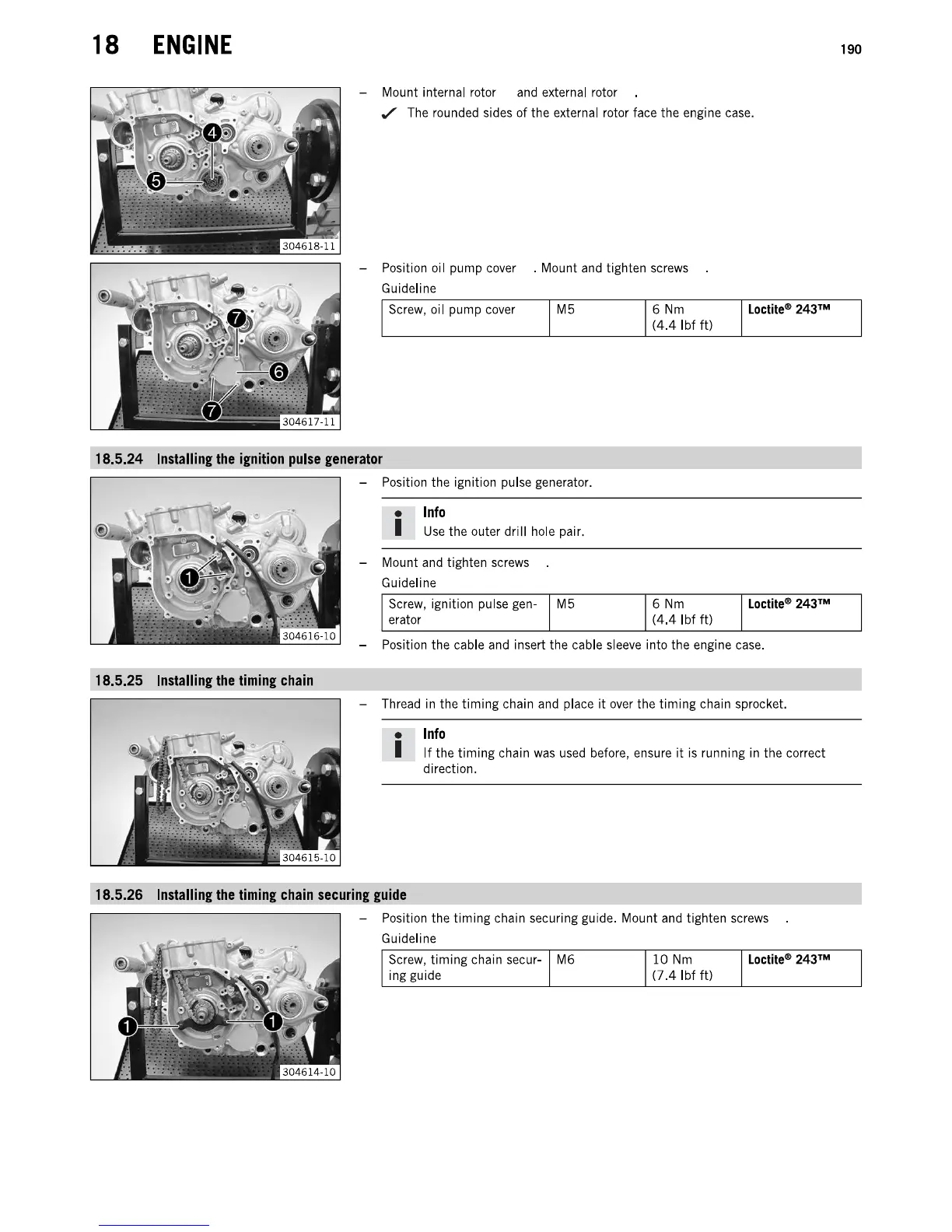

18 ENGINE
- Mount internal rotor and external rotor
,/ The rounded sides of the external rotor face the engine case.
- Position oil pump cover . Mount and tighten screws
Guideline
Screw, oil pump cover M5
6Nm
(4.4 Ibf It)
Loctile- 243
111
18.5.24 Installing the ignition pulse generator
18.5.25 Installing the timing chain
- Position the ignition pulse generator.
• Info
I Use the outer drill hole pair.
- Mount and tighten screws
Guideline
Screw, ignition pulse gen· M5
erator
6Nm Loctile- 243
111
(4.4 Ibf It)
- Position the cable and insert the cable sleeve into the engine case.
- Thread in the timing chain and place it over the timing chain sprocket.
• Info
I If the timing chain was used before, ensure it is running in the correct
direction.
18.5.28 Installing the timing chain securing guide
- Position the timing chain securing guide. Mount and tighten screws
Guideline
Screw, timing chain secur· M6
ing guide
10 Nm
(7.4lbflt)
190
