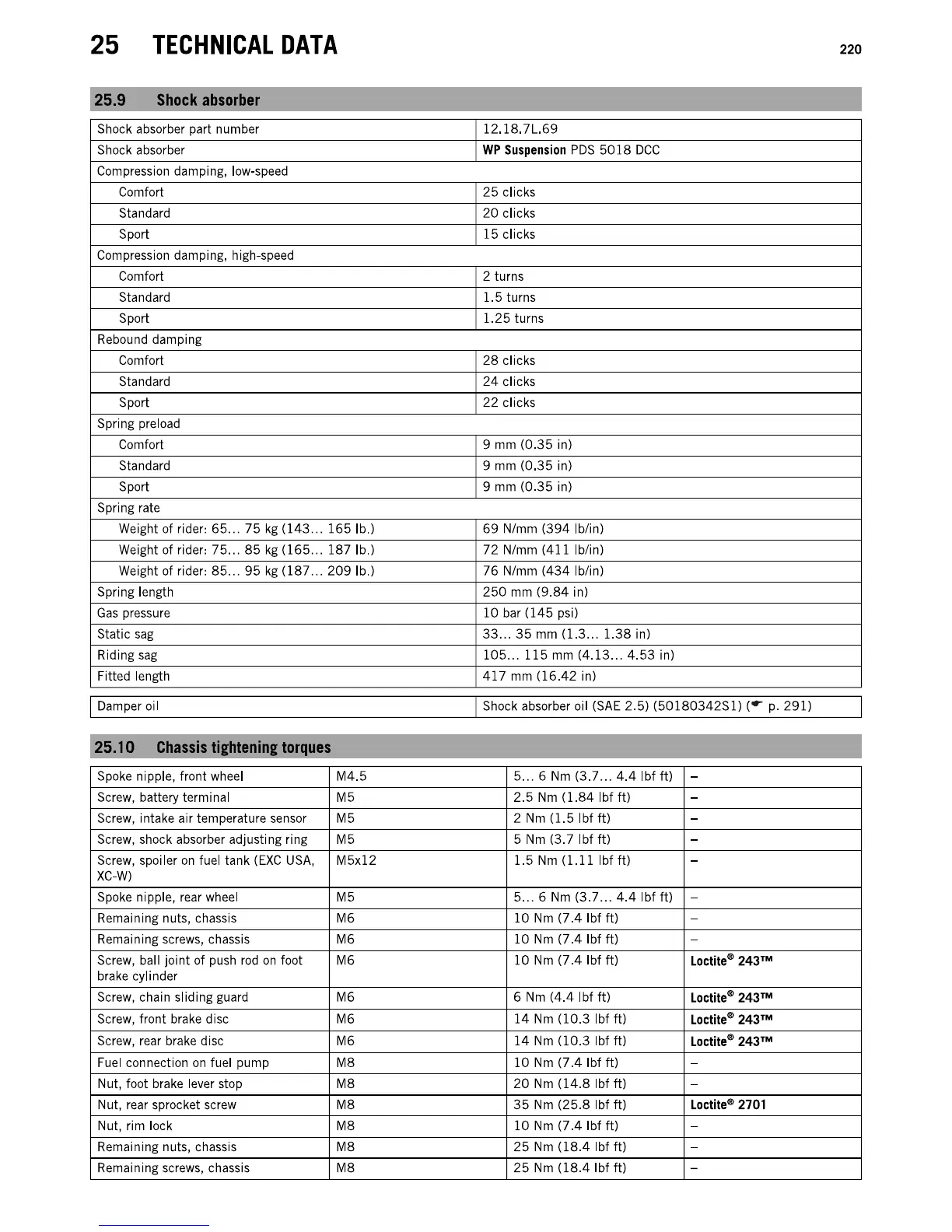

25 TECHNICAL DATA 220
25.9 Shack absorber
I
Shock absorber part number 12.18.7L.69
Shock absorber
WP Suspension PDS 5018 DCC
Compression damping, low-speed
Comfort 25 clicks
Standard 20 clicks
Sport
15 clicks
Compression damping, high·speed
Comfort 2 turns
Standard 1.5 turns
Sport
1.25 turns
Rebound damping
Comfort
28 clicks
Standard
24 clicks
Sport
22 clicks
Spring preload
Comfort 9 mm <0.35 in)
Standard
9 mm <0.35 in)
Sport
9 mm (0.35 in)
Spring rate
Weight
of rider: 65 ... 75 kg (143 ... 165 lb.) 69 Ntmm (394 Iblin)
Weight
of rider: 75 ... 85 kg (165 ... 187 Ib.l
72 Ntmm (411 Ibtin)
Weight
of rider: 85 ... 95 kg (187 ... 209 lb.) 76 Ntmm (434 Ibtin)
Spring length
250 mm (9.84 in)
Gas pressure
10 bar (145 psi)
Static
sag 33 ... 35 mm (1.3 ... 1.38 in)
Riding
sag
105 ... 115 mm (4.13 ... 4.53 in)
Fitted length
417 mm (16.42 in)
I Damper 011
I Shock absorber 011 (SAE 2.5) (50180342Sl) ( .. p. 291)
25.10
ChasslsllllrtlnlnllD !!I UII
I
Spoke nipple, front wheel M4.5
5 ... 6
Nm (3.7 ... 4.4 Ibf tt)
-
Screw, battery terminal M5
2.5 Nm (1.84 Ibf tt)
-
Screw, intake air temperature sensor
M5
2
Nm (1.5 Ibf tt)
-
Screw, shock absorber adjusting ring M5
5
Nm (3.7 Ibf tt)
-
Screw, spoiler on fuel tank (EXC USA,
M5x12
1.5
Nm (1.11 Ibf tt)
-
XC·W)
Spoke nipple, rear wheel M5
5 ... 6
Nm (3.7 ... 4.4 Ibf tt)
-
Remaining nuts, chassis M6
10 Nm (7.4 Ibf tt)
-
Remaining screws, chassis
M6
10 Nm (7.4 Ibf tt)
-
Screw, ball joint of push rod on foot M6
10 Nm (7.4 Ibf tt)
Lactite- 243™
brake cylinder
Screw, chain sliding guard M6
6
Nm (4.4 Ibf tt)
Loctite- 243™
Screw, front brake disc M6
14 Nm (10.3 Ibf tt)
Loctite- 243™
Screw, rear brake disc M6
14 Nm (10.3 Ibf tt)
Lactite- 243™
Fuel connection on fuel pump M8
10 Nm (7.4 Ibf tt)
-
Nut, foot brake lever stop M8
20 Nm (14.8 Ibf tt)
-
N ut, rear sprocket screw M8 35 Nm (25.8 Ibf tt)
Locti" 2701
Nut, rim lock M8
10 Nm (7.4 Ibf tt)
-
Remaining nuts, chassis M8 25 Nm (18.4 Ibf tt)
-
Remaining screws, chassis M8
25 Nm (18.4 Ibf tt)
-
