14 ELECTRICAL SYSTEM 122

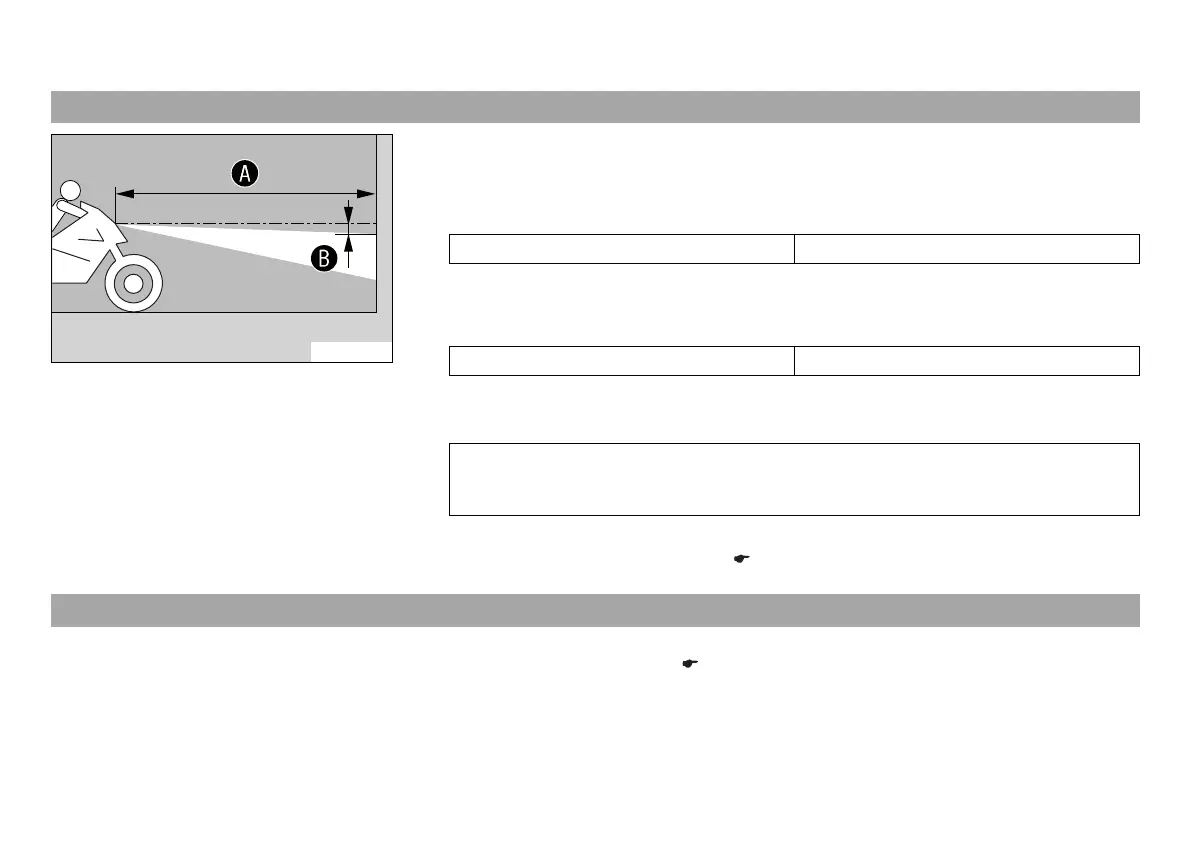

14.12 Checking the headlight setting
400726-10
– Position the vehicle upright on a horizontal surface in front of a light wall and make a
mark at the height of the center of the low beam headlight.
– Make another mark at a distance B under the first mark.
Guideline
Distance B 5 cm (2 in)
– Position the vehicle vertically at a distance A in front of the wall and switch on the low
beam.
Guideline
Distance A 5 m (16 ft)
– The rider, with luggage and passenger if applicable, now mounts the motorcycle.
– Check the headlight setting.
The light-dark boundary must lie exactly on the lower mark when the motorcycle is
ready to operate with the rider mounted along with any luggage and a passenger if
applicable.
» If the boundary between light and dark does not meet specifications:
– Adjust the headlight range. ( p. 122)
14.13 Adjusting the headlight range
Preparatory work
– Check the headlight setting. ( p. 122)
